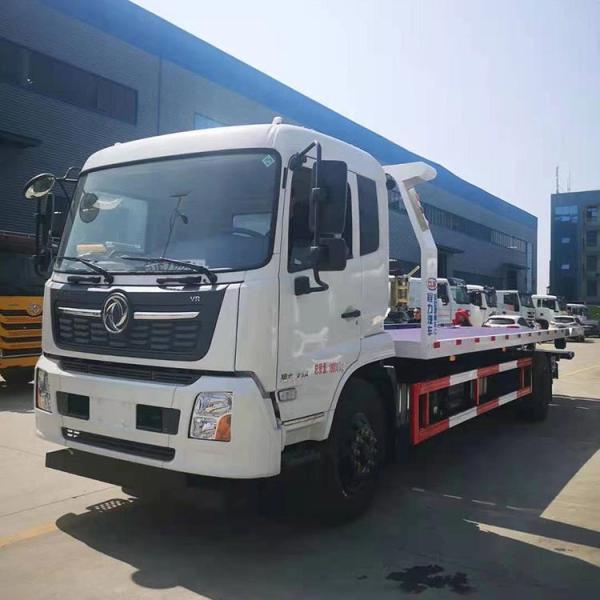

5tons 6tons 8tons Platform Towing Truck , Road Wrecker Vehicle
5tons 6tons 8tons Platform Towing Truck , Road Wrecker Vehicle
5tons 6tons 8tons Platform Towing Truck , Road Wrecker Vehicle
5tons 6tons 8tons Platform Towing Truck , Road Wrecker Vehicle
5tons 6tons 8tons Platform Towing Truck , Road Wrecker Vehicle
5tons 6tons 8tons Platform Towing Truck , Road Wrecker Vehicle
5tons 6tons 8tons Platform Towing Truck , Road Wrecker Vehicle
5tons 6tons 8tons Platform Towing Truck , Road Wrecker Vehicle
5tons 6tons 8tons Platform Towing Truck , Road Wrecker Vehicle
5tons 6tons 8tons Platform Towing Truck , Road Wrecker Vehicle
Specifications
Transmission Type :
Manual
Rating Under-Pulling Capacity :
6000kg
Flatbed Dimensions :
6000*2400mm
Crane Max Lifting Capacity :
8000kg
Towing Tonnage :
6ton
Length of Steel Cable :
35m
Transport Package :
Bulk, RO-RO, Container
Place of Origin :
CHINA
Brand Name :
CLW
MOQ :
1
Price :
15000-35000 per unit
Max. Loading Weight :
8000kg
Production Capacity :
500unit Per Month
Model NO. :
CLW5126TQL
Specification :
5ton, 6ton, 8ton
Fuel :
Diesel
Condition :
New
Winch Rating Pulling Capacity :
6000kg
Crane Max Lifting Height :
14m
Emission Standard :
Euro 5
Gearbox :
6 Forward & 1 Reverse
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Brand :
Dongfeng
Engine :
180HP
Delivery Time :
30 Days
HS Code :
8705909990
Origin :
Suizhou, China
Name :
Wrecker Truck
Crane Max Working Range :
11.5m
Bearing Capacity :
5ton, 6ton, 8ton
Trademark :
CLW
Description

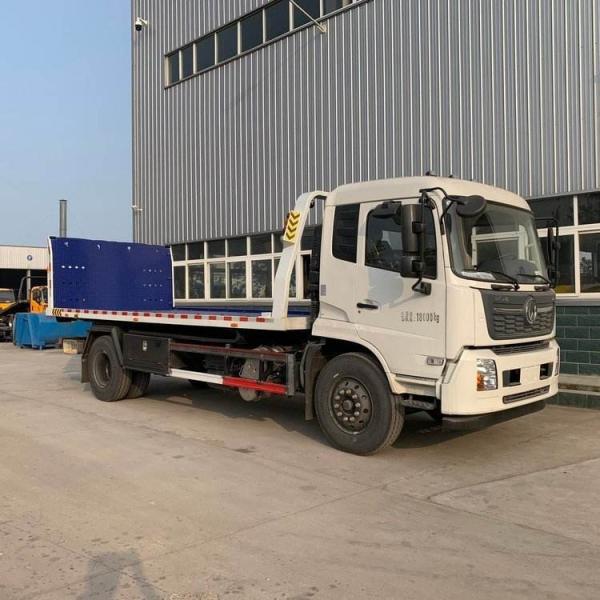

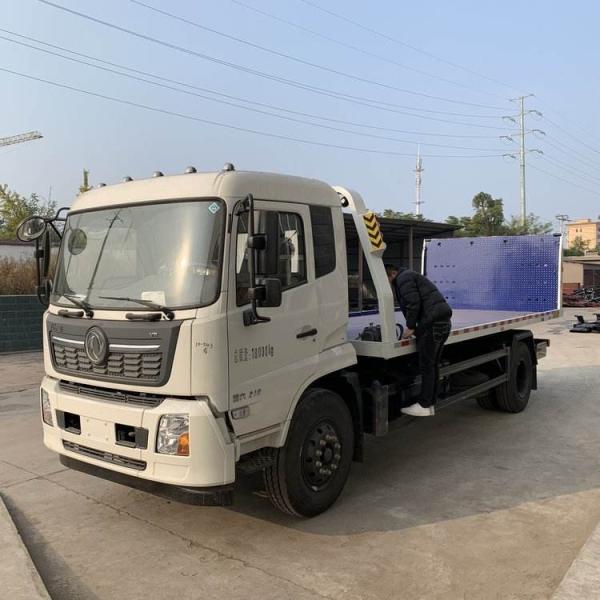

Dongfeng 5tons 6tons 8tons Road Wrecker Road Platform Towing Wrecker for Sale
Product Description:

1. Purpose of 4ton flatbed tow truc: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.

2. Optional brand of 4ton flatbed tow truc:howo,Dongfeng,JAC,JMC,Foton,Shacman...

3. Spare parts of 4ton flatbed tow truc: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate

4. Capacity range of flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton

General Technical Parameters
Overall Dimension 9440x2480x2760 (mm)
Gross Vehicle Weight 12495kg
Curb Weight 10000kg

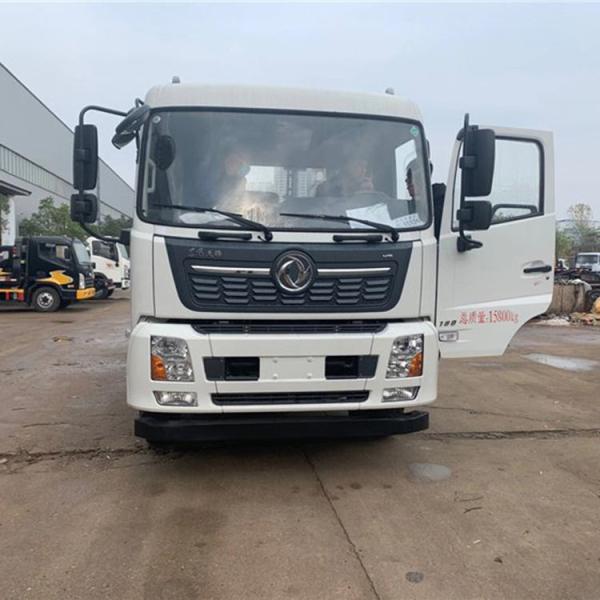

Chassis Specification

Chassis Parameters

 Chassis Brand Dongfeng
Cabin Row and half, Right Hand Driving

Engine

 Model ISD180 50, 4 Cylinders
Power 132KW/180HP
Emission Standard EURO V
Displacement 4.5L
Fuel Type Diesel
Gearbox 6 Forward & 1 Reverse Gear
Front and Rear Axle Load 4.5T/9T
Wheel Base 4700(mm)
Overhang( Front/Rear) 1015/2450(mm)
Angle(Approach/departure) 24/9(°)
Brake System Air Brake
Steering Gear Power Assistant
Tire 9.00R20, 6 Pieces with 1 Spare Tire
Maximum Speed 110(km/h)
Superstructure

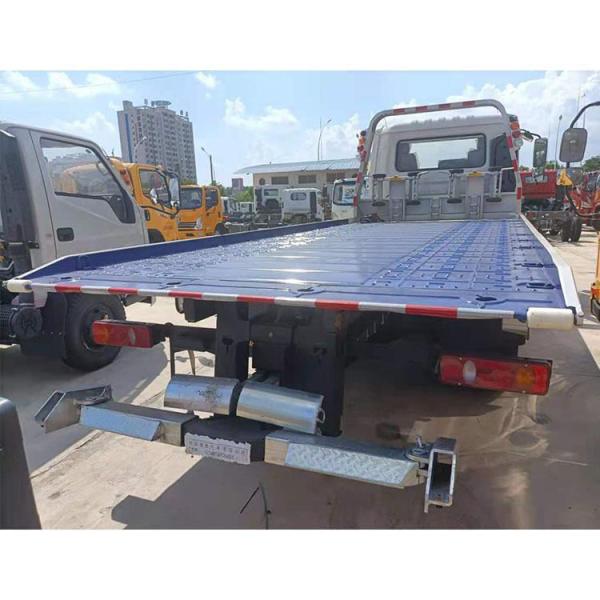

Flatbed

 Dimensions 6000x2400 (mm)
Max. Loading Weight 8000(kg)
Operating Stroke 2700 (mm)
Min. Angle of Slope 8(°)
Platform Height from the Ground 1070(mm)
Winch

Winch

 Quantity 1pc
Winch Rating Pulling Capacity 6000 (kg)
Length of Steel Cable 35 (m)
Hoisting Organ

Hoisting Organ

 Rating Under-Pulling Capacity 6000 (kg)
Rating Under-Hoisting Capacity 2000 (kg)
Fully Extended Max Under-Hoisting Capacity 1600 (kg)
Max Under-Hoist Useful Length 1640 (mm)
Boom Type Telescopic Boom

Remarks

 1. Equiped with One Set of Auxiliary Wheels
2. Bandages 4pcs
3. Yellow Warning Lamp 1pc
4. Double Side Hydraulic Operation
5. Can Tow 2 Cars
6. Outrigger 2pcs

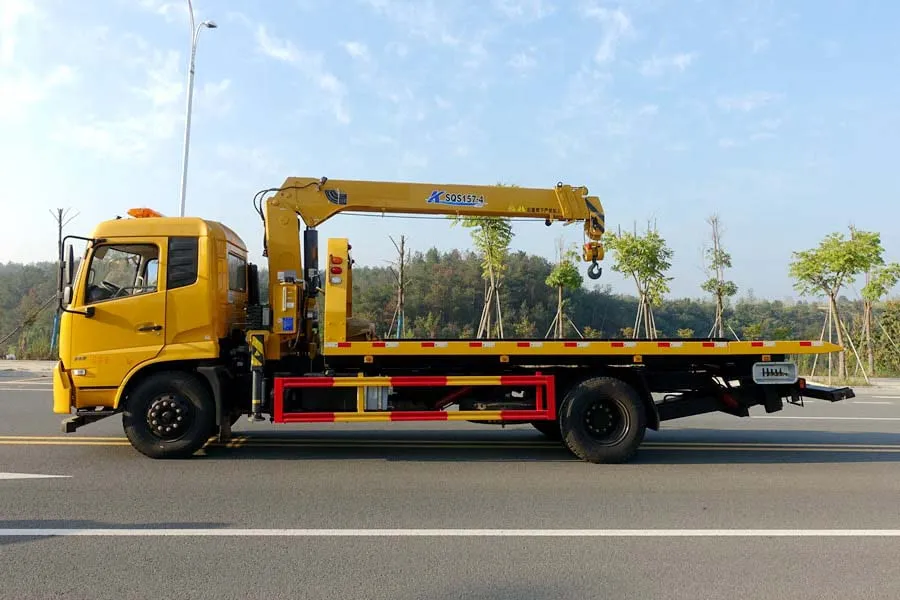

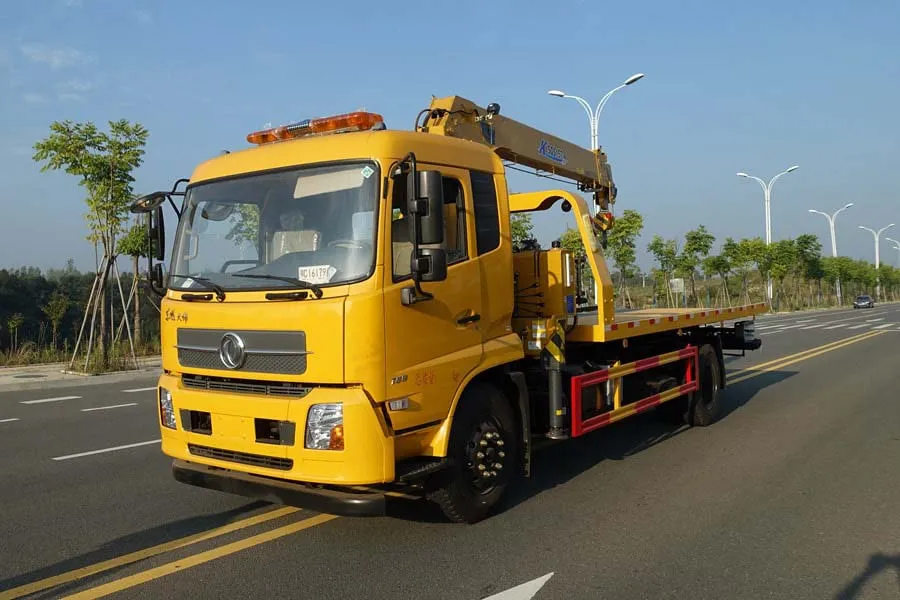

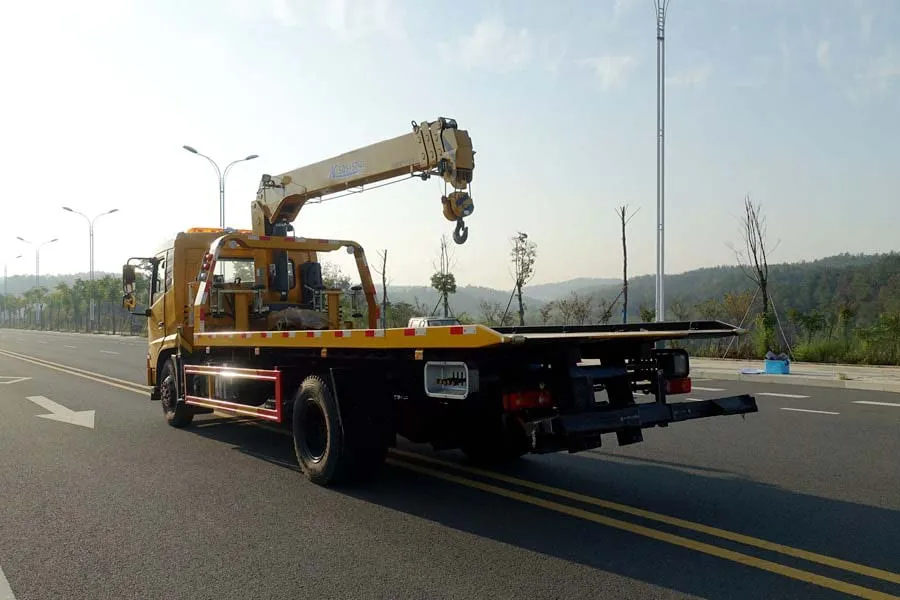

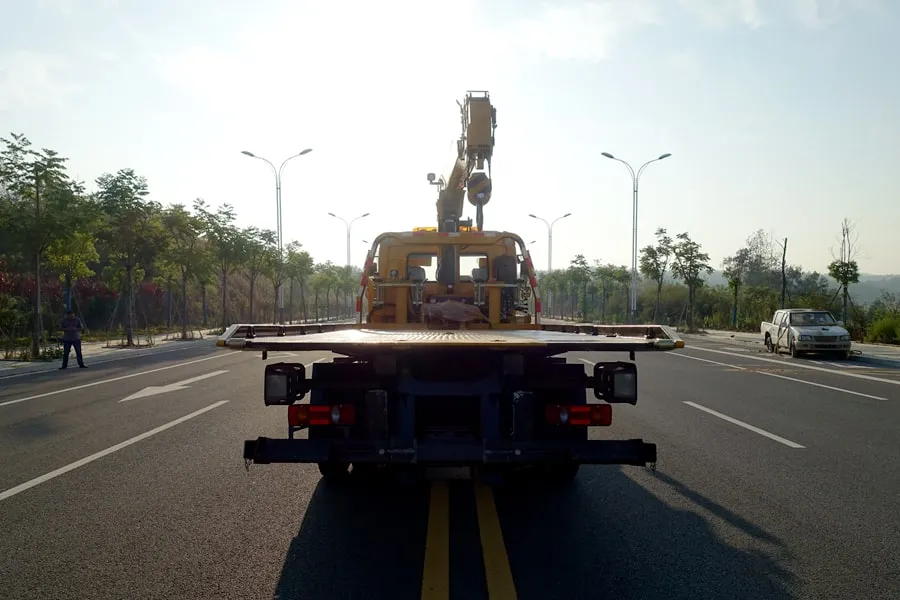

Parameters of the Crane
Item Unit Value
Max Lifting Capacity kg 8000@2.5m
Max lifting height M 14
Max working range M 11.5
Max Lifting Moment T.M 20
Recommend Power kw 27
Max Oil Flow of Hydraulic System L/min 55
Max Pressure of Hydraulic System Mpa 27
Oil Tank Capacity L 160
Crane Weight kg 3315
Installation Space mm 1200
Rotation Angle ° 360° All Rotation
