Specifications
Fuel :
Diesel
Wrecker Type :
One-Towing-One, One-Towing-Two
Emission Standard :
Euro 2
Hydraulic Systemht :
Famous International Brand
Name :
Flatbed Towing Truck
Max Lifting Weight :
4tons; 5tons; 6tons
Brand :
Dongfeng
Engine :
130HP
Place of Origin :
CHINA
Brand Name :
CLW
Chassis Brand :
Dongfeng, HOWO, Foton, JAC, etc.
Origin :
Suizhou, China
Condition :
New
Steering :
LHD, Rhd, Left Hand Drive, Right Hand Drive
MOQ :
1
Price :
15000-35000 per unit
Cabin :
2~3 Personn with A/C
Wheel Base :
3815mm
Specification :
4t, 4tons, 4ton, 4T, 5t, 5tons, 5ton, 5T, 8tons
Model NO. :
CLW5076BGV
Truck Overall Size :
7280*2350*2400mm
Winch Rope :
25m, 25meters
Trademark :
CLW
HS Code :
8705909990
Production Capacity :
500unit Per Month
Bearing Capacity :
Medium
Towing Tonnage :
4ton
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Transmission Type :
Manual
Transport Package :
Bulk, RO-RO, Container
Description

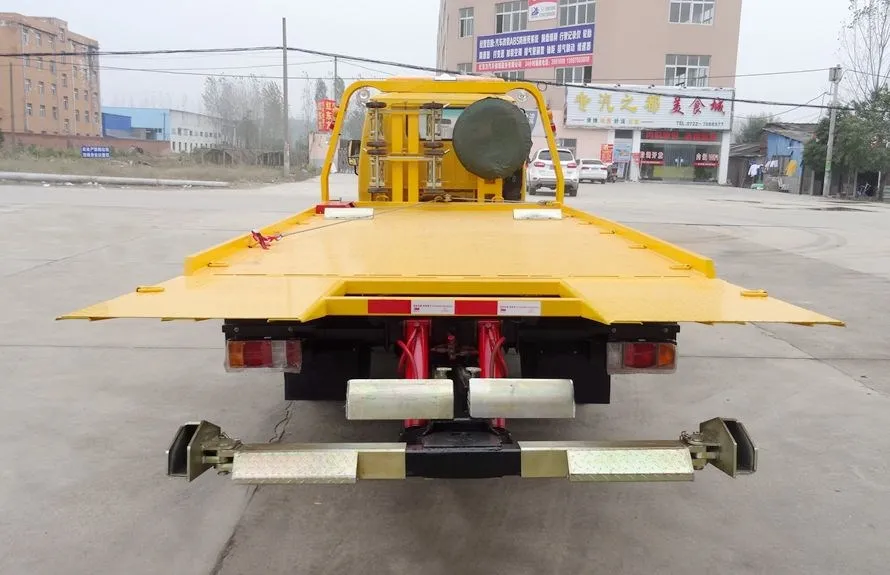

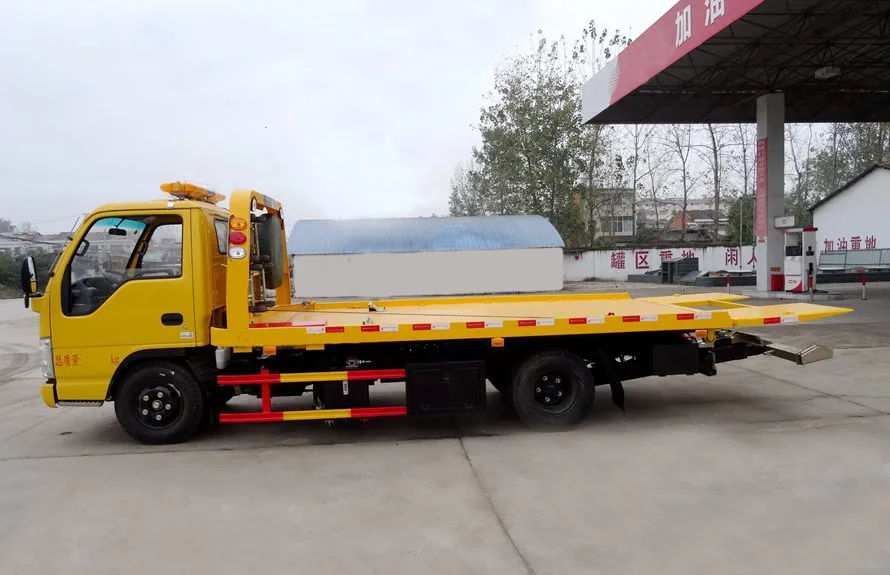

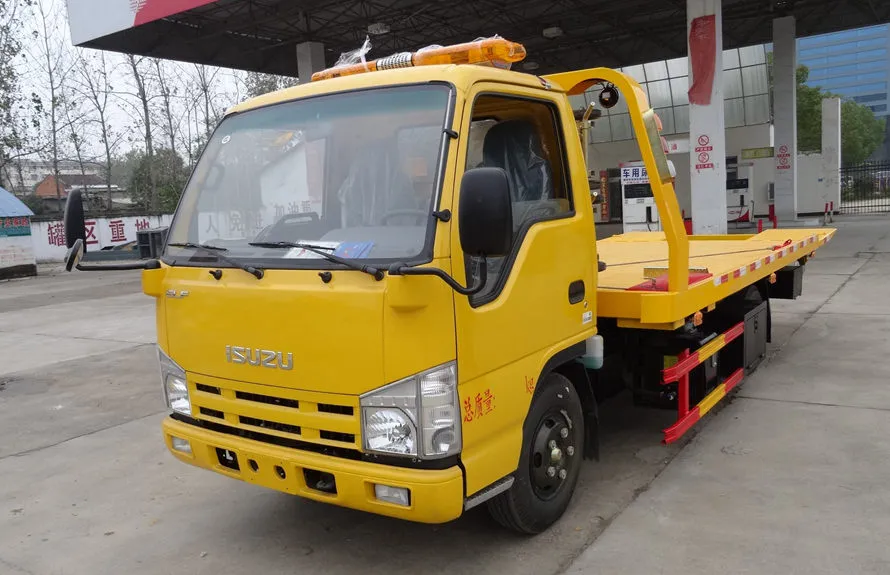

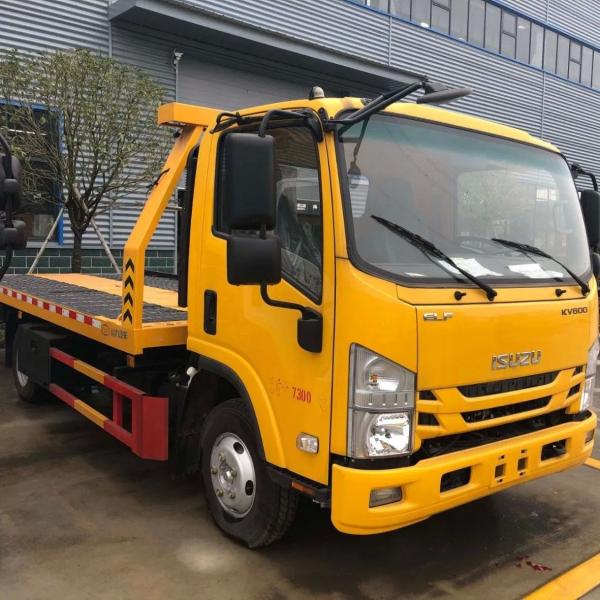

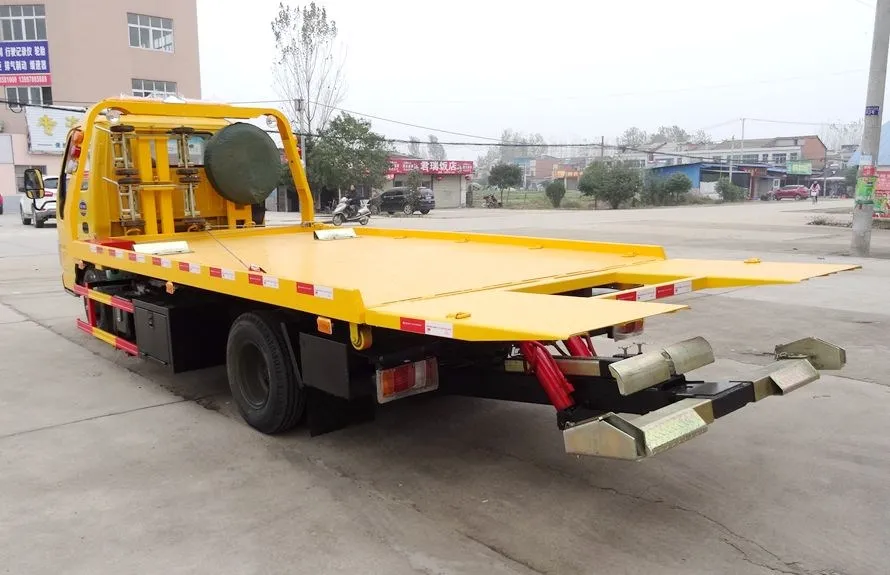

Japan 5ton Flatbed Towing Rollback Car Carrier Recovery Full Landing Flat Bed 4ton Wrecker Tow Truck
Product Description

1) 5Tons Wrecker Truck for Towing Broken Cars or Equipments.

2) Dongfeng Brand Chassis for Euro 2 or Euro 3 Emission

3) Spare parts of 5tons wrecker tow truck:

  • Italy brand multi-way valve and balance valve;
  • Gernamy Roxroth technology hydraulic cylinder and joint;
  • International Brand Sealing elements;
  • Strengthed Checked platform.
Product Specification
General Technical Specification
Overall Dimension 7280*2350*2400(mm)
Gross Vehicle Weight 7300 (Kg)
Curb Weight 4280 (Kg)
Chassis Specification
Chassis Brand 600P
Drive model 4*2
Cabin Single, Left Hand Drive

Engine

 Model 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
Power 96KW/130HP
Emission standard EURO 4
Displacement 2999(ml)
Fuel type Diesel
Gearbox 5 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance
Brake System Oil Brake
Wheel Base 3815(mm)
Front/Rear Axle Loading 3000/4800(Kg)
Approach/Departure Angle 24/12(°)
Tire 7.50R16, 6pcs + 1 spare tire
Max Driving Speed 98(km/h)
Superstructure Specification

Platform Organ

 Dimension 5600*2350(mm)
Rear manual flip board length 1200(mm)
Material Q235 carbon steel
Max Loading capacity 4000(kg)

Winch

 Quantity 1
Winch rating towing capacity 4000(kg)
Length of steel rope 25(m)
Speed of winch 3.23~8 (m/min)
Other parts Auxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc.
Options Caution light, air condition,inlet valve.
