Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Winch Rating Pulling Capacity :
4000kg
Bearing Capacity :
Medium
Condition :
New
Tire :
7.00r16
Logo :
as Per Customer's Request
Trademark :
CLW
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
HS Code :
8705909990
Name :
Wrecker Truck
Towing Tonnage :
4ton
Production Capacity :
500unit Per Month
Brand :
JAC
Winch Rope :
25 Meters
Origin :
Suizhou, China
Specification :
6000x2500x3300 mm
MOQ :
1
Price :
15000-35000 per unit
Flatbed Dimension :
4200*2320mm
Max. Loading Weight :
4000kg
Delivery Time :
30 Days
Wheel Base :
3308 mm
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Transmission Type :
Manual
Fuel :
Diesel
Hydraulic Tailgate :
1200 mm
Emission Standard :
Euro 4
Description

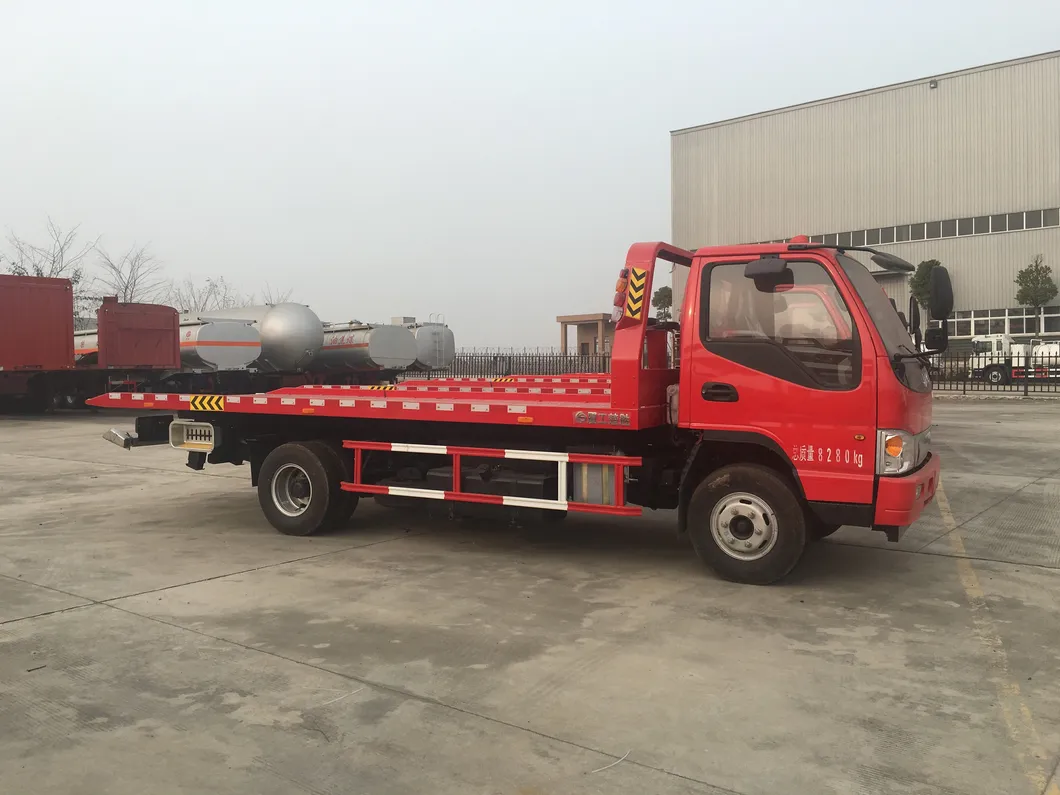

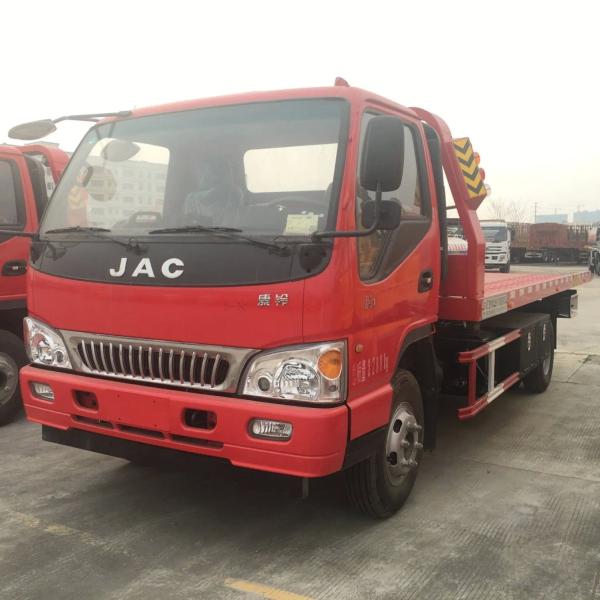

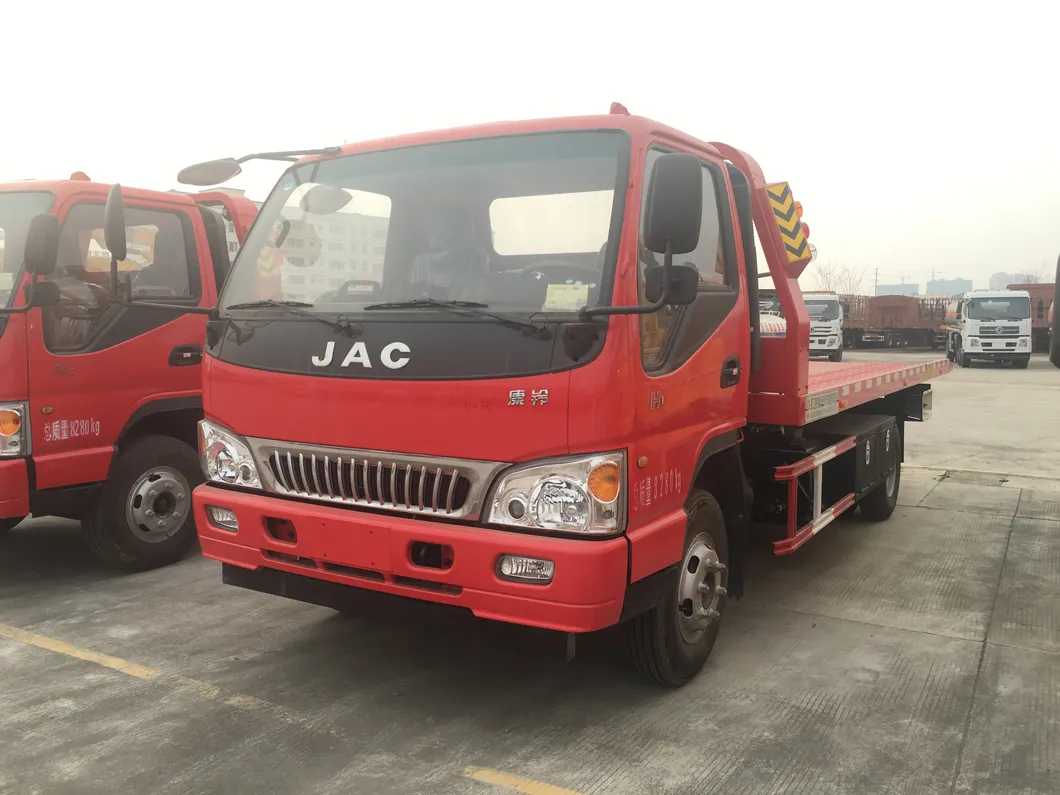

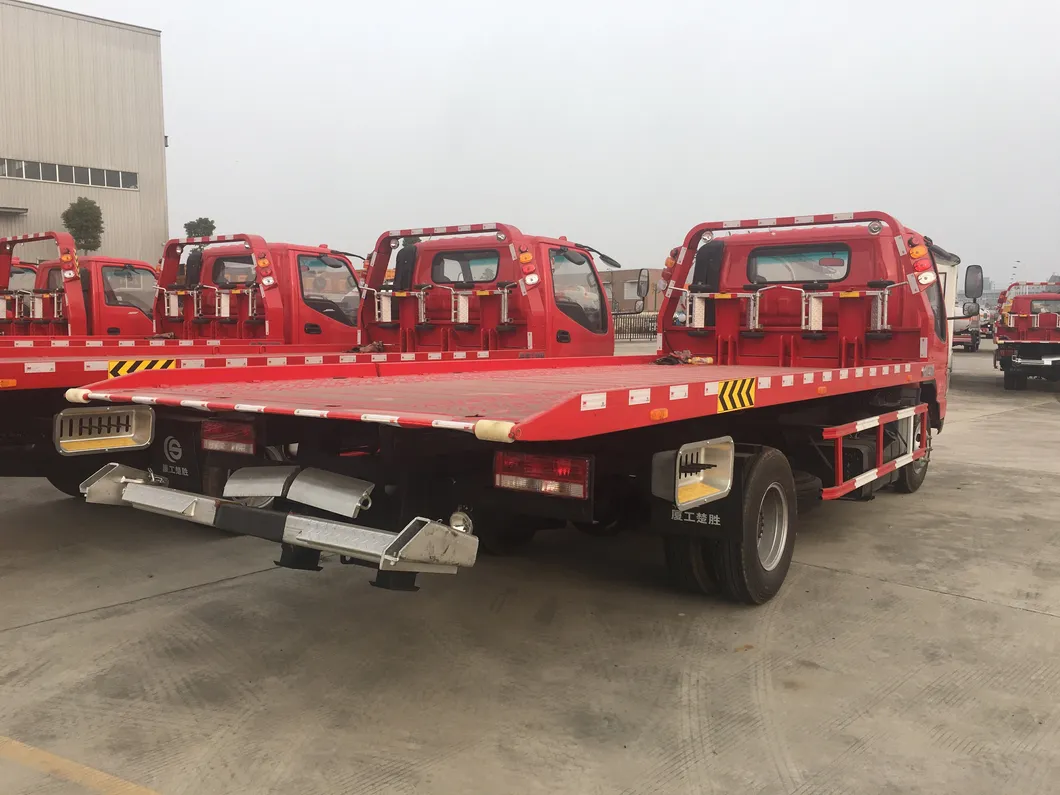

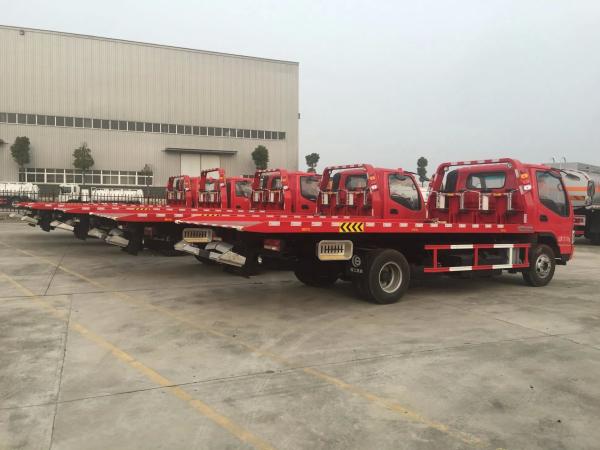

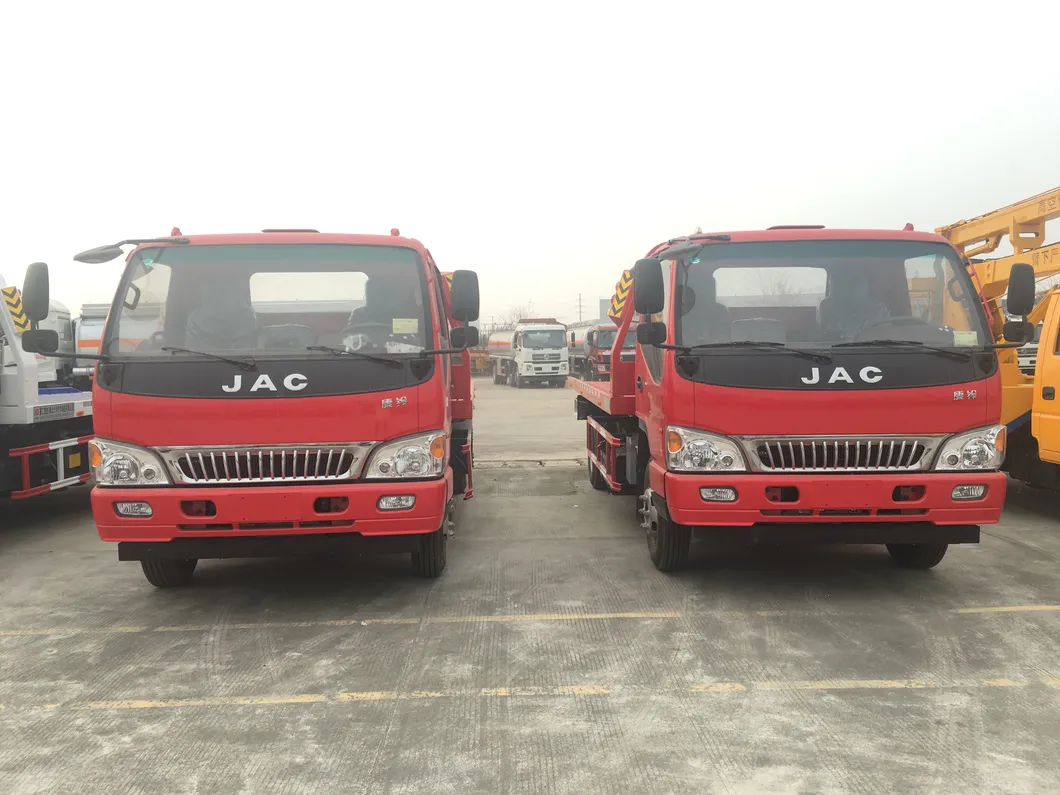

One Carry Two Flatbed Road Wrecker Truck 5tons Flatbed Tow Truck Road Rescue Vehicle

Product Description:

  • Purpose of 4ton flatbed tow truc: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
  • Optional brand of 4ton flatbed tow truc:howo,Dongfeng,JAC,JMC,Foton,Shacman.
  • Spare parts of 4ton flatbed tow truc: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
  • Capacity range of flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
  • The customers can choose to install the crane.
General Technical Parameters
Overall Dimension 5995x2300x2250 (mm)
Gross Vehicle Weight 4495kg
Curb Weight 3800kg
Chassis Specification

Chassis Parameters

Chassis Brand FOTON
Cabin Single, Left Hand Driving

Engine

Model 4 Cylinders
Power 88 KW/120HP
Emission Standard EURO II
Displacement 2771ML
Fuel Type Diesel
Gearbox 5 Forward & 1 Reverse Gear
Front and Rear Axle Load 3T/6T
Wheel Base 3308(mm)
Overhang( Front/Rear) 1015/2450(mm)
Angle(Approach/departure) 24/9(°)
Brake System oil brake
Steering Gear Power Assistant
Tire 7.00R16, 6 Pieces with 1 Spare Tire
Maximum Speed 90 (km/h)
Superstructure

Flatbed

Dimensions 4200x2320 (mm)
Max. Loading Weight 4000(kg)
Operating Stroke 2700 (mm)
Min. Angle of Slope 8(°)
Platform Height from the Ground 1070(mm)

Winch

Quantity 1pc
Winch Rating Pulling Capacity 4000 (kg)
Length of Steel Cable 25 (m)

Hoisting Organ

Rating Under-Pulling Capacity 6000 (kg)
Rating Under-Hoisting Capacity 2000 (kg)
Fully Extended Max Under-Hoisting Capacity 1600 (kg)
Max Under-Hoist Useful Length 1640 (mm)

Remarks

1. Equiped with One Set of Auxiliary Wheels
2. Bandages 4pcs
3. Yellow Warning Lamp 1pc
4. Double Side Hydraulic Operation
5. Can Tow 2 Cars
