Specifications

Place of Origin :

CHINA

Brand Name :

CLW

MOQ :

Price :

15000-35000 per unit

Logo :

as Per Customer's Request

Gearbox :

5 Forward & 1 Reverse

Production Capacity :

500unit Per Month

Wheel Base :

3308 mm

Towing Tonnage :

4ton

Brand :

Foton

Wire Rope :

25m

Max. Loading Weight :

4000kg

Condition :

New

Tire :

7.00r16

Model NO. :

CLW5368MN

Fuel :

Diesel

Delivery Time :

30 Days

Winch Rating Pulling Capacity :

4000kg

Specification :

6000x2500x3300 mm

Transport Package :

Bulk, RO-RO, Container

Bearing Capacity :

Medium

Model Number :

CLW

Payment Terms :

50% Deposit,Balance should be paid before ship out

Supply Ability :

10unit per month

HS Code :

8705909990

Name :

Underlift Tow Truck

Transmission Type :

Manual

Hydraulic Tailgate :

1200 mm

Origin :

Suizhou, China

Trademark :

CLW

Emission Standard :

Euro 4

Chassis Brand :

Dongfeng, HOWO, Foton, JAC, etc.

Flatbed Dimension :

4200*2320mm

Description

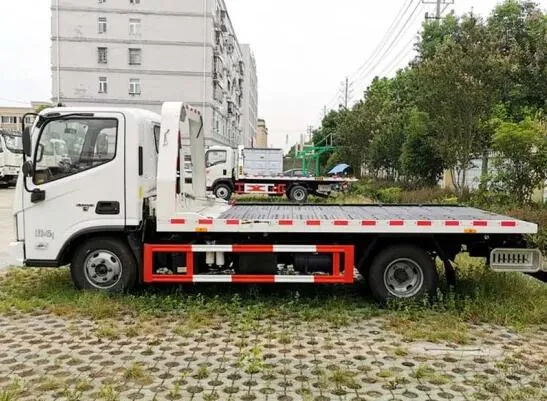

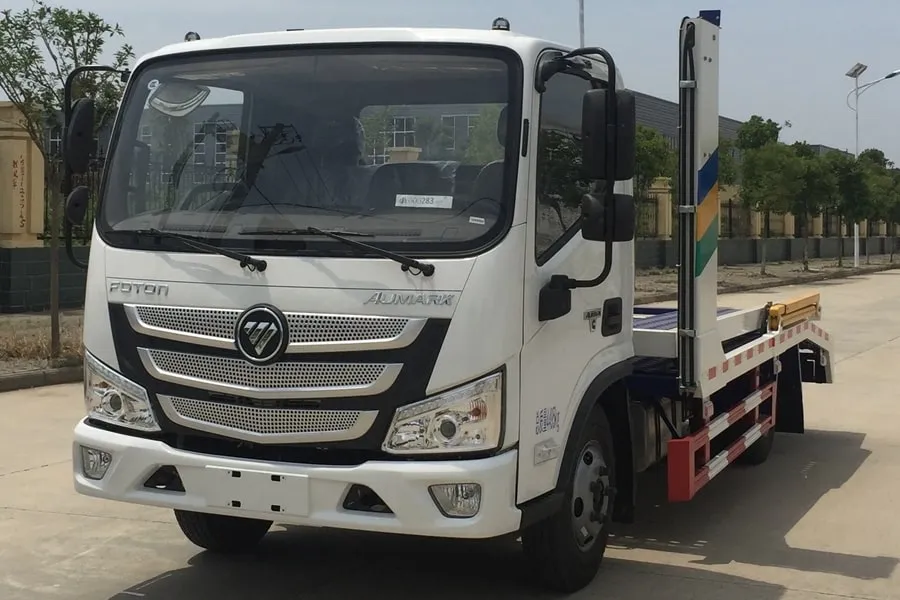

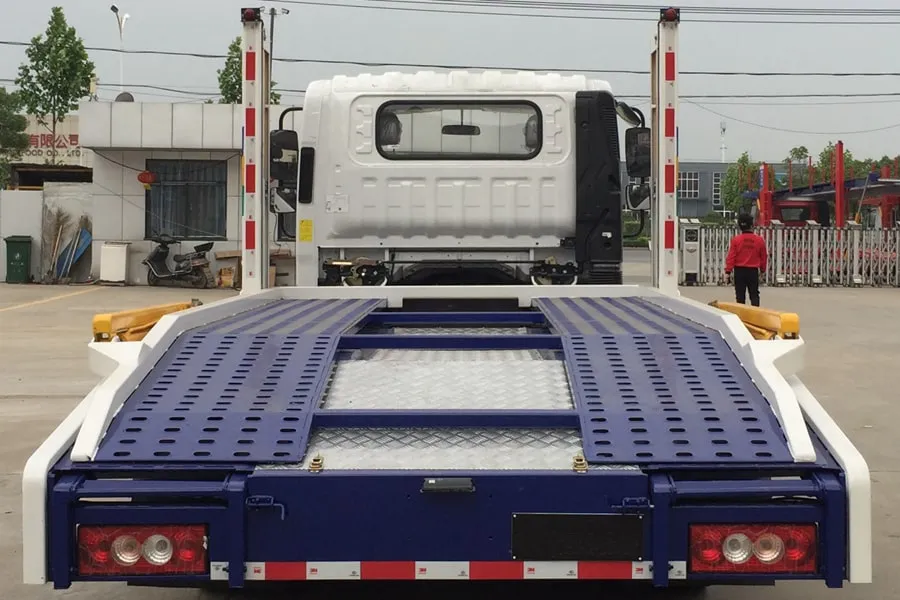

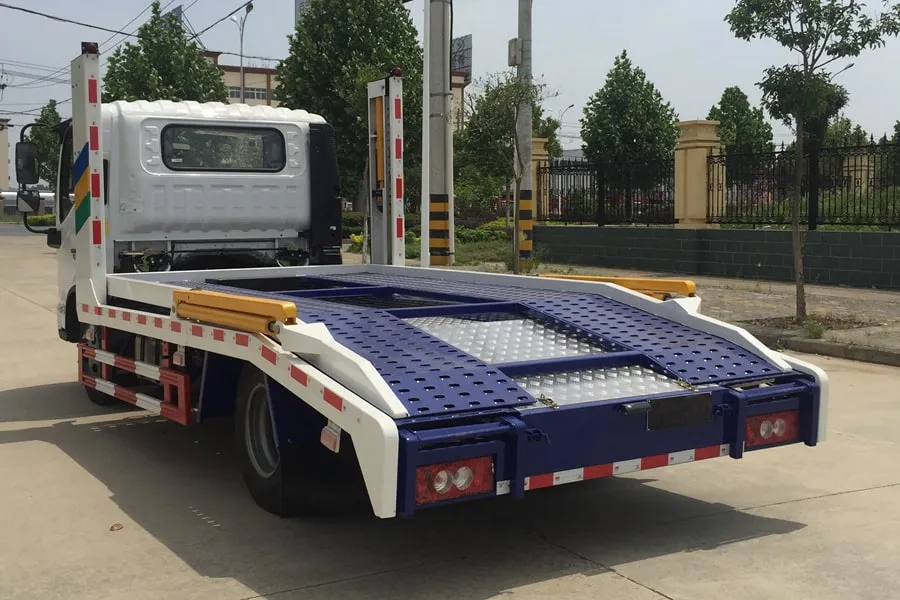

FOTON Wrecker Tow Truck Underlift Wrecker 4X2Towing Truck

Product Description:

Purpose of 4ton flatbed tow truc: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
Optional brand of 4ton flatbed tow truc:howo,Dongfeng,JAC,JMC,Foton,Shacman.
Spare parts of 4ton flatbed tow truc: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
Capacity range of flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
The customers can choose to install the crane.

General Technical Parameters
Overall Dimension			5995x2300x2250 (mm)
Gross Vehicle Weight			4495kg
Curb Weight			3800kg
Chassis Specification
Chassis Parameters	Chassis Brand		FOTON
	Cabin		Single, Left Hand Driving
	Engine	Model	4 Cylinders
		Power	88 KW/120HP
		Emission Standard	EURO II
		Displacement	2771ML
		Fuel Type	Diesel
	Gearbox		5 Forward & 1 Reverse Gear
	Front and Rear Axle Load		3T/6T
	Wheel Base		3308(mm)
	Overhang( Front/Rear)		1015/2450(mm)
	Angle(Approach/departure)		24/9(°)
	Brake System		oil brake
	Steering Gear		Power Assistant
	Tire		7.00R16, 6 Pieces with 1 Spare Tire
	Maximum Speed		90 (km/h)
Superstructure
Flatbed	Dimensions		4200x2320 (mm)
	Max. Loading Weight		4000(kg)
	Operating Stroke		2700 (mm)
	Min. Angle of Slope		8(°)
	Platform Height from the Ground		1070(mm)
Winch	Quantity		1pc
	Winch Rating Pulling Capacity		4000 (kg)
	Length of Steel Cable		25 (m)
Hoisting Organ	Rating Under-Pulling Capacity		6000 (kg)
	Rating Under-Hoisting Capacity		2000 (kg)
	Fully Extended Max Under-Hoisting Capacity		1600 (kg)
	Max Under-Hoist Useful Length		1640 (mm)
Remarks	Equiped with One Set of Auxiliary Wheels Bandages 4pcs Yellow Warning Lamp 1pc Double Side Hydraulic Operation Can Tow 2 Cars

Foton 4X2 Flatbed Towing Truck , 4ton Underlift Tow Truck Logo Customized
