OEM ODM COFDM Video Transmitter For Long Range Video Transmission With AV HDMI Input
OEM ODM COFDM Video Transmitter For Long Range Video Transmission With AV HDMI Input
OEM ODM COFDM Video Transmitter For Long Range Video Transmission With AV HDMI Input
OEM ODM COFDM Video Transmitter For Long Range Video Transmission With AV HDMI Input
Specifications
Brand Name :
Hincn
Model Number :
HCT531
Place of Origin :
China
MOQ :
1 pc
Price :
US$2,139~US$2,319
Payment Terms :
T/T,Western Union,MoneyGram,D/P,D/A,L/C
Supply Ability :
1,799 sets/ month
Delivery Time :
7~14 working days
Packaging Details :
carton package
Wireless modulation :
COFDM
Encode :
H.264/ H.265
Encryption :
AES256
Video input :
AV/ HDMI/SDI
Bitrates :
0.5Mbps to 31.67Mbps
OEM/ ODM :
Support
RF Power :
10W/20W, more can be customized
Description
OEM ODM COFDM Video Transmitter for Long Range Video Transmission
High-power 10W/20W COFDM wireless transmitter supporting AV and HDMI 1080P input with advanced wireless transmission capabilities.
Key Features
  • COFDM technology with strong interference resistance
  • Support for H.264/H.265 video compression
  • Full HD resolution, 1080p/i @60fps
  • Simultaneous support for two channels of video input
  • AES256 encryption transmission with high-grade data security
  • Support for high-speed mobile and NLOS long range HD wireless video transmission
Technical Specifications
Product Information
Product Name OEM ODM COFDM Video Transmitter For Long Range Video Transmission With AV HDMI Input
Model Number HCT531
Modulation Specifications
Wireless Modulation COFDM (DVB-T)
Carriers 2K
Bandwidth Configurable from 1MHz to 8MHz, step by 1KHz
FEC 1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval 1/32, 1/16, 1/8, 1/4
Constellation QPSK, 16QAM, 64QAM
Bitrates 0.5Mbps to 31.67Mbps
RF Specifications
Transmission Power 10W (40dBm) or 20W (43dBm)
Frequency 200MHz~860MHz
Tuning Step Size 1KHz
Video and Audio Specifications
Video Input HDMI or CVBS, auto-detected after system start-up. Optional: two channel video input/encoding/transmit simultaneously
Video Formats 1080@60P, 1080@50P, 1080@30P, 1080@25P, 1080@24P, 1080@60I, 1080@50I, 1080@30I, 720@60P, 720@50P, 720@30P, 720*480 60I (NTSC), 720*576 50I (PAL)
Video Coding H.264/H.265
Audio Input Embedded HDMI or analog audio
Audio Coding AAC, 16bit, stereo, 32Kbps
Encryption AES256
Additional Specifications
Control Method Through configuration panel, PC or other devices via Control UART, comprehensive transmitter settings can be achieved
Storage Temperature Range -40° to +80°C
Size 180*136*38mm
Weight 906g
Input Voltage 28V
Product Overview
This COFDM video transmitter is suitable for video output from high-definition or standard-definition cameras. It employs COFDM modulation and H.264/H.265 encoding technology, featuring excellent anti-interference performance. It supports high-speed movement and low-latency video and audio transmission under non-line-of-sight conditions. The high power of 10W/20W enables reliable transmission of high-definition videos over long distances.

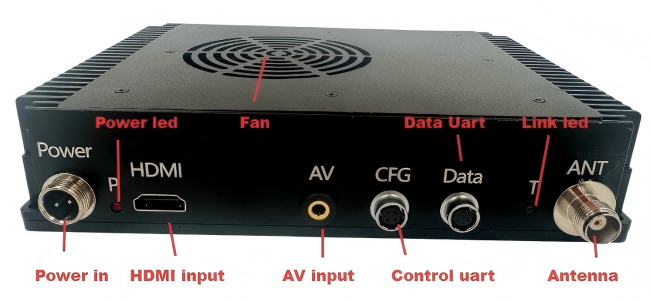

Input/Output Interface
HD Video Input HDMI Type-A connector
Composite Video Input 3.5mm earphone connector
UART Data YC8-3 connector, TTL3.3V by default (optional RS232)
TTL UART Control YC8-4 connector, TTL 3.3V
Power In GX12-2 connector
RF Output TNC female
OEM ODM COFDM Video Transmitter For Long Range Video Transmission With AV HDMI Input
Frequently Asked Questions
Does your 10 watts/20 watts COFDM HD video transmitter support other frequencies, like 1.2G, 1.4G, 1.8G?
The transmitter frequency can be 160MHz~2700MHz, but our COFDM wireless receiver only supports 170~860MHz. For 1.2G, 1.4G, 1.8G, a frequency down converter is required at the receiver end.
Does this COFDM HD video transmitter support SDI video input?
Yes, We have COFDM wireless video transmitters support HDMI, SDI, CVBS AV, IP Ethernet RJ45 and AHD video input.
About Hincn Limited
Hincn Limited is a Hong Kong company specializing in HD video wireless communication solutions, founded in 2018. Our research and production center is located in Shenzhen and was established in 2015. We have a total of 9 employees, including 3 programmers and 2 engineers. Our company has a long-term cooperative relationship with ADI, Xilinx, Altera and Morningcore. We are the third-party design partner for both ADI and Morningcore.
OEM ODM COFDM Video Transmitter For Long Range Video Transmission With AV HDMI Input
