COFDM Wireless Signal Transmitter And Receiver Video Systems With AES256
COFDM Wireless Signal Transmitter And Receiver Video Systems With AES256
COFDM Wireless Signal Transmitter And Receiver Video Systems With AES256
COFDM Wireless Signal Transmitter And Receiver Video Systems With AES256
Specifications
Brand Name :
Hincn
Model Number :
HCT531
Place of Origin :
China
MOQ :
1 pc
Price :
US$1,955~US$2,999
Payment Terms :
T/T,Western Union,MoneyGram,D/P,D/A,L/C
Supply Ability :
1,997 sets/ month
Delivery Time :
7~14 working days
Packaging Details :
carton package
Wireless modulation :
COFDM
Transmission power :
10W(40dBm) or 20W(43dBm)
Frequency :
160MHz~2700MHz
Encryption :
AES256
Size :
180*136*38mm
Bandwidth :
1MHz~8MHz
Encoding :
H.264/H.265
Hd interface :
HDMI or HD-SDI
Description
COFDM Wireless Signal Transmitter and Receiver Video Systems with AES256
This COFDM wireless signal transmitter delivers high-power, long-range wireless video transmission. Built on COFDM modulation technology with H.264/H.265 compression and AES256 encryption, it ensures stable, reliable, real-time HD video transmission even in challenging environments with high-speed movement and urban building occlusion.
Key Features
  • COFDM modulation and H.264/H.265 video compression
  • Full HD resolution, 1080p/i @60fps
  • Supports two channel videos simultaneously (optional)
  • AES256 encryption for enhanced security
  • Modular design with high integration
  • Stable signal transfer in NLOS and high-speed motion conditions
  • Adjustable working frequency, bandwidth, bitrates, and RF power
Product Specifications
Product Name COFDM Wireless Signal Transmitter and Receiver Video Systems with AES256
Wireless Modulation COFDM
Transmission Power 10W (40dBm) or 20W (43dBm)
Frequency 160MHz~2700MHz
Encryption AES256
Size 180*136*38mm
Bandwidth 1MHz~8MHz
Product Overview
Designed for use with HD or SD cameras, this COFDM wireless signal transmitter provides superior miniature wireless video transmission for Point of View Cameras, UAV/UGV/Body Cams/Concealments, and sports cameras. Featuring HDMI or AV inputs with COFDM modulation technology and H.264/H.265 encoding, it delivers complete video and audio transmission in high-speed motion and NLOS (non-line of sight) conditions with low latency.
The HCT531 COFDM wireless signal transmitter provides up to 10W or 20W of power in a compact metal case weighing less than 910 grams, ensuring long-range, reliable HD video transmission.
Technical Specifications
HD Video Input HDMI Type-A connector
Composite Video Input 3.5mm earphone connector
UART Data YC8-3 connector, TTL3.3V by default (optional RS232)
TTL UART Control YC8-4 connector, TTL 3.3V
Power Input GX12-2 connector
RF Output TNC female

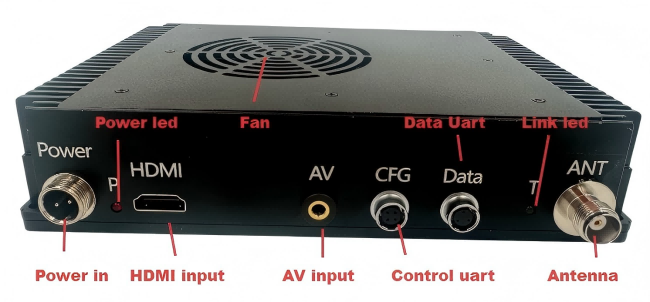

COFDM Wireless Signal Transmitter Interfaces
COFDM Wireless Signal Transmitter And Receiver Video Systems With AES256

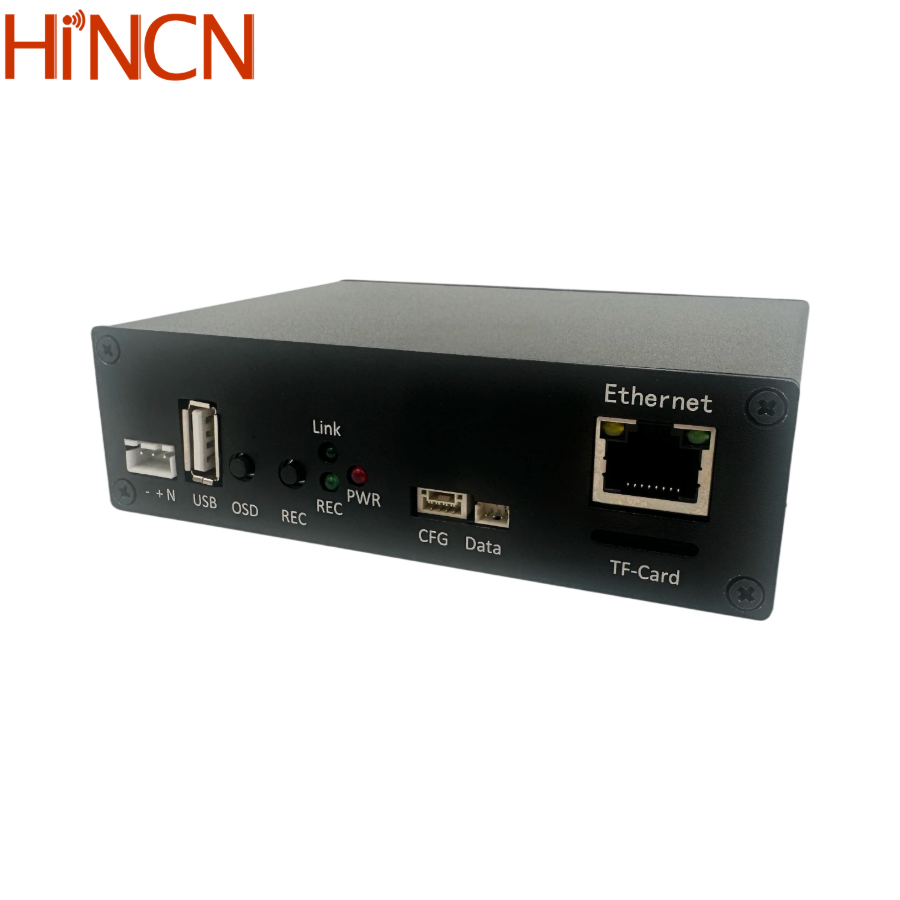

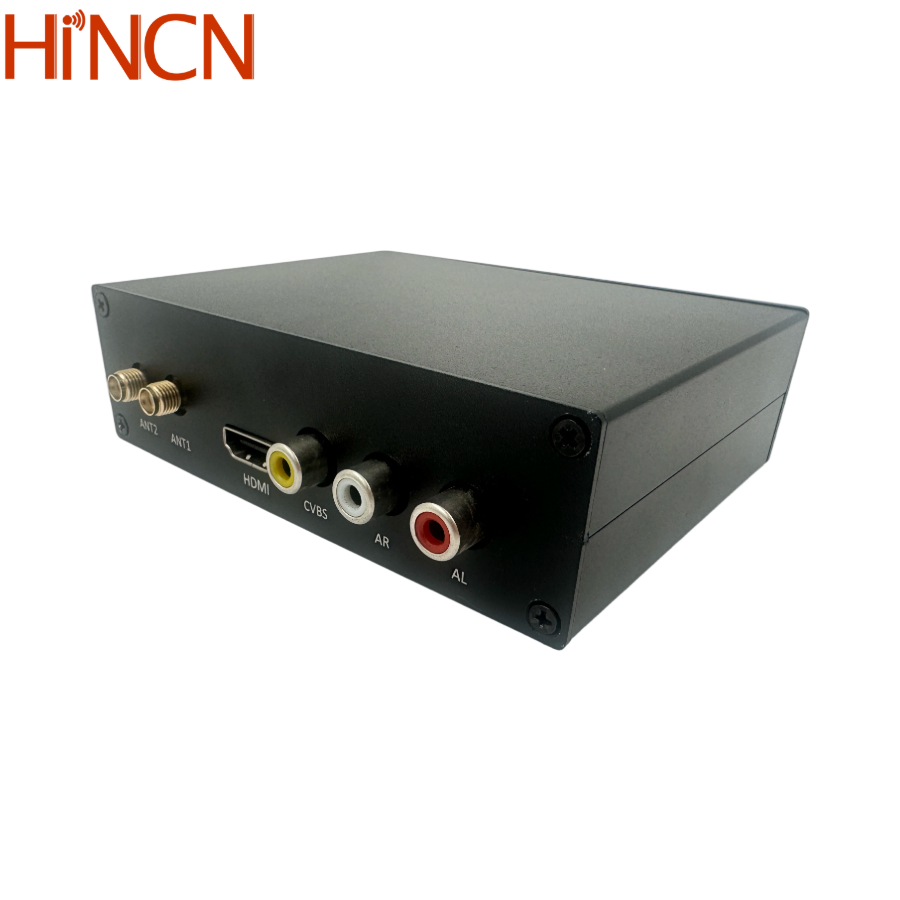

Paired COFDM Video Receiver
COFDM Wireless Signal Transmitter And Receiver Video Systems With AES256
COFDM Wireless Signal Transmitter And Receiver Video Systems With AES256
Frequently Asked Questions
Does this COFDM wireless signal transmitter support SDI video input?
Yes, our COFDM wireless video transmitters support HDMI, SDI, CVBS AV, IP Ethernet RJ45 and AHD video input.
What's the max distance for the 10W PA transmitter?
For UAV applications, the transmission range is about 100km when the UAV is at approximately 500 meters altitude with receiver antennas positioned as high as possible.
