UAV FPV Drone Video Transmitter 1.4G With Long Range Transmission 10km
UAV FPV Drone Video Transmitter 1.4G With Long Range Transmission 10km
UAV FPV Drone Video Transmitter 1.4G With Long Range Transmission 10km
UAV FPV Drone Video Transmitter 1.4G With Long Range Transmission 10km
Specifications
Brand Name :
Hincn
Model Number :
HCL601-300mW*2-M1
Place of Origin :
China
MOQ :
1 set (2 pcs)
Price :
US$999.00~US$1,079
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1,699sets/month
Delivery Time :
7~14 working days
Packaging Details :
carton package
Modulation :
TDD OFDM
Frequency :
566~678MHz,1420~1530MHz
Bandwidths :
3/5/10/20/40MHz
Throughput :
Maximum 100Mbps
Sensitivity :
-102dBm
RF Transmissioin Power :
300mW
Description
UAV FPV Drone Video Transmitter 1.4G With Long Range Transmission 10km

This UAV FPV Drone video transmitter is designed for aerial video transmission by unmanned aircraft. It transmits video signals to the receiver for display, enabling real-time monitoring.

UAV FPV Drone Video Transmitter 1.4G With Long Range Transmission 10km
Integrated Video & Telemetry & RC
  • One-way video transmission from drone camera to ground station for real-time video viewing
  • One-way control command transmission from ground station to drone
  • Two-way telemetry transmission between drone and ground station for sharing GPS, battery power, altitude, and other data
Low Latency Performance

Screen-to-screen latency as low as 200ms ensures real-time video data transmission and meets end-to-end requirements.

Automatic Frequency Hopping

It continuously monitors the interference conditions on all available transmission channels. If the current working channel is interfered with, it will automatically select and switch to the channel with the least interference, thereby ensuring the reliability and continuity of communication.

Stable Signal communication

Signal stability is directly proportional to signal strength. The Reference Signal Received Power (RSRP) value is used to measure the power of the downlink signal to determine its reliability.

AES encryption

Data transmission with AES128 encryption technology, making the data transmission more secure.

Support multiple networks

The HCL601 UAV FPV Drone video transmitter supports Point-to-Point, Point-to-Multipoint, Relay, and Mesh networking mode.

Technical Specifications
Product Name UAV FPV Drone Video Transmitter 1.4G With Long Range Transmission 10km
Modulation TDD OFDM
Frequency 566~678MHz, 1420~1530MHz
FHSS Support
Bandwidths 3MHz, 5MHz, 10MHz, 20MHz, 40MHz
Encryption AES128
Data Rate Maximum 100Mbps
RF Transmission Power 300mW*2
Constellation QPSK, 16QAM, 64QAM self adaption
Sensitivity -102dBm(1Mbps@20MHz)
Latency 200ms
Transmission Range 10km (UAV to Ground)
Power Input 12~18V (for both air unit and Ground unit)
Power Consumption <7W
Dimensions 83.7*61.4*20.2mm (the ground unit is the same as the air unit)
Weight 106g (the ground unit is the same as the air unit)

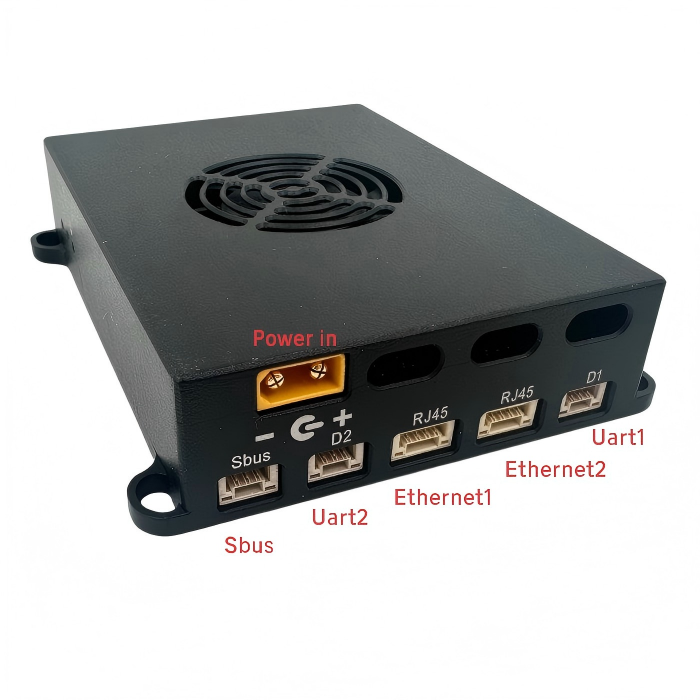

Air Unit Connectivity Ethernet*2, UART*2, SBUS, Power in, SMA*2
Ground Unit Connectivity Ethernet*2, UART*2, SBUS, Power in, SMA*2
Product Design
UAV FPV Drone Video Transmitter 1.4G With Long Range Transmission 10km


Frequently Asked Questions
Q1. It seems to support IP camera, but I want HDMI or SDI video input?

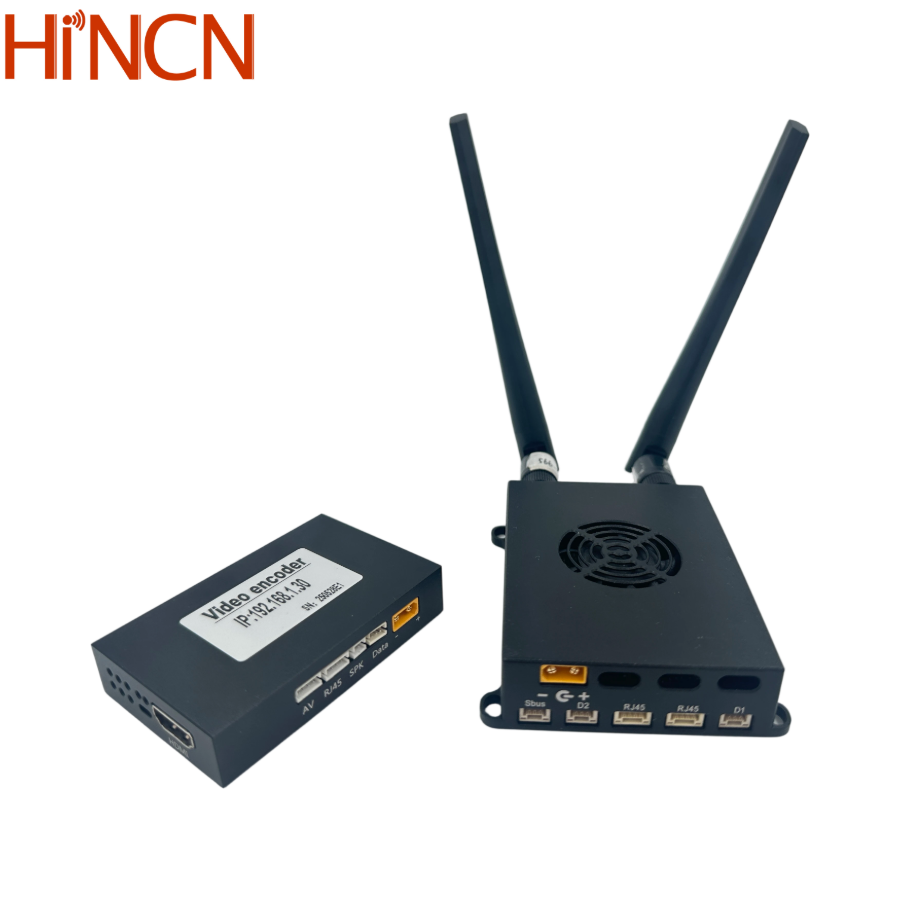

The default video input is IP RJ45 Ethernet port. For cameras with HDMI, SDI, AHD or AV output, we recommend using our mini encoder device to encode the video/audio signal into digital data for transmission. UAV FPV Drone Video Transmitter 1.4G With Long Range Transmission 10km At the receiver end, you can connect directly to your computer or NVR. For HDMI monitor output, our decoder device can convert the digital data back into HDMI video and audio signals.
About Hincn Limited

Hincn Limited is a Hong Kong company specializing in HD video wireless transmission solutions, founded in 2018. Our research and production center is located in Shenzhen and was established in 2015. We have a total of 9 employees, including 3 programmers and 2 engineers. Our company maintains long-term cooperative relationships with ADI, Xilinx, Altera and Morningcore. We are the third-party design partner for both ADI and Morningcore.
