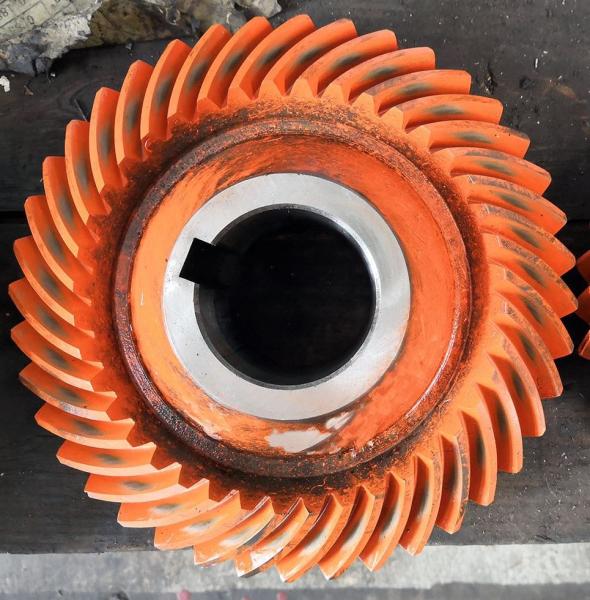

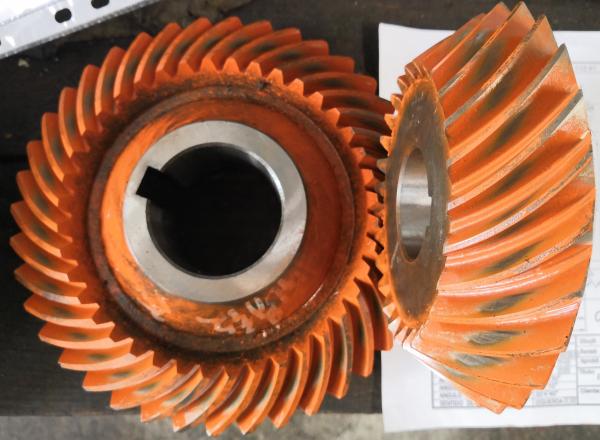

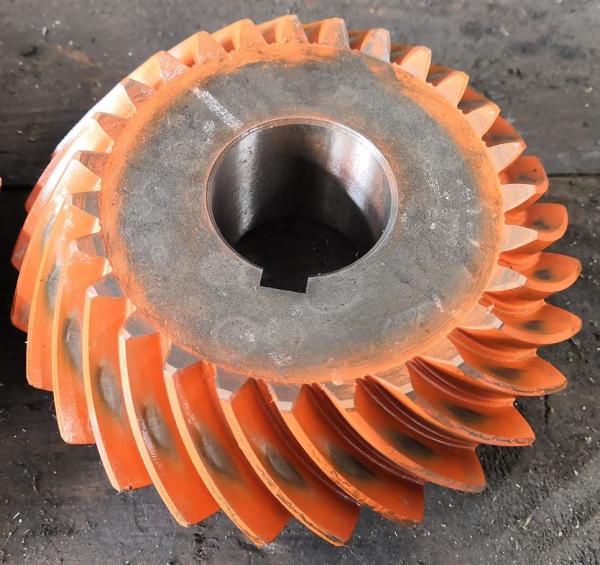

Customized Spiral Bevel Gears for Industrial Machinery Low Noise and High Smoothness
Customized Spiral Bevel Gears for Industrial Machinery Low Noise and High Smoothness
Customized Spiral Bevel Gears for Industrial Machinery Low Noise and High Smoothness
Customized Spiral Bevel Gears for Industrial Machinery Low Noise and High Smoothness
Customized Spiral Bevel Gears for Industrial Machinery Low Noise and High Smoothness
Customized Spiral Bevel Gears for Industrial Machinery Low Noise and High Smoothness
Specifications
Brand Name :
YIZGEAR
Place of Origin :
CHINA
MOQ :
2 Sets
Payment Terms :
L/C, T/T
Supply Ability :
500 Sets/Month
Delivery Time :
60 Days
Packaging Details :
Plywood Crate
Pressure Angle :
20°
Profie Type :
Gleason
Gear Tooth Number :
35T
Accuracy Grade :
DIN 6
Module :
16
Manufacturing :
Gear Grinding
Accuracy :
ISO 6
Description

1)Description of Spiral Bevel Gear

Spiral bevel gears are an efficient power transmission device, suitable for the transmission tasks between intersecting shafts. Their tooth profile adopts a helical curve design, which compared with the traditional straight bevel gears, has more stable meshing characteristics and higher load-bearing capacity.

2)Feature of Spiral Bevel Gear

  • Low noise and high smoothness: The spiral tooth profile design ensures the continuity of the meshing process, avoiding the impact caused by sudden contact in traditional straight bevel gears, which is particularly suitable for high-speed operation scenarios.

  • High load-bearing capacity: Due to the larger contact area provided by the spiral tooth profile, it can effectively disperse stress, significantly improving the load-bearing capacity and service life of the gears.

  • Efficiency optimization: Through precise processing technology, the friction loss can be significantly reduced, enabling the transmission efficiency to reach over 95%, further enhancing the overall performance of the system.

3)Application of Spiral Bevel Gear

  • Automotive drive axles

  • Industrial machinery

  • Aerospace field

Technical Specifications
Parameter Specification
Custom Made Available
Gear Profile Type Gleason
Manufacturing Process Gear Milling & Gear Teeth Grinding
Teeth Grinding Included
Module (M) Custom
Number of Teeth (Z) Custom
Pressure Angle (α) Custom
Lead Angle Custom
Accuracy Grade ISO 6 Grade/ AGMA 11Grade
Heat Treatment Carburizing/Cement Quenching
Surface Hardness 58-62HRC
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 18XГT SMK22
20Cr2Ni4 20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
