10 Module Spiral Bevel Gear Shafts Gear Milling and Grinding
10 Module Spiral Bevel Gear Shafts Gear Milling and Grinding
10 Module Spiral Bevel Gear Shafts Gear Milling and Grinding
10 Module Spiral Bevel Gear Shafts Gear Milling and Grinding
10 Module Spiral Bevel Gear Shafts Gear Milling and Grinding
10 Module Spiral Bevel Gear Shafts Gear Milling and Grinding
Specifications
Brand Name :
YIZGEAR
Model Number :
SB22081502
Place of Origin :
CHINA
MOQ :
2 Sets
Price :
$370/ Piece
Payment Terms :
T/T,L/C
Supply Ability :
500 Sets/Month
Delivery Time :
62 Days
Packaging Details :
Plywood Crate

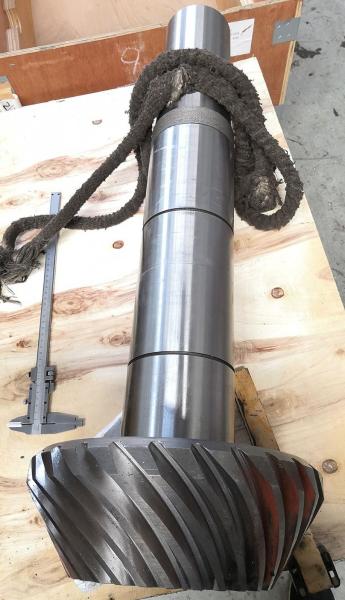

Length :
670mm
Face angle :
37°25‘
Module :
10
Pitch Diameter :
320
Direction :
Left Hand
Material :
17CrNiMo6
Description

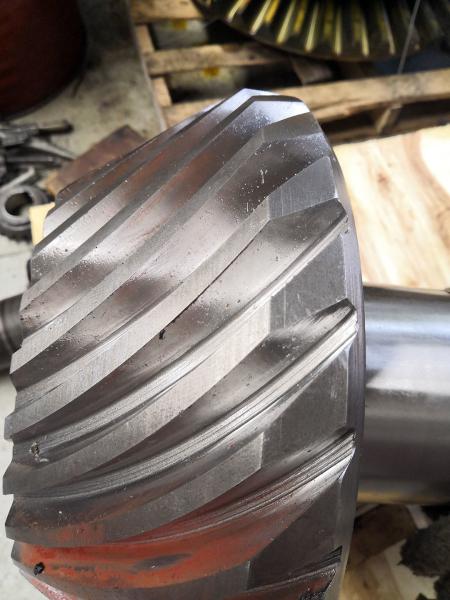

10 Module Gleason Type Spiral Bevel Gear Grinding Transmission Gear Shafts

Description of spiral bevel gear Shaft

A spiral bevel gear is the most complex form of bevel gear. The teeth of spiral gearsare curved and oblique.

This results in greater overlap between the teeth, which promotes gradual engagement and disengagement upon tooth contact.

This improved smoothness results in minimal vibration and noise during operation.

In addition, due to greater load distribution due to the increased number of teeth in contact, spiral bevel gears have better load-carrying capacities.

This allows them to be smaller in comparison to straight bevel gears with the same capacity.

Technical Specifications
Parameter Specification
Custom Made Available
Gear Profile Type Gleason

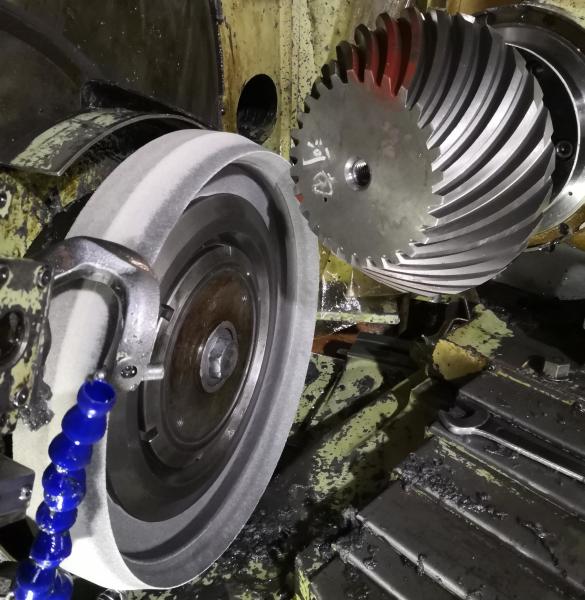

Manufacturing Process Gear Milling & Gear Teeth Grinding
Teeth Grinding Included
Module (M) 10
Number of Teeth (Z) 32
Pressure Angle (α) 20°
Lead Angle 35°
Accuracy Grade ISO 6 Grade/ AGMA 11Grade
Heat Treatment Carburizing/Cement Quenching
Surface Hardness 58-62HRC
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 18XГT SMK22
20Cr2Ni4 20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
Production Equipment

10 Module Spiral Bevel Gear Shafts Gear Milling and Grinding

Production Process

10 Module Spiral Bevel Gear Shafts Gear Milling and Grinding
