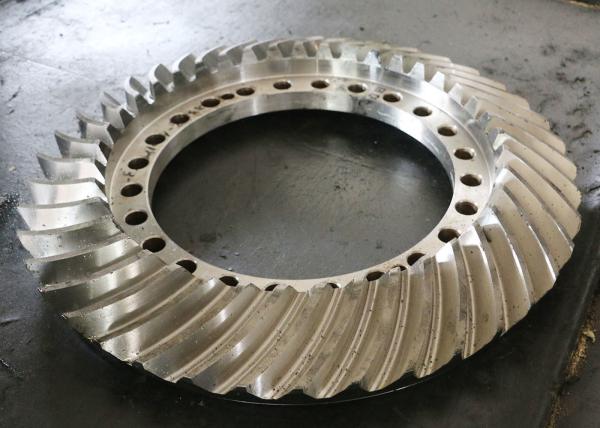

10 Module Gleason Type Spiral Bevel Gear Grinding Transmission Gear for Precision Machinery and Marine Industr
10 Module Gleason Type Spiral Bevel Gear Grinding Transmission Gear for Precision Machinery and Marine Industr
Specifications
Brand Name :
YIZGEAR
Model Number :
SB22081503
Place of Origin :
CHINA
MOQ :
2 Sets
Price :
$70/ Piece
Payment Terms :
T/T, L/C
Supply Ability :
500 Sets/Month
Delivery Time :
62 Days
Packaging Details :
Plywood Crate
Outer Diameter :
630mm
Shaft Angle :
90°
DP :
2.54
Material :
17CrNiMo6
Pitch angle :
57°38'
Root angle :
54'26'
Description

10 Module Gleason Type Spiral Bevel Gear Grinding Transmission Gear

1) Description of Spiral Bevel Gear

Spiral bevel gears are bevel gears with helical teeth positioned in a 90-degree angle. The teeth are designed with a slight curve to provide better flexibility and traction.
2) Feature of Spiral Bevel Gear

Spiral bevel gears are designed for applications that require high speed and high torque power. They can help cut consumer costs by providing long-lasting performance with minimal need for repairs or replacements. With spiral bevel gears, there is no need for offsets and a significantly reduced risk of overheating. Curved teeth and deeper traction between those teeth ensures greater asset availability to improve flexible performance and extend equipment life.

3) Working Principle of Spiral Bevel Gear

Based on the unique tooth profile parameters, during the transmission process, the teeth achieve a more uniform load distribution and better contact.

Through continuous tooth surface meshing, power is transmitted efficiently and smoothly, reducing energy loss and wear.

4) Application of Spiral Bevel Gear

In fields with high requirements for transmission smoothness and noise control, such as the transmission systems of high-end cars,

the main shaft drives of precision machine tools, and the propulsion systems of ships, spiral bevel gears play a crucial role with their excellent tooth profile design.

Technical Specifications
Parameter Specification
Custom Made Available
Gear Profile Type Gleason
Manufacturing Process Gear Milling & Gear Teeth Grinding
Teeth Grinding Included
Module (M) Custom
Number of Teeth (Z) Custom
Pressure Angle (α) Custom
Lead Angle Custom
Accuracy Grade ISO 6 Grade/ AGMA 11Grade
Heat Treatment Carburizing
Surface Hardness 58-62HRC
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 18XГT SMK22
20Cr2Ni4 20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
Production Equipment

10 Module Gleason Type Spiral Bevel Gear Grinding Transmission Gear for Precision Machinery and Marine Industr

Production Process

10 Module Gleason Type Spiral Bevel Gear Grinding Transmission Gear for Precision Machinery and Marine Industr
