Double-sided Spiral Bevel Gears with Hyperbolic Surface Design for Long Service Life
Double-sided Spiral Bevel Gears with Hyperbolic Surface Design for Long Service Life
Double-sided Spiral Bevel Gears with Hyperbolic Surface Design for Long Service Life
Double-sided Spiral Bevel Gears with Hyperbolic Surface Design for Long Service Life
Double-sided Spiral Bevel Gears with Hyperbolic Surface Design for Long Service Life
Double-sided Spiral Bevel Gears with Hyperbolic Surface Design for Long Service Life
Specifications
MOQ :
20 Sets
Payment Terms :
L/C, T/T
Supply Ability :
500 Sets/Month
Delivery Time :
60 Days
Packaging Details :
Plywood Crate
Brand Name :
YIZGEAR
Place of Origin :
CHINA
Width :
200 mm
Teeth Number :
14
Material :
Steel
Manufacturing Process :
Gear Grinding
Quality Grade :
ISO 6 Grade
Hardness :
HRC 58-62
Description

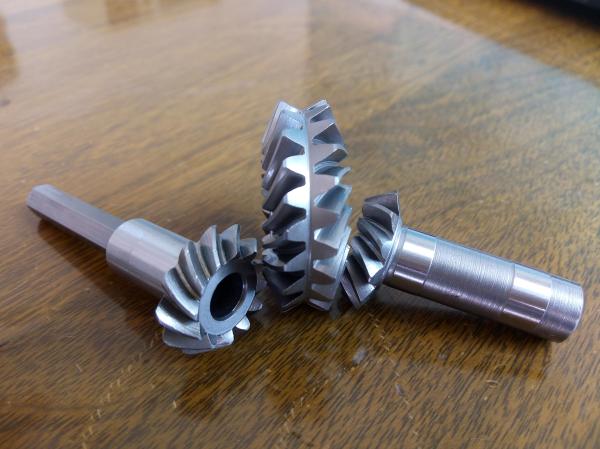

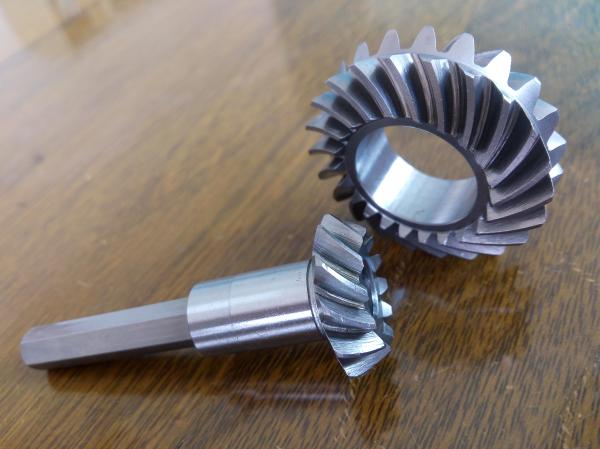

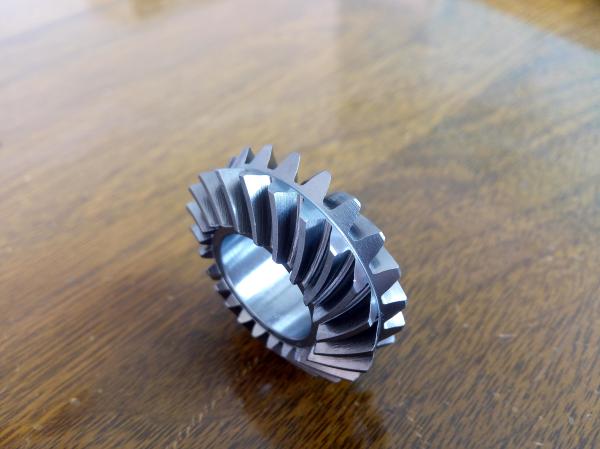

1) Description of Double-sided Spiral Bevel Gear
Double-sided spiral bevel gear is a special spiral bevel gear type, which has the features of spiral bevel gear and worm sets.
Double-sided spiral bevel gear is widely applied in the occasions where high torque and high precision transmission are required.
2) Features of Double- sided Spiral Bevel Gear

  • Hyperbolic Surface Design: The gear shafts, though not physically intersecting, are arranged in a spatially intersecting configuration. This design enhances the contact ratio of the gears, increases their load-bearing capacity, and improves transmission smoothness, thereby contributing to more efficient and reliable mechanical performance.

  • Spiral tooth profile: The tooth surface is distributed in a spiral manner. During operation, the gear can achieve progressive contact, effectively reducing impact force and noise levels. It is particularly suitable for high-speed transmission devices.

  • Double-sided meshing: The tooth surfaces of the small gear and the large gear mesh simultaneously on both sides, significantly improving the load balance and overall efficiency during the transmission process.

Technical Specifications
Parameter Specification
Custom Made Available
Gear Profile Type Gleason
Manufacturing Process Gear Milling & Gear Teeth Grinding
Teeth Grinding Included
Module (M) Custom
Number of Teeth (Z) Custom
Pressure Angle (α) Custom
Lead Angle Custom
Accuracy Grade ISO 6 Grade/ AGMA 11Grade
Heat Treatment Carburizing/Cement Quenching
Surface Hardness 58-62HRC
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 18XГT SMK22
20Cr2Ni4 20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
