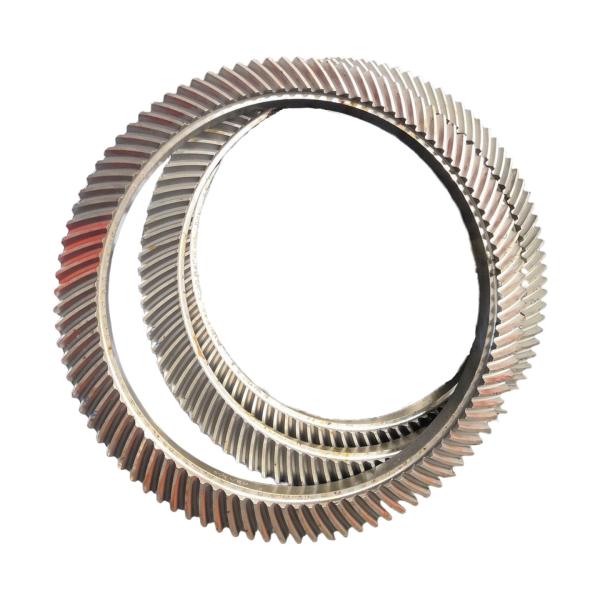

Spiral Bevel Gears for Power Transmission ISO 6 Grade Gleason Profile 58-62HRC
Spiral Bevel Gears for Power Transmission ISO 6 Grade Gleason Profile 58-62HRC
Specifications
Brand Name :
YIZGEAR
Place of Origin :
CHINA
MOQ :
200 Sets
Payment Terms :
L/C, T/T
Supply Ability :
500 Sets/Month
Delivery Time :
60 Days
Packaging Details :
Plywood Crate
Gear Type :
Gleason
Gear Teeth Quality :
ISO 6-7 Grade
Modue :
16
Gear Teeth :
14
Heat Treatment :
Carburizing
Manufacturing Method :
Gear Milling
Description

1) Descriptions of Spiral Bevel Gear

The spiral bevel gear achieves power transmission by the mutual meshing of the spiral tooth profiles.

It converts the rotational motion of one shaft into the rotational motion of another intersecting shaft.

2) Features of Spiral Bevel Gear

  • Engagement method: It adopts a progressive engagement. The tooth surface contact gradually transitions from one end of the tooth to the other.

  • Motion characteristics: During the engagement process, a large number of tooth pairs are involved and the overlap degree is high.

3) Advantages of Spiral Bevel Gear

  • Progressive meshing reduces shock and vibration, and significantly lowers operating noise.
  • High overlap degree enhances the bearing capacity of the gears, enabling them to transmit greater torque and effectively improving the transmission efficiency.
Technical Specifications
Parameter Specification
Custom Made Available
Gear Profile Type Gleason
Manufacturing Process Gear Milling & Gear Teeth Grinding
Teeth Grinding Included
Module (M) Custom
Number of Teeth (Z) Custom
Pressure Angle (α) Custom
Lead Angle Custom
Accuracy Grade ISO 6 Grade/ AGMA 11Grade
Heat Treatment Carburizing/Cement Quenching
Surface Hardness 58-62HRC
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 18XГT SMK22
20Cr2Ni4 20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
Production Equipment

Spiral Bevel Gears for Power Transmission ISO 6 Grade Gleason Profile 58-62HRC

Production Process

Spiral Bevel Gears for Power Transmission ISO 6 Grade Gleason Profile 58-62HRC
