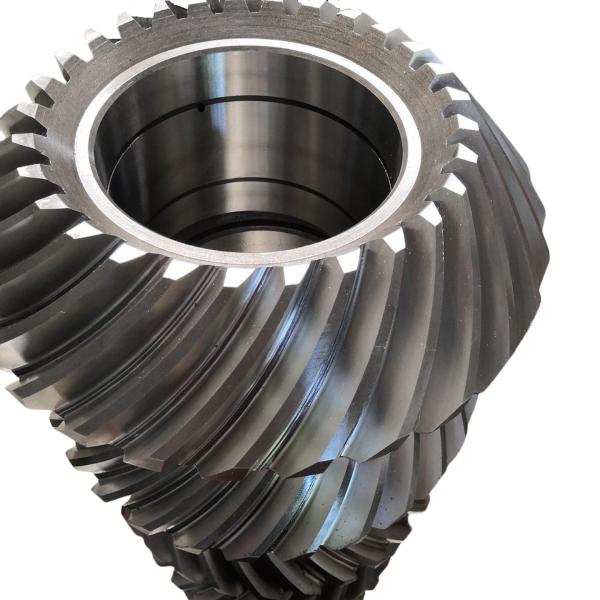

Spiral Bevel Gears Grinding Transmission Gears for Forged Steel Transmission Spare Parts
Spiral Bevel Gears Grinding Transmission Gears for Forged Steel Transmission Spare Parts
Specifications
Brand Name :
YIZGEAR
Place of Origin :
CHINA
MOQ :
200 Sets
Payment Terms :
L/C, T/T
Supply Ability :
500 Sets/Month
Delivery Time :
30 Days
Packaging Details :
Plywood Crate
Accuracy :
High
Profile Type :
Gleason
Modue :
Custom
Spiral Angle :
Custom
Application :
Power transmission
Press Angle :
Custom
Load Capacity :
High
Description

1) Description of Spiral Bevel Gear

Spiral bevel gears are bevel gears designed with a special spiral tooth profile. By precisely calculating and designing parameters

such as the spiral angle and pressure angle of the gear teeth, the meshing performance of the gears is optimized.
2) Feature of Spiral Bevel Gear

  • Tooth Profile Optimization: A well-designed spiral angle increases the contact ratio, enhancing transmission smoothness and load capacity. Optimizing the pressure angle improves tooth surface stress distribution, reducing wear.

  • Excellent Adaptability: Different tooth profile parameters can be customized to meet diverse application needs based on specific working conditions and transmission requirements.

  • Reduced Vibration and Noise: The unique tooth profile design ensures smoother meshing, effectively minimizing vibration and noise levels.

3) Working Principle of Spiral Bevel Gear

Based on the unique tooth profile parameters, during the transmission process, the teeth achieve a more uniform load distribution and better contact.

Through continuous tooth surface meshing, power is transmitted efficiently and smoothly, reducing energy loss and wear.

4) Application of Spiral Bevel Gear

In fields with high requirements for transmission smoothness and noise control, such as the transmission systems of high-end cars,

the main shaft drives of precision machine tools, and the propulsion systems of ships, spiral bevel gears play a crucial role with their excellent tooth profile design.

Technical Specifications
Parameter Specification
Custom Made Available
Gear Profile Type Gleason
Manufacturing Process Gear Milling & Gear Teeth Grinding
Teeth Grinding Included
Module (M) Custom
Number of Teeth (Z) Custom
Pressure Angle (α) Custom
Lead Angle Custom
Accuracy Grade ISO 6 Grade
Heat Treatment Carburizing
Surface Hardness 58-62HRC
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 18XГT SMK22
20Cr2Ni4 20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
Production Equipment

Spiral Bevel Gears Grinding Transmission Gears for Forged Steel Transmission Spare Parts

Production Process

Spiral Bevel Gears Grinding Transmission Gears for Forged Steel Transmission Spare Parts
