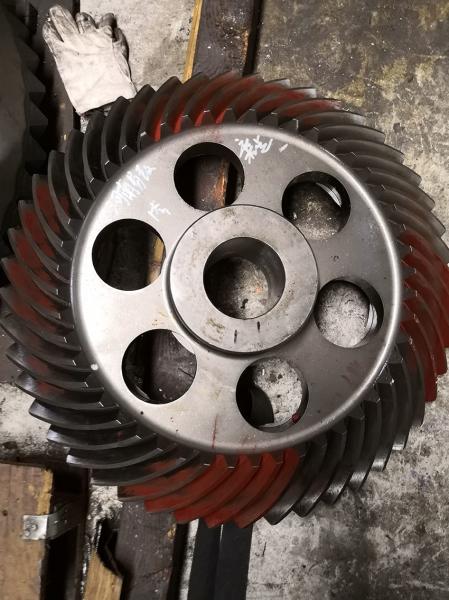

Custom Made 10 Module Helix Spiral Bevel Gears with Carburizing and Cement Quenching Heat Treatment
Custom Made 10 Module Helix Spiral Bevel Gears with Carburizing and Cement Quenching Heat Treatment
Custom Made 10 Module Helix Spiral Bevel Gears with Carburizing and Cement Quenching Heat Treatment
Custom Made 10 Module Helix Spiral Bevel Gears with Carburizing and Cement Quenching Heat Treatment
Custom Made 10 Module Helix Spiral Bevel Gears with Carburizing and Cement Quenching Heat Treatment
Custom Made 10 Module Helix Spiral Bevel Gears with Carburizing and Cement Quenching Heat Treatment
Custom Made 10 Module Helix Spiral Bevel Gears with Carburizing and Cement Quenching Heat Treatment
Custom Made 10 Module Helix Spiral Bevel Gears with Carburizing and Cement Quenching Heat Treatment
Specifications
Brand Name :
YIZGEAR
Model Number :
SB2200802002
Place of Origin :
CHINA
MOQ :
2 Sets
Price :
$300/ Piece
Payment Terms :
T/T, L/C
Supply Ability :
500 Sets/Month
Delivery Time :
62 Days
Packaging Details :
Plywood Crate
Width :
75mm
Profile Type :
Gleason
Direction :
Right
Outer Diameter :
470mm
Manufacturing :
Gear Grinding
Brand :
OEM
Description

10 Module Helix 35° Gleason Type Gear Grinding Spiral Bevel Gears

1) Features of spiral bevel gear

  • Spiral bevel gear offers higher strength and less noise
  • Gears can with a higher reduction ratio
  • Spiral bevel gear set need to be replaced in pairts (Both left hand and right hand)

2) Direction of Spiral Bevel Gear

a) Right hand

Right hand spiral bevel gear is one in which the outer half of a tooth is inclined in the clockwise direction.

b) Left hand

Left hand spiral bevel gear is one in which the outer half of a tooth is inclined in the counterclockwise direction.

Custom Made 10 Module Helix Spiral Bevel Gears with Carburizing and Cement Quenching Heat Treatment

Technical Specifications
Parameter Specification
Custom Made Available
Gear Profile Type Gleason
Manufacturing Process Gear Milling & Gear Teeth Grinding
Teeth Grinding Included
Module (M) Custom
Number of Teeth (Z) Custom
Pressure Angle (α) Custom
Lead Angle Custom
Accuracy Grade ISO 6 Grade/ AGMA 11Grade
Heat Treatment Carburizing/Cement Quenching
Surface Hardness 58-62HRC
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 18XГT SMK22
20Cr2Ni4 20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
Production Equipment

Custom Made 10 Module Helix Spiral Bevel Gears with Carburizing and Cement Quenching Heat Treatment

Production Process

Custom Made 10 Module Helix Spiral Bevel Gears with Carburizing and Cement Quenching Heat Treatment
