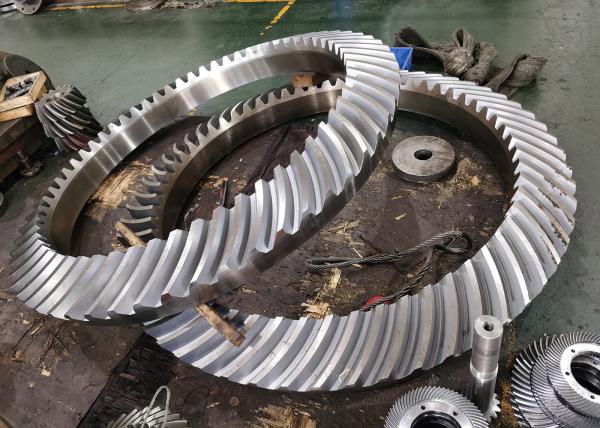

30 Module 62T Large Size Gleason Type Transmission Spiral Bevel Set
30 Module 62T Large Size Gleason Type Transmission Spiral Bevel Set
Specifications
Brand Name :
YIZGEAR
Model Number :
SB22082102
Place of Origin :
CHINA
MOQ :
2 Sets
Price :
$70/ Piece
Payment Terms :
T/T, L/C
Supply Ability :
500 Sets/Month
Delivery Time :
62 Days
Packaging Details :
Plywood Crate
Total Height :
14
Tip Diameter :
Φ1882
Helix angle :
35°
Material :
20CrNi2MoA
Face Width :
50
Inner Hole :
Φ1650
Description

30 Module 62T Large Size Gleason Type Transmission Spiral Bevel Set

1) Manufacture capactiy of Spiral bevel Gears

Gleason module: 0.8 up to 30

Type: Gleason and Klingelnberg type, prefer Gleason Type

Maximum gear dia: 2000 mm

Maximum pinion axis diameter: 200 mm

In-house development and calculation of summaries according to the Gleason method

Delivery only by set

Always better to provide mounting distances

Checking the contact ranges on Gleason testing machines

Finishing gear grinding after heat treatment

Technical Specifications
Parameter Specification
Custom Made Available
Gear Profile Type Gleason
Manufacturing Process Gear Milling & Gear Teeth Grinding
Teeth Grinding Included
Module (M) Custom
Number of Teeth (Z) Custom
Pressure Angle (α) Custom
Lead Angle Custom
Accuracy Grade ISO 6 Grade/ AGMA 11Grade
Heat Treatment Carburizing/Cement Quenching
Surface Hardness 58-62HRC
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 18XГT SMK22
20Cr2Ni4 20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
Production Equipment

30 Module 62T Large Size Gleason Type Transmission Spiral Bevel Set

Production Process

30 Module 62T Large Size Gleason Type Transmission Spiral Bevel Set

Product tags

spiral bevel gear module

,

spiral bevel gear model

,

spiral bevel gears calculations
