High-Precise Spiral Bevel Gears for Gearboxes in Power Transmission Systems
High-Precise Spiral Bevel Gears for Gearboxes in Power Transmission Systems
Specifications
Brand Name :
YIZGEAR
Model Number :
SP24031801
Certification :
QC
Place of Origin :
CHINA
MOQ :
5 Pcs
Price :
$300/ Piece
Payment Terms :
L/C, T/T
Supply Ability :
500 Sets/Month
Delivery Time :
60 days
Packaging Details :
Plywood Crate
Core Hardness :
220-280 HB
Working angle :
90°
Hardness :
58-62 HRC
Manufacturing Method :
Gear Milling
Mateing Gear teeth number :
21
Material :
20CrNi2MoA
Description

20 Module Helix Bevel Gear Gear Teeth Milling

1) Descriptions of Helical Bevel Gear

Helical bevel gears are a type of mechanical gear system that combines the features of helical gears and bevel gears.

They are used to transmit power and motion between two intersecting shafts that are not parallel to each other.

2) Features of Helical Bevel Gear

The design of helical bevel gears includes curved teeth that are cut at an angle to the gear axis.

This helical tooth arrangement allows for gradual and smooth engagement between the gears, resulting in reduced noise

and vibration compared to straight-toothed bevel gears.

The helical teeth also distribute the load more evenly across the gear face, increasing the gear system's overall strength and durability.

3) Applications of Helical Bevel Gear

Helical bevel gears find applications in various industries, including automotive, aerospace, industrial machinery, and power transmission systems.

They are commonly used in applications that require high torque transmission, precise motion control, and compact design, such as in gearboxes,

differentials, and power transmission systems with intersecting shafts.

4) Advantages of Helical Bevel Gear

The advantages of helical bevel gears include their high efficiency, improved load-carrying capacity, and smooth operation.

They can handle both high-speed and high-torque applications, making them versatile in various industrial settings.

Additionally, their compact design allows for efficient space utilization in tight or limited spaces.

Technical Specifications
Parameter Specification
Custom Made Available
Gear Profile Type Gleason
Manufacturing Process Gear Milling & Gear Teeth Grinding
Teeth Grinding Included
Module (M) Custom
Number of Teeth (Z) Custom
Pressure Angle (α) Custom
Lead Angle Custom
Accuracy Grade ISO 6 Grade/ AGMA 11Grade
Heat Treatment Carburizing/Cement Quenching
Surface Hardness 58-62HRC
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 18XГT SMK22
20Cr2Ni4 20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420

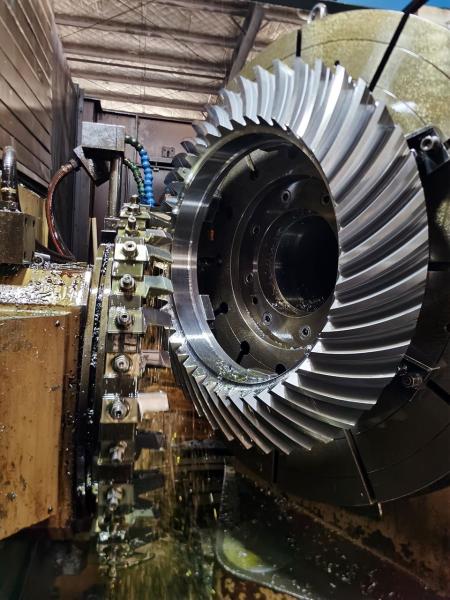

Production Equipment

High-Precise Spiral Bevel Gears for Gearboxes in Power Transmission Systems

Production Process

High-Precise Spiral Bevel Gears for Gearboxes in Power Transmission Systems
