Grinding Transmission Spiral Bevel Gears and Customizable Gear Solutions for Industrial Applications
Grinding Transmission Spiral Bevel Gears and Customizable Gear Solutions for Industrial Applications
Specifications
Brand Name :
YIZGEAR
Model Number :
SP23102501
Certification :
QC
Place of Origin :
CHINA
MOQ :
5 Pcs
Price :
$300/ Piece
Payment Terms :
L/C,T/T
Supply Ability :
500 Sets/Month
Delivery Time :
60 days
Packaging Details :
Plywood Crate
Material :
DIN 17CrNiMo6
Heat Treatment :
Carburizing
Hardness :
58-62 HRC
Roughness :
Ra 0.8~Ra 1.6
Module :
5
Gear Tooth Number :
35T
Description

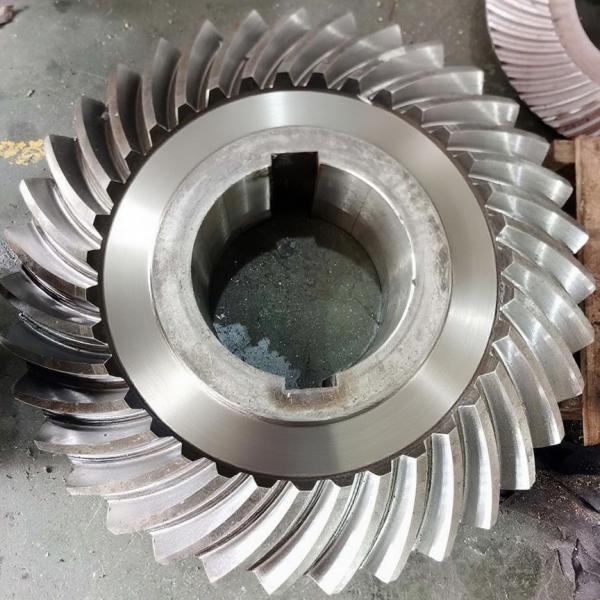

Gear Teeth Grinding Spiral Bevel Gear Set AGMA 10-11 Grade

Spiral bevel gears are a type of bevel gear that has curved teeth, known as spirals, on the gear faces.

They are used to transmit power and motion between intersecting shafts at a specific angle, typically 90 degrees.

Spiral bevel gears are widely employed in various applications such as automotive differentials, industrial machinery,

marine propulsion systems, and power transmission equipment.

The distinctive feature of spiral bevel gears is their spiral-shaped tooth profile.

Unlike straight bevel gears, which have straight teeth that intersect at the gear's axis, spiral bevel gears have teeth that are curved or helical in shape.

This curvature allows a gradual tooth engagement, resulting in smoother and quieter operation compared to straight bevel gears.

Products Spiral Bevel Gear Set
Custom Made √
Profile Type 18CrNiMo7/17CrNiMo6
Manufacturing Gear Milling/Gear Grinding
Diameter Pitch 5
Number of Teeth (Z) 35
Pressure Angle (α) 20°
Helix Angle (β) 35°
Teeth Accuracy Grade AGMA 10-11Grade
Heat Treatment Carburizing
Surface Hardness 58-62 HRC


STEEL CODE GRADES COMPARISON
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 　 18XГT 　 SMK22 　
20Cr2Ni4 　 20X2H4A 　 　 　
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 　 40XH2MA/
40XHMA		 4340 SNCM439 40NiCrMo6/
36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420 　

Production Equipment

Grinding Transmission Spiral Bevel Gears and Customizable Gear Solutions for Industrial ApplicationsGrinding Transmission Spiral Bevel Gears and Customizable Gear Solutions for Industrial ApplicationsGrinding Transmission Spiral Bevel Gears and Customizable Gear Solutions for Industrial Applications

Grinding Transmission Spiral Bevel Gears and Customizable Gear Solutions for Industrial ApplicationsGrinding Transmission Spiral Bevel Gears and Customizable Gear Solutions for Industrial ApplicationsGrinding Transmission Spiral Bevel Gears and Customizable Gear Solutions for Industrial Applications

Production Process

Grinding Transmission Spiral Bevel Gears and Customizable Gear Solutions for Industrial ApplicationsGrinding Transmission Spiral Bevel Gears and Customizable Gear Solutions for Industrial ApplicationsGrinding Transmission Spiral Bevel Gears and Customizable Gear Solutions for Industrial Applications

Forging Machining Cutting

Grinding Transmission Spiral Bevel Gears and Customizable Gear Solutions for Industrial ApplicationsGrinding Transmission Spiral Bevel Gears and Customizable Gear Solutions for Industrial ApplicationsGrinding Transmission Spiral Bevel Gears and Customizable Gear Solutions for Industrial Applications

Heat Treatment Grinding Inspection

Grinding Transmission Spiral Bevel Gears and Customizable Gear Solutions for Industrial Applications
