Hydraulic Cable Reel Stand 50-300KN for Heavy-Duty Wire Payoff in Transmission Line Construction

Product Overview

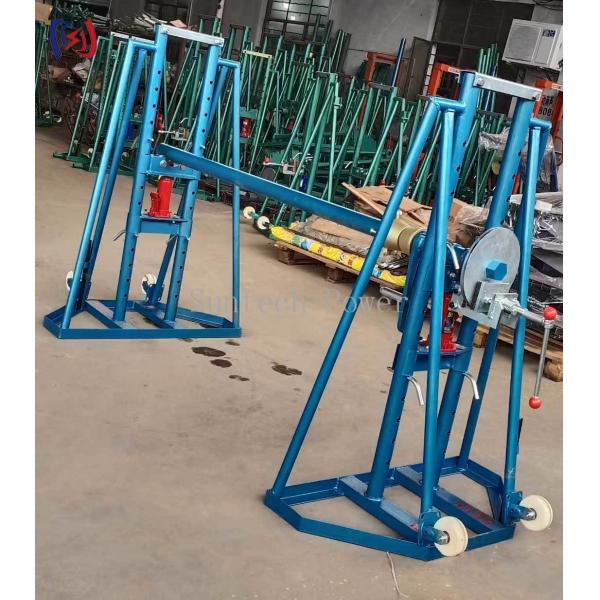

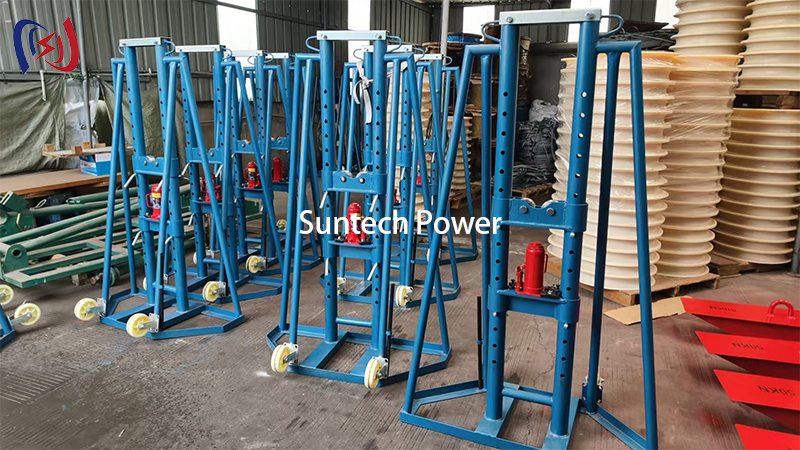

The Hydraulic Cable Reel Stand (SI series, Item No. 21346-21344) is a heavy-duty wire payoff system engineered for the safe deployment of high-voltage power cables, overhead conductors and optical fiber cables in electrical construction. Rated from 50KN to 300KN, the stand supports cable reels from 2400mm up to 5000mm in diameter and 1600-3100mm in width, with spindle hole diameters of 76-200mm. The hydraulic lifting mechanism raises loaded reels with minimal manual effort, while the optional foot brake provides controlled, adjustable tension during payoff — reducing reel toppling risk and cable damage on substation, transmission line and urban underground cable laying sites. Built for long service life with low maintenance, it is a reliable choice for contractors and utility crews handling large-diameter, heavy-weight cables.

Technical Specifications

Applications

· Overhead transmission line construction — stringing conductors between towers.

· Underground cable laying in urban power grids and industrial parks.

· Renewable energy projects — wind / solar farm grid connection.

· Substation and switchyard high-voltage cable installation.

Product Advantages

· Hydraulic Powered Lifting — loaded cable reels are raised by hydraulic cylinders instead of manual jacks, cutting physical labor and setup time on site.

· Heavy-Duty Load Range — rated 50-300KN across six models (SI-5 to SI-30), covering reels up to Φ5000mm diameter and 3100mm width.

· Adjustable Payoff Tension — optional foot-brake device delivers controlled braking and stable tension during unreeling, preventing free-spinning and cable damage.

· Easy Site Mobility — integrated bottom trundles allow one or two workers to reposition the stand between drum positions without a crane.

· Wide Spindle Compatibility — spindle hole diameter 76-200mm matches common wooden, steel and plastic cable drum hubs.

· Low Maintenance Design — robust steel construction with minimal moving parts keeps long-term ownership cost low on continuous projects.
