Hydraulic Conductor Drum Stand 5000-7000kg Reel Capacity for Construction Safety Tools

Product Overview

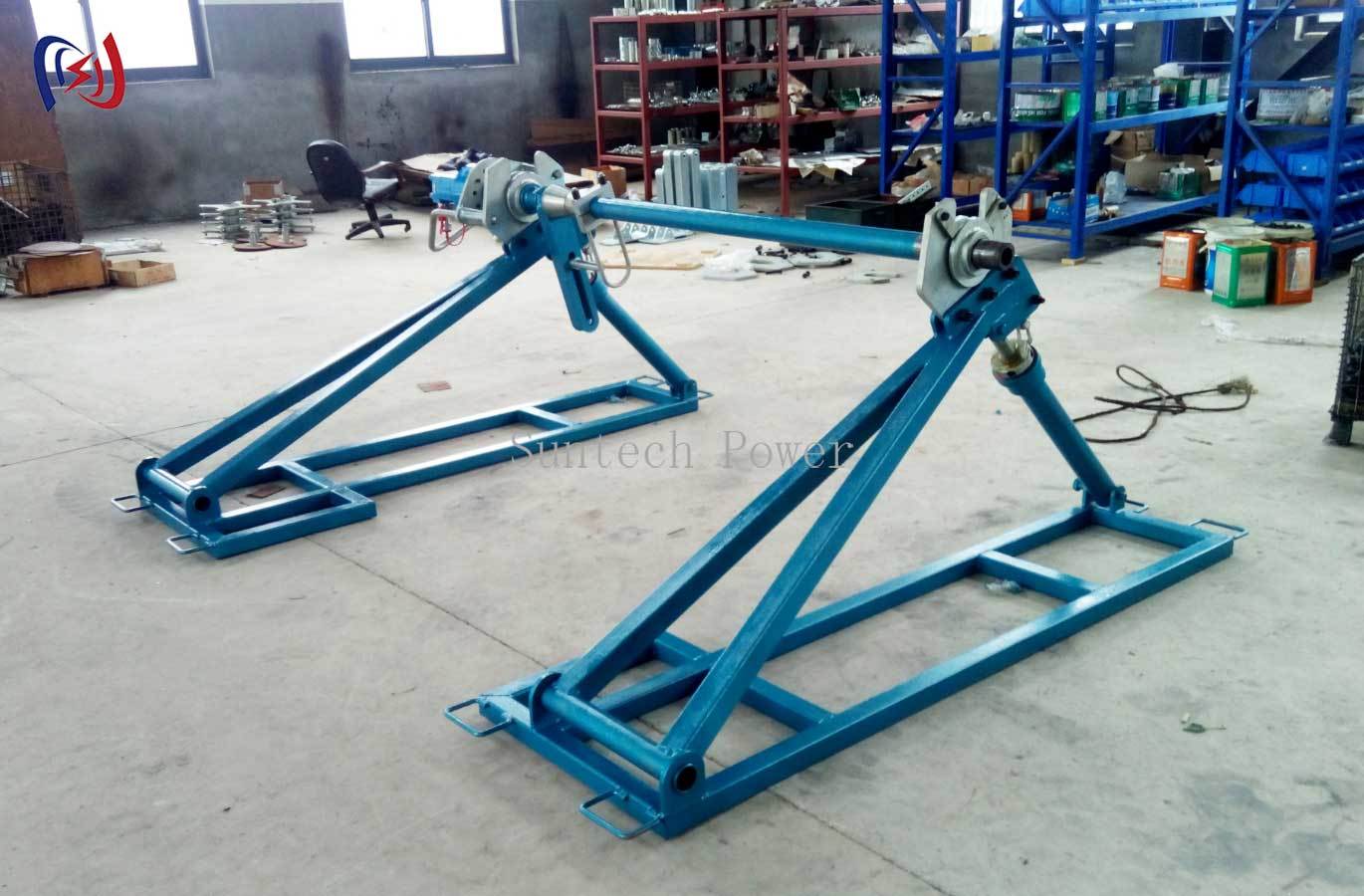

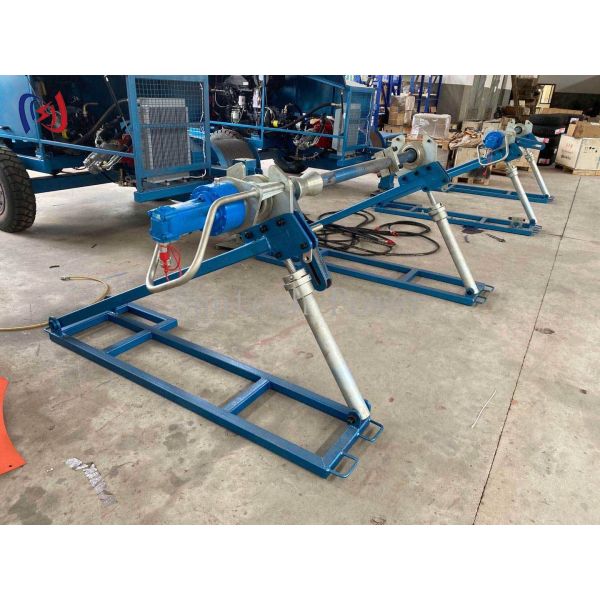

The Pilot Wire Hydraulic Conductor Drum Stand (SIPZ-5H / SIPZ-7H, Item No. 15151-15152) is a hydraulic drum support built for pilot wire and conductor reel handling in transmission line construction. It accepts reels of Φ1250-2500mm diameter and up to 1400mm width, with a maximum reel weight of 5000-7000kg. Driven payoff is supported by a working torque of 1200-2000N.m at up to 45rpm, helping crews feed pilot wire smoothly during stringing operations. The hydraulic lifting mechanism raises and stabilizes the loaded drum, while the Φ76 axle and 13m hydraulic tube length suit standard site layouts. Manufactured under ISO 9001 quality control by Suntech Power Tools, it is part of the construction safety tool range that requires no minimum order quantity and can be customized for OEM requirements.

Technical Specifications

Applications

· Pilot wire payoff during overhead transmission line stringing.

· Conductor and pilot wire drum support at pulling and tensioning sites.

· Cable installation tooling for utility construction crews.

· Supporting hydraulic tension and puller operations.

Product Advantages

· Hydraulic Drum Handling — hydraulic lifting raises and secures loaded reels, keeping pilot wire and conductor drums stable during payoff.

· Driven Payoff Capability — up to 2000N.m working torque and 45rpm max speed allow controlled, powered feeding of pilot wire to reduce manual rotation.

· Wide Reel Compatibility — accepts coil diameters of Φ1250-2500mm, reel widths up to 1400mm and reel weights up to 7000kg.

· Safety-Oriented Design — classified as a construction safety tool; stable support lowers the risk of drum toppling and wire kinking on site.

· Flexible Ordering — the construction safety tools range carries no MOQ, and OEM customization is available for project-specific requirements.
