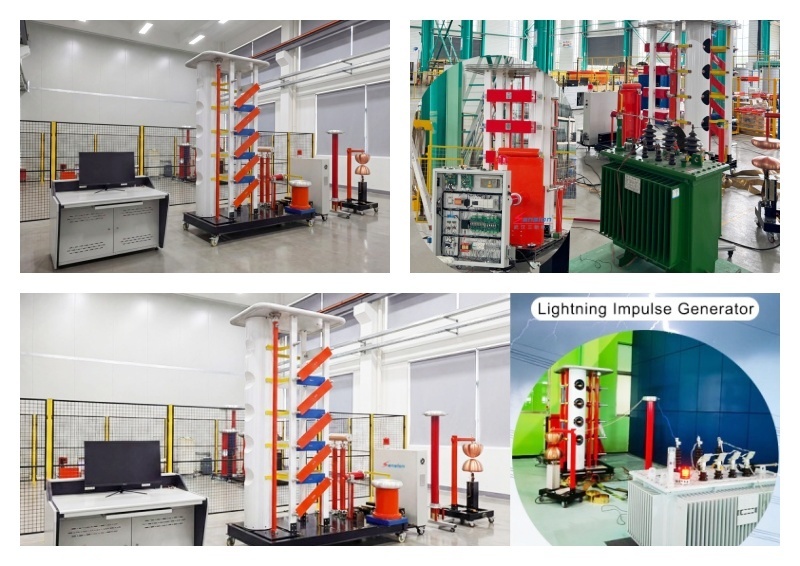

SXCY 200kV/10kJ Lightning Impulse Generator

The 200kV Lightning Impulse Generator is a professional high voltage test equipment designed for evaluating the insulation strength of transformers and electrical equipment under lightning impulse conditions. It generates standard full-wave impulse voltage to simulate lightning overvoltage impacts in power systems and verify equipment reliability.

Adopting advanced Marx generator technology, this impulse voltage test system provides stable output performance, accurate waveform generation, and reliable testing results. The compact multi-stage structure makes it suitable for high voltage laboratories, transformer manufacturers, and electrical equipment testing organizations.

The system is equipped with high-performance impulse capacitors and supports precise control of test energy and voltage output. It is mainly used for lightning impulse withstand testing, helping engineers identify insulation weaknesses and improve the safety performance of power equipment before operation.

With professional design, flexible configuration, and reliable protection functions, the 200kV Lightning Impulse Generator provides an effective solution for high voltage insulation testing and power equipment quality verification.

The 200kV Lightning Impulse Generator is widely applied in transformer impulse testing, high voltage equipment insulation testing, and electrical performance evaluation. It is suitable for testing power transformers, switchgear, GIS, cables, and other high voltage components.

This system is commonly used in power equipment manufacturers, research institutes, and high voltage laboratories to verify insulation coordination and ensure equipment can withstand lightning impulse stress during operation.
