4 Stages 400kV 20kJ Lightning Impulse Test Equipment For High Voltage Testing
4 Stages 400kV 20kJ Lightning Impulse Test Equipment For High Voltage Testing
4 Stages 400kV 20kJ Lightning Impulse Test Equipment For High Voltage Testing
4 Stages 400kV 20kJ Lightning Impulse Test Equipment For High Voltage Testing
4 Stages 400kV 20kJ Lightning Impulse Test Equipment For High Voltage Testing
4 Stages 400kV 20kJ Lightning Impulse Test Equipment For High Voltage Testing
Specifications
Model Number :
SXCY
Rated Stage Voltage :
±100 kV
MOQ :
1
Stage Capacitance :
1.0 μF
Name :
Impulse Voltage Generator
Certification :
CE/SGS/EMS/ISO 9001
Rated Energy :
20 kJ
Place of Origin :
China
Number of Stages :
4 Stages
Delivery Time :
30 Working Days
Standard Impulse Waveform :
1.2/50 μs Lightning Impulse Voltage Waveform
Payment Terms :
L/C,T/T,Western Union
Total Impulse Capacitance :
0.25 μF
Packaging Details :
Plywood Case
Full Capacity Charging Time :
180 s
Brand Name :
Sansion Power
Rated Nominal Voltage :
±400 kV
Description
1. Product Description

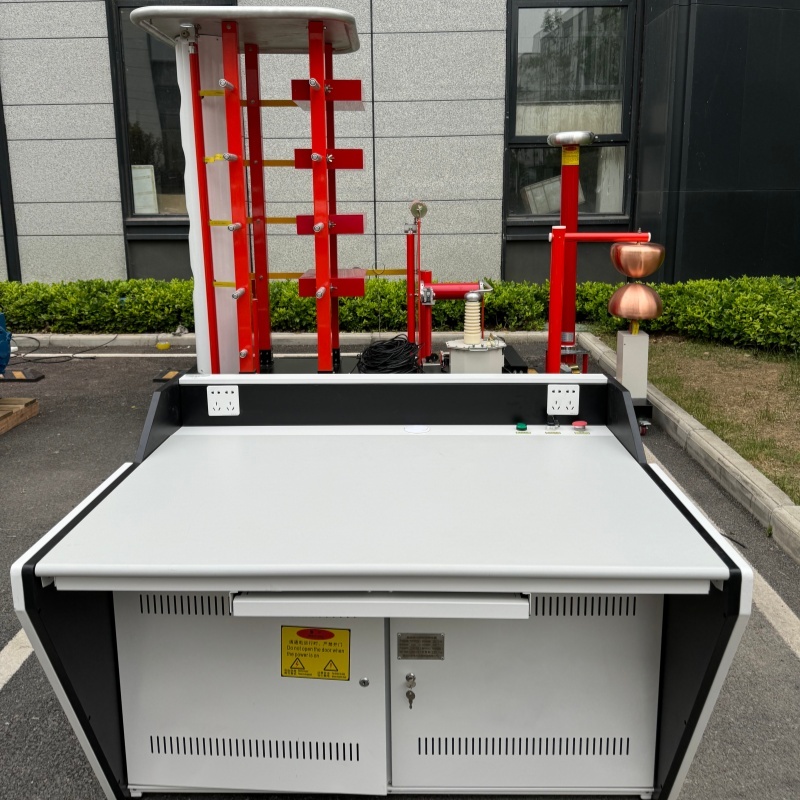

400kV/20kJ Lightning Impulse Test System

The Lightning Impulse Test System is designed for insulation performance verification of high voltage electrical equipment under lightning impulse voltage conditions. The system generates standardized impulse voltage waveforms to simulate lightning overvoltage stresses and evaluate the insulation strength of transformers, GIS, cables, bushings, insulators, and other power equipment.

The impulse voltage generator adopts modular design technology with charging unit, impulse capacitors, multi-stage generator structure, control system, measurement system, and protection devices. It can generate standard lightning impulse voltage waveform (1.2/50μs) according to IEC 60060 requirements for high voltage testing applications.

2. Important Product Parameters
Parameter Specification
Rated Nominal Voltage ±400 kV
Rated Stage Voltage ±100 kV
Rated Energy 20 kJ
Number of Stages 4 Stages
Stage Capacitance 1.0 μF
Total Impulse Capacitance 0.25 μF
Standard Impulse Waveform 1.2/50 μs Lightning Impulse Voltage Waveform
Charging Voltage Stability ≤ ±1%
Full Capacity Charging Time 180 s
Testing Application Transformer and High Voltage Electrical Equipment Insulation Testing
3. Product Applications
  • Power Transformer Manufacturing
  • Distribution Transformer Testing
  • GIS Testing Laboratory
  • High Voltage Cable Testing
  • Insulator and Bushing Testing
  • Surge Arrester Testing
  • Power Equipment Research Laboratory
4. Product Advantages
  1. 1. Customized High Voltage Solution Designed according to different voltage levels, laboratory conditions, and testing requirements.
  2. 2. Accurate Impulse Waveform Generation Provides stable impulse voltage output to meet insulation verification requirements.
  3. 3. Wide Application Range Suitable for transformer manufacturers, cable factories, power utilities, and HV laboratories.
  4. 4. Reliable Safety Protection Integrated control and protection system ensures safe operation during high voltage testing.
  5. 5. Complete Testing Solution Provider Sansion Power supports complete high voltage laboratory solutions including impulse testing, AC withstand testing, partial discharge testing, and resonance testing.
5. FAQ
Q1: What is a lightning impulse test system used for? A: It is used to test whether high voltage equipment can withstand transient overvoltage caused by lightning strikes.
Q2: Which equipment can be tested by this system? A: The system is mainly used for transformers, GIS, cables, bushings, insulators, and other high voltage equipment.
Q3: What lightning impulse waveform is generated? A: The standard lightning impulse waveform is 1.2/50μs according to IEC 60060 requirements.
Q4: Can the system be customized for different voltage levels? A: Yes. Sansion Power provides customized solutions according to customer test requirements.
