SXCY Lightning Impulse Test System

Lightning Impulse Test System for Transformer Insulation Withstand Testing Equipment

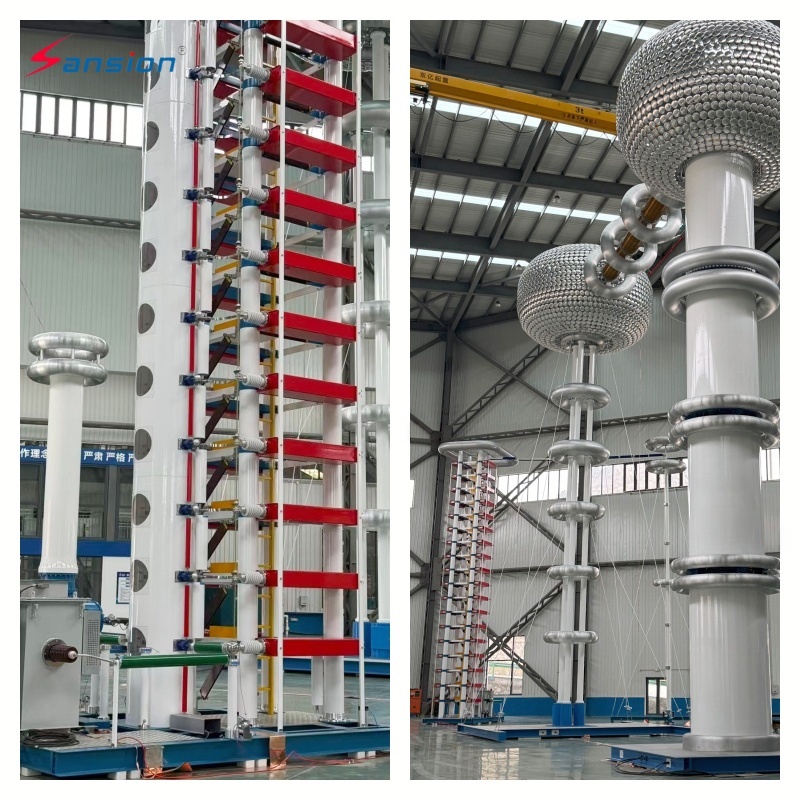

The Lightning Impulse Test System is a high-voltage testing solution designed for evaluating the insulation strength of transformers and power equipment under lightning impulse conditions. The system generates standard lightning impulse voltage and switching impulse voltage to simulate transient overvoltage impact in power networks.

Based on multi-stage Marx impulse generator technology, this system provides stable output voltage, accurate waveform control, and reliable test performance. It is widely used in transformer factories, high voltage laboratories, testing centers, and research institutions for insulation withstand verification.

The equipment adopts digital automatic control and data acquisition technology, enabling engineers to control testing procedures, capture impulse waveforms, and analyze test results efficiently. Flexible configuration allows different voltage levels and energy capacities according to customer requirements.

The Lightning Impulse Test System is mainly applied for transformer insulation testing, GIS testing, switchgear testing, cable testing, and high voltage equipment performance evaluation. It helps manufacturers and laboratories verify insulation reliability before equipment operation.

• Stable Impulse Output: Provides accurate lightning impulse voltage waveform for reliable testing results.
• Digital Control System: Supports automatic operation, waveform recording, and test data analysis.
• Flexible Configuration: Voltage level and energy capacity can be customized for different applications.
• Safety Protection: Includes overvoltage protection, grounding monitoring, and safety interlock functions.
