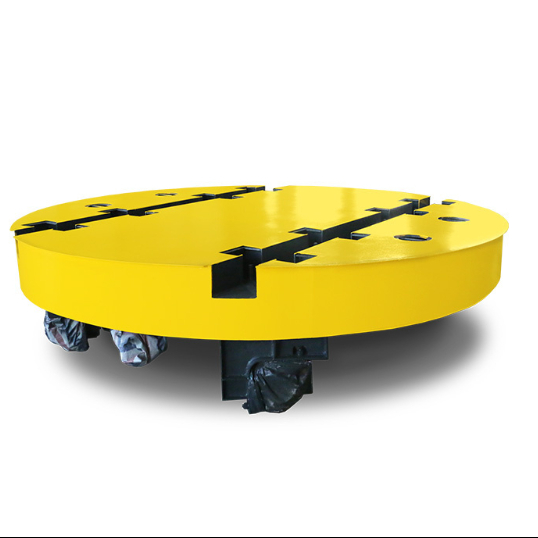

This heavy-duty electric turntable transfer vehicle is specially designed for efficient industrial operations. It combines a powerful load capacity with a 360-degree rotating platform, enabling it not only to transport heavy materials but also to achieve precise direction adjustment and positioning at any point along the path. This dual function reduces the need for complex auxiliary equipment and greatly simplifies the workflow of assembly, welding and transfer stations. By ensuring seamless material flow and optimal alignment, it significantly enhances operational flexibility, shortens handling time, and effectively improves overall production efficiency in harsh workshop environments.

2.Application

This heavy-duty electric turntable transfer vehicle has a wide range of applications. It integrates linear movement and 360-degree rotation functions to achieve precise spatial positioning of materials.
1.Assembly lines and welding stations
On the assembly lines of large products such as automobiles and construction machinery, a turntable is used to rotate 360 degrees, keeping the workpiece at the optimal assembly Angle. This makes it convenient for workers to operate from different directions and complete all tasks without moving. In the welding workshop, precise displacement of weld seams can be achieved.
2. Cross-track transfer and reversing

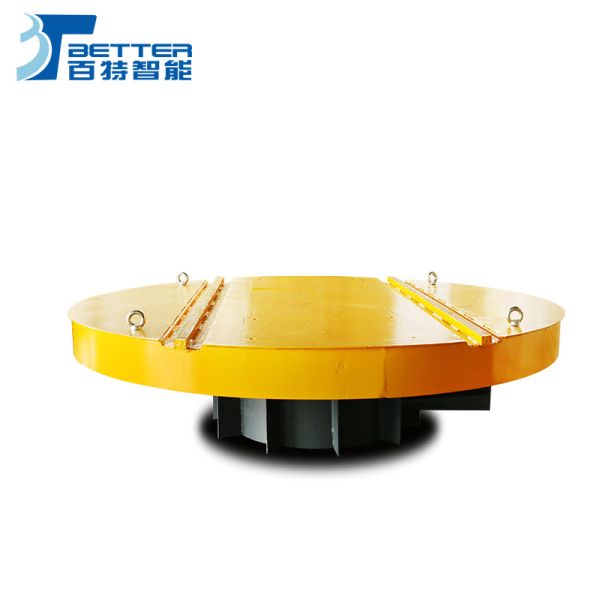

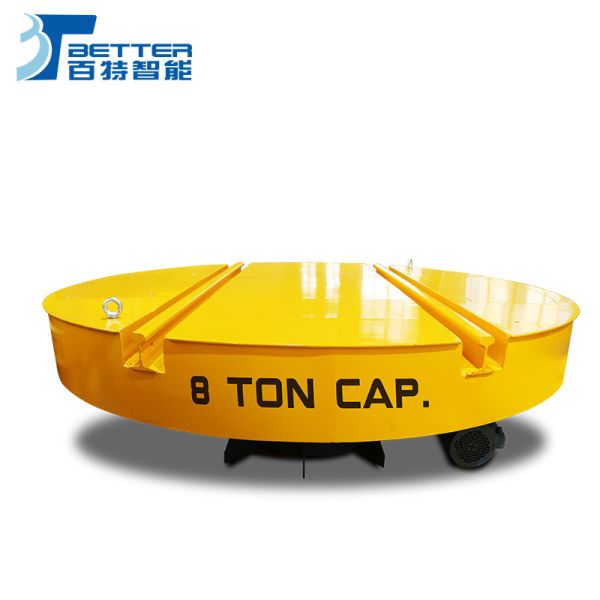

In workshops with multiple parallel tracks or where the transportation direction needs to be changed 90 degrees, after the transfer vehicle reaches the intersection of the tracks, it can easily connect the materials to another track through its own rotation, completing the switch between the "longitudinal and transverse" directions.
3. Warehousing logistics and inbound and outbound operations
In the warehouse, it can adjust the goods to the exact orientation by rotation, facilitating the grasping by mechanical arms or the loading and unloading by workers, and reducing the requirements for transportation space.
4. Inspection and display session
In the quality inspection area, large products can be carried to rotate slowly, facilitating comprehensive inspections by inspection personnel or machine vision systems from all angles. Similarly, it can also be used for the display of large equipment to achieve a smooth rotating display effect.

3.Parameter

4.Manufacturing process of warehouse transportation vehicle

CNC Cutting
Transport the steel plate from raw material warehouse to CNC cutting workshop for cutting. After the cutting, the workers will do some simple processing such as chip moving and setting out.
Preliminary Assembling
Put the cut steel plate together according to the design drawing
Welding
Weld the steel plate with automatic welding machine after the preliminary assembling
Post weld treatment
Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress
Spray Primer
Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint. The primer is to two layers
Assembling
Assemble the structure parts after spraying primer with wheels, motors and gear box, etc.
Paint finish
Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish
Debugging
Debugging the cart after painting the finish with electric control system, after the debugging, the cart will test without load. And after the no load test, the cart will be tested with load. After the inspection, the cart will be transported to storage area.

5.Product Details

6.Packaging&Shipping

*For lenght is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
* If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.

7.FAQ

How can Transfer Carts be customized?
Please tell us:
What load or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.

8.Certifications

9.Customers' Visit

Henan PETTER Handling Equipment Co., Ltd. Our company is specializing in the Design and Manufacture of Flat Transfer Trolley to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items.
