Specifications
MOQ :
1 Piece
Price :
US$3000-3500
Place of Origin :
Xinxiang
Brand Name :
BETTER
Packaging Details :
Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit.
Delivery Time :
15-30 days
Payment Terms :
L/C,T/T
Supply Ability :
50 Sets/Month
Model Number :
BWP
Product Name :
Electric Cart
Usage :
Heavy Duty Material Transportation
Load Capacity :
1-300ton
Special Function :
Anti-Explosion,Heat-Resistant,Lifting,Customized
Material :
Steel
Transport Package :
The Whole Cart Will Be Packed by Tarp.
Specification :
2000*2000*500
Trademark :
BETTER
Origin :
Xinxiang
HS Code :
84289090
Production Capacity :
50 Sets/Month
Description
30T Motorized Trolley Electric Cart on Rails with Electric Turntable

Product Description


1.Product Overview---Material Transfer Solution

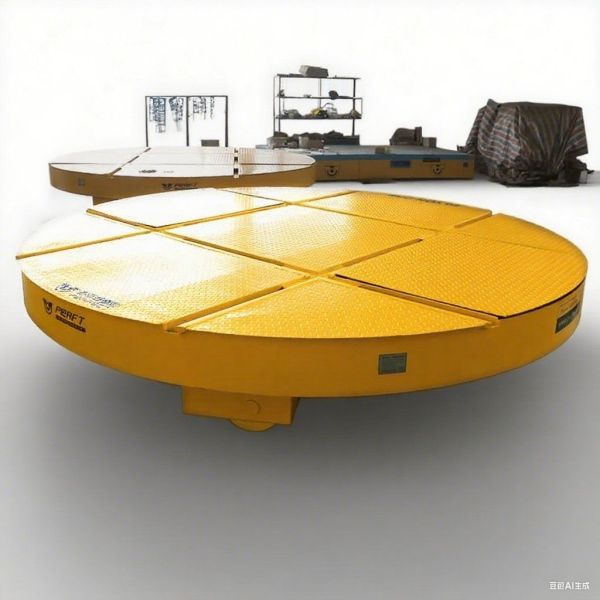

This rall electric flat cart is used with a electric industrial turntable,Because the customer reguired the rall electric flat cart to turnaround. NEWLD's technicians designed the rail electric flat cart to be used in coniunction with the turntable.This rail electric flat cart has explosion-proof characteristics and can easily cope with material handling needs in variousenvironments, bringing an efficient and safe solution to your production line. it is also known for its excellent load capacity, which canreach up to 30 tons. Whether loading cement, copper or other metal materials, it can handle it easily and provide

Unparalleledconvenience for your work, At the same time, it uses an advanced smart chareer that can automatically adiust the power according tocharging needs to ensure maximum working time.In order to further improve the efficiency of material handling, the rail electric flat cart is equipped with remote control function. Youcan control its movement anytime and anywhere through the remote control, no need to manually push or operate cumbersomemachinery. This not only improves work efficiency, but also reduces work risks and ensures employee safety.

Application of products

2.Product Usage---Material Transfer Solution
The Electric Material Transfer solutions of BETTER allow movement charges at ground level in all types of industries and applications, such as warehouse, within or without factory, bay to bay, airport, sea port, manufacturing workshop, production line, and son on.
Δ The transfer solution is suitable for various industries, steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc
Δ For horizontal load transfer of a wide range of material, we have the heavy duty, high quality material transfer solution you need.
Δ Material transfer flat carriages are used to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base.
Δ It's an essential kind equipment for lifting goods, raising labor efficiency, improving working conditions.



Detailed Photos


3.Product Details---Material Transfer Solution

Product Parameters


4.Product Parameter---Material Transfer Solution
Technical Parameters For Electric Transfer Carts
1 rated load(t) 5 10 15 20 30 40 50
2 impacted rated load(t) 7.5 15 22.5 30 45 60 75
3 structure of frame steel plates welded,beam structure
4 thickness of the steel plate(mm) 8 10 12 14 14 16 16
5 cart weight(t) 4.3 5.3 6.6 7.9 8.8 10 10.5
6 max. wheel load(t) 2.8 4.6 4.3 5.6 7.7 10 12
7 ground requirement cement floor steel plate ground
8 table size(mm) 3000x2000 3600x2000 4000x2200 4500x2200 5000x2200 5500x2300 6000x2300
9 height of the whole cart(mm) 450 530 600 600 650 700 700
10 ground clearance(mm) 50
11 (mm)wheels base 1500 1700 1800
12 (mm)axles distance 2500 3100 3400 3900 4300 4800 5200
13 turning radius(mm) 2501 3101 3401 3901 4301 4801 5201
14 turning type turning while driving with no stop
15 control method for turning control button
16 turning structure mechanical
17 motor power(Kw) 3.5 5 6 7 10 12 15
18 (mm)wheel diameter Ф300(4) Ф350(4) Ф400(4) Ф400(6) Ф500(6)
19 wheel material ZG55+hydropur ture
20 running speed(m/min) 0-15 0-12
21 brake principle electric magnetic brake
22 ground balance mechanical automatic adjustment
23 operation method +with wire or no wire
24 battery model D-250 24 D-330 24 D-400 24 D-440 24 D-250 36 D-330 36 D-440 36
25 battery maintainance free of maintainance
26 charger's installation installed on cart split-type
27 charger function automatic charging
28 cart color +yellow and warning sign
29 control 3-0.3m,automatic stop for obstacles
30 warning equipment sound and light
31 other functions turning light,night light and power display

Company Profile


5. Company and Customers' Visit
Henan Perfect Handling Equipment Co., Ltd. Our company is specializing in the Design and Manufacture of transport system to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items.

6.Transportation ---Material Transfer Solution
7. Q&A
Will A Transfer Cart Be A Good Solution?
A good question to ask since there are many material handling solutions on the market! Which one is the right choice? For starters, transfer carriages are moveable platforms used for the horizontal movement of materials, assemblies, and other items. Consideration must be given to the weight of the load and the travel requirements for the application.
What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carriages can be dedicated to specific work place activities such as shuttling materials. This often makes the carriages more available for use. Transfer carriages are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carriages are an excellent affordable choice for their ability to handle heavy loads. Transfer carriages are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the carriage deck can be customized to suit specific loads.
What Product Handling Applications Use Transfer Cart?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
