Customized Electric Turntable Rail Transfer Cart for Seamless Cargo Loading Systems
Customized Electric Turntable Rail Transfer Cart for Seamless Cargo Loading Systems
Customized Electric Turntable Rail Transfer Cart for Seamless Cargo Loading Systems
Customized Electric Turntable Rail Transfer Cart for Seamless Cargo Loading Systems
Customized Electric Turntable Rail Transfer Cart for Seamless Cargo Loading Systems
Customized Electric Turntable Rail Transfer Cart for Seamless Cargo Loading Systems
Customized Electric Turntable Rail Transfer Cart for Seamless Cargo Loading Systems
Customized Electric Turntable Rail Transfer Cart for Seamless Cargo Loading Systems
Specifications
MOQ :
1 Piece
Price :
US$3000-3500
Place of Origin :
Xinxiang
Brand Name :
BETTER
Packaging Details :
Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit.
Delivery Time :
15-30 days
Payment Terms :
L/C,T/T
Supply Ability :
50 Sets/Month
Model Number :
BWT
Product Name :
Battery-Power Transfer Cart
Usage :
Heavy Duty Material Transportation
Load Capacity :
1-300ton
Special Function :
Explosion, Heat-Resistant, Lifting, Customized
Material :
Steel
Transport Package :
The Whole Cart Will Be Packed by Tarp.
Specification :
2000*2000*500
Trademark :
BETTER
Origin :
Xinxiang
HS Code :
84289090
Production Capacity :
50 Sets/Month
Description
Customized Electric Turntable Rail Transfer Cart for Seamless Cargo Loading Systems

1.Introduction of Electric Handling Bogie

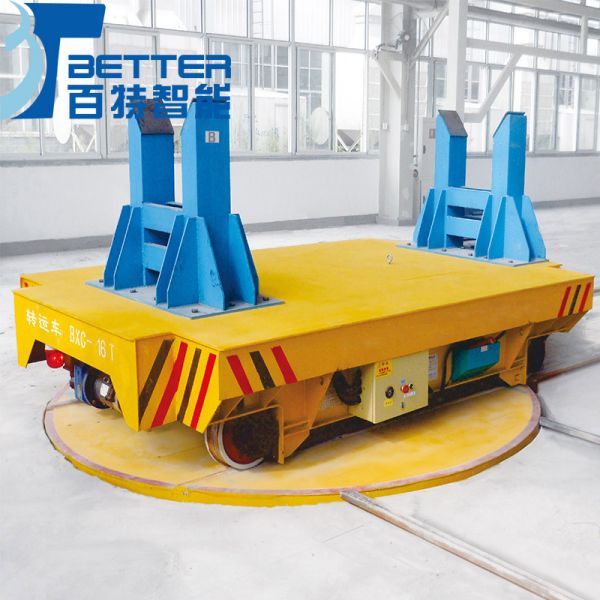

The turntable rail transfer car is a kind of handing system ,which can make the rail car turn 90 degree on rails .Principle: transfer car runs on the turntable ,which will automatically rotate or manually rotate to realize the joint with vertical rails .After turnable rotating ,the transfer car can run along the vertical rails .The handing solution can be applied in the occasion such as ring rails ,etc. The turnable system runs steadily and has the features such as high rail jointing accuracy and can meet full automatic electrical control.
2.Product detail

3.Parameter of turntable transfer cart

Model BWT-2T BWT-5T BWT-10T BWT-15T BWT-20T BWT-30T BWT-45T BWT-60T
Rated Load(T) 2 5 10 15 20 30 45 60
Table Size(mm) 2000*1500 2500*1500 3000*2000 3200*2000 4000*2000 5000*2200 6000*2400 6000*2500
Height of Trailer (mm) 500 600 700 750 750 800 850 950
Wheel Quantity 4 4 8 8 8 12 12 12
Tire Specification 254*102 305*165 559*254 559*356 22*9-10 22*9-10 22*10-16 22*14-16
Tire Material Polyurethane Solid Wheel, Press-on Solid Tire
Frame Material Q235 Q235 Q235 Q235 Q235 Q345 Q345 Q345
Color Customized
Speed(km/h) 0-20 0-20 0-20 0-20 0-15 0-15 0-15 0-10

4.Advantages of Electric Handling Bogie
Low noise It causes low noise level.
Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
Easy for operation These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.

5. Customizable of Electric Handling Bogie
Appearance:Table Size, Table Material, Table type, Rated Load, Color, Wheel Base,Detachable structure etc.
Special Function: Hydraulic Lift Table, Dumpling, Climbing, V shape, PLC control system, Automatic Positioning, clamping device, Anti-explosion, Heat-proof function, Weighting system etc.
Safety Device: Alarm light, Emergency stop button, Radar detector, Buffer, V shape support, Guardrails etc.
Special Design: Round corner, Hold pendant box, Lifting hole etc.

6.Application of Electric Handling Bogie
Uses of heavy industrial transfer carts:
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.

7.Applicable sites of Electric Handling Bogie
BETTER conceives and manufactures a wide range of railway guided transfer carts, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many others!


8. Factory and Delivery
Customized Electric Turntable Rail Transfer Cart for Seamless Cargo Loading Systems

9. Q&A
Will A Transfer Cart Be A Good Solution?
A good question to ask since there are many material handling solutions on the market! Which one is the right choice? For starters, transfer carts are moveable platforms used for the horizontal movement of materials, assemblies, and other items. Consideration must be given to the weight of the load and the travel requirements for the application.
What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
