Motorized Transfer Cart for Handling Material Rail Trolley Handling Railer
Motorized Transfer Cart for Handling Material Rail Trolley Handling Railer
Motorized Transfer Cart for Handling Material Rail Trolley Handling Railer
Motorized Transfer Cart for Handling Material Rail Trolley Handling Railer
Motorized Transfer Cart for Handling Material Rail Trolley Handling Railer
Motorized Transfer Cart for Handling Material Rail Trolley Handling Railer
Motorized Transfer Cart for Handling Material Rail Trolley Handling Railer
Motorized Transfer Cart for Handling Material Rail Trolley Handling Railer
Motorized Transfer Cart for Handling Material Rail Trolley Handling Railer
Motorized Transfer Cart for Handling Material Rail Trolley Handling Railer
Motorized Transfer Cart for Handling Material Rail Trolley Handling Railer
Motorized Transfer Cart for Handling Material Rail Trolley Handling Railer
Specifications
MOQ :
1 Piece
Price :
US$3000-3500
Place of Origin :
Xinxiang
Brand Name :
BETTER
Packaging Details :
Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit.
Delivery Time :
15-30 days
Payment Terms :
L/C,T/T
Supply Ability :
50 Sets/Month
Model Number :
BDG
Product Name :
Battery-Power Transfer Cart
Usage :
Heavy Duty Material Transportation
Load Capacity :
1-300ton
Special Function :
Anti-Explosion,Heat-Resistant,Lifting,Customized
Material :
Steel
Transport Package :
The Whole Cart Will Be Packed by Tarp.
Specification :
2000*2000*500
Trademark :
BETTER
Origin :
Xinxiang
HS Code :
84289090
Production Capacity :
50 Sets/Month
Description
Motorized Transfer Cart for Handling Material Rail Trolley Handling Railer

Product Description

The Motorized Transfer Cart for material handling, also known as a rail trolley or railer, is a fundamental and versatile electric vehicle used for industrial logistics. It operates on fixed tracks to transport raw materials, work-in-progress goods, or finished products between different workstations, assembly lines, and storage areas within a facility. Its electric drive system ensures clean, quiet, and efficient operation, making it ideal for maintaining a controlled factory environment. By providing a reliable and organized flow of materials, this equipment significantly enhances workshop efficiency, reduces manual labor, improves safety, and optimizes the overall production workflow. It is a cornerstone of modern internal logistics systems.

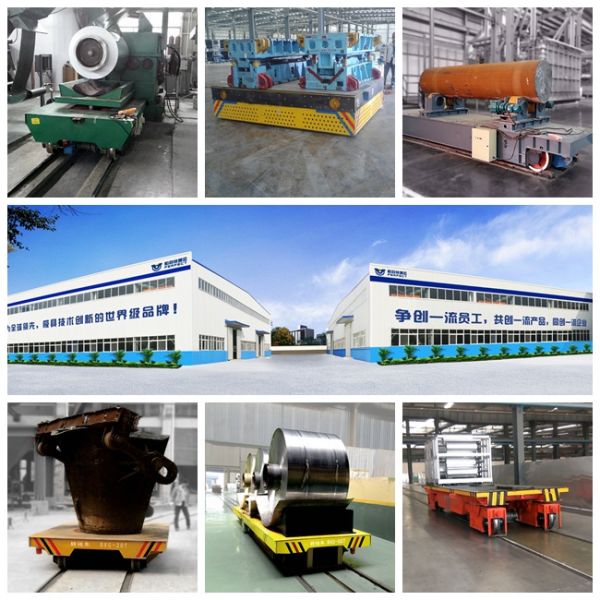

Detailed Photos

Motorized Transfer Cart for Handling Material Rail Trolley Handling Railer

Product Parameters

Model BDG-2t BDG-5t BDG-10t BDG-16t BDG-20t BDG-25t BDG-30t BDG-40t BDG-50t BDG-63t BDG-80t BDG-100t BDG-150t
Rated Load(t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size (mm) Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 450 500 550 550 600 600 650 650 700 800 900 1200
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter (mm) 270 270 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed (m/min) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-18
Motor Power(kw) 0.8 0.8 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Transformer Power(KVA) 3 3 5 6.8 6.8 6.8 10 10 10 20 20 30 30
Transformer Quantity 1 1 1 1 1 1 1 1 1 1 1 1 1
Running Distance(m) 70 70 70 70 70 70 70 60 50 50 50 50 50
Max Wheel Load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100

FAQ


What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
How can Transfer Carts be customized?
Please tell us:
What load or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.

Our Advantages

---- Low noise It causes low noise level.
---- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
---- Easy for operation These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---- Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
---- Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.

Packaging & Shipping

*For lenght is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
* If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
