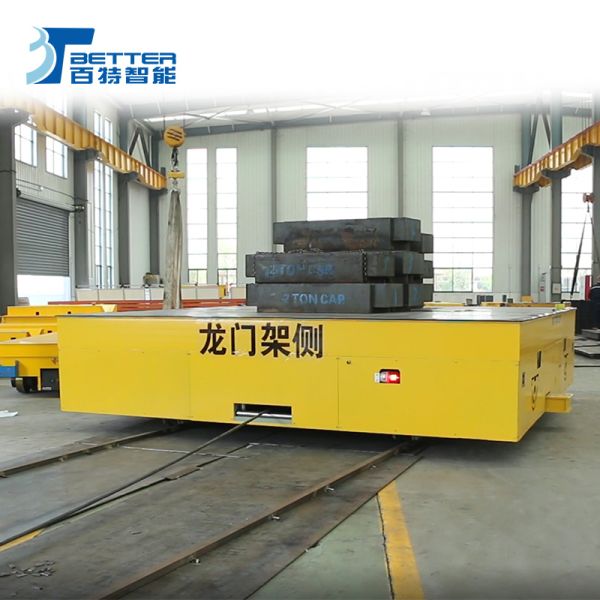

Heavy Cargo Transport Self-Propelled Rail Flat Transfer Cart Work with Crane
Heavy Cargo Transport Self-Propelled Rail Flat Transfer Cart Work with Crane
Heavy Cargo Transport Self-Propelled Rail Flat Transfer Cart Work with Crane
Heavy Cargo Transport Self-Propelled Rail Flat Transfer Cart Work with Crane
Heavy Cargo Transport Self-Propelled Rail Flat Transfer Cart Work with Crane
Heavy Cargo Transport Self-Propelled Rail Flat Transfer Cart Work with Crane
Heavy Cargo Transport Self-Propelled Rail Flat Transfer Cart Work with Crane
Heavy Cargo Transport Self-Propelled Rail Flat Transfer Cart Work with Crane
Heavy Cargo Transport Self-Propelled Rail Flat Transfer Cart Work with Crane
Heavy Cargo Transport Self-Propelled Rail Flat Transfer Cart Work with Crane
Specifications
MOQ :
1 Piece
Price :
US$3000-3500
Place of Origin :
Xinxiang
Brand Name :
BETTER
Packaging Details :
Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit.
Delivery Time :
15-30 days
Payment Terms :
L/C,T/T
Supply Ability :
50 Sets/Month
Model Number :
BDG
Product Name :
Battery-Power Transfer Cart
Usage :
Heavy Duty Material Transportation
Load Capacity :
1-300ton
Special Function :
Anti-Explosion,Heat-Resistant,Lifting,Customized
Material :
Steel
Transport Package :
The Whole Cart Will Be Packed by Tarp.
Specification :
2000*2000*500
Trademark :
BETTER
Origin :
Xinxiang
HS Code :
84289090
Production Capacity :
50 Sets/Month
Description
Heavy Cargo Transportation Self-Propelled Rail Flat Transfer Cart Work With Crane

Product Description

The motorized trackless material transport trolley is one heavy duty material handling equipment, this transport trolley don't need lay any track before working. This motorized transport trolley could work on flat ground for turning with 360 degree,So it could turn envy in narrow space. This kind material transport trolley could work through different workshops and warehouses. This motorized transport trolley is easy to be operated with remote control. Workers just need to press some simple buttons to make this motorized transport trolley working.

The load capacity of this electric transport trolley is up to 300ton strong load-bearing capacity, it also is added with emergency stop button and over-speed protection when detecting any obstacle.if need, we also could add with hydraulic lifting system, anti-explosion system, V shape steel structure, and so on.

Detailed Photos

Heavy Cargo Transport Self-Propelled Rail Flat Transfer Cart Work with Crane

Product Parameters

Model BDG-2t BDG-5t BDG-10t BDG-16t BDG-20t BDG-25t BDG-30t BDG-40t BDG-50t BDG-63t BDG-80t BDG-100t BDG-150t
Rated Load(t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size (mm) Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 450 500 550 550 600 600 650 650 700 800 900 1200
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter (mm) 270 270 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed (m/min) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-18
Motor Power(kw) 0.8 0.8 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Transformer Power(KVA) 3 3 5 6.8 6.8 6.8 10 10 10 20 20 30 30
Transformer Quantity 1 1 1 1 1 1 1 1 1 1 1 1 1
Running Distance(m) 70 70 70 70 70 70 70 60 50 50 50 50 50
Max Wheel Load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100

FAQ


What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
How can Transfer Carts be customized?
Please tell us:
What load or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.

Our Advantages

---- Low noise It causes low noise level.
---- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
---- Easy for operation These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---- Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
---- Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.

Packaging & Shipping

*For lenght is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
* If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.

Certifications
