Specifications
MOQ :
1 Piece
Price :
US$3000-3500
Place of Origin :
Xinxiang
Brand Name :
BETTER
Packaging Details :
Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit.
Delivery Time :
15-30 days
Payment Terms :
L/C,T/T
Supply Ability :
50 Sets/Month
Model Number :
BDG
Product Name :
Battery-Power Transfer Cart
Usage :
Heavy Duty Material Transportation
Load Capacity :
1-300ton
Special Function :
Anti-Explosion,Heat-Resistant,Lifting,Customized
Material :
Steel
Transport Package :
The Whole Cart Will Be Packed by Tarp.
Specification :
2000*2000*500
Trademark :
BETTER
Origin :
Xinxiang
HS Code :
84289090
Production Capacity :
50 Sets/Month
Description

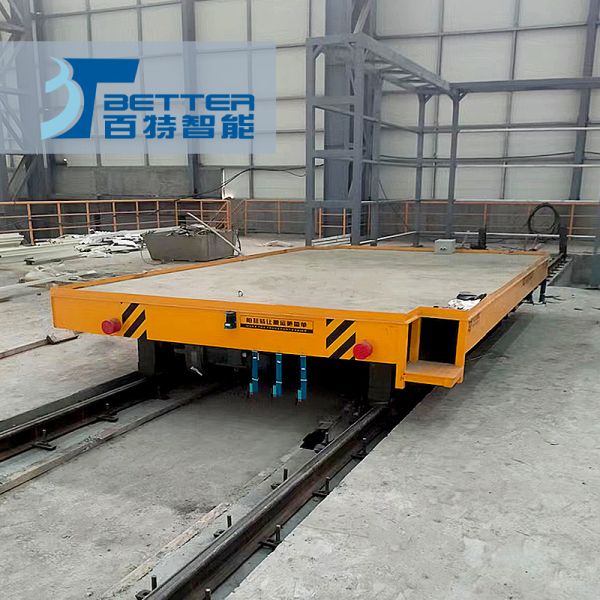

Heavy Load Cargo Electric Rail Transfer Cars for Factory Transportation

Product Description

The rail electric flat cars is a kind of electric transportation equipment operated by humans. This transport vehicles have safety protection and various loading and unloading functions. They are powered by lead-acid batteries or lithium batteries.
This series of electric flat cars have features of high safety and maneuverability, with the advantages of smooth operation, high precision, fast speed, high flexibility, large load capacity and high efficiency. There is no need to lay steel rails, and the walking route is unrestricted, which is convenient for transportation in the workshop. It enables you to "handle with ease" throughout the entire handling process, saving your labor and production costs. It is widely applied in industries such as aerospace, manufacturing, automotive industry, heavy manufacturing, mold manufacturing, construction machinery, shipbuilding, port cargo yards, steel plate distribution, steel metallurgy, and mining transportation.

Detailed Photos

Heavy Load Cargo Electric Rail Transfer Cart for Factory Transportation

Heavy Load Cargo Electric Rail Transfer Cart for Factory Transportation

Product Parameters

Model BDG-2t BDG-5t BDG-10t BDG-16t BDG-20t BDG-25t BDG-30t BDG-40t BDG-50t BDG-63t BDG-80t BDG-100t BDG-150t
Rated Load(t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size (mm) Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 450 500 550 550 600 600 650 650 700 800 900 1200
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter (mm) 270 270 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed (m/min) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-18
Motor Power(kw) 0.8 0.8 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Transformer Power(KVA) 3 3 5 6.8 6.8 6.8 10 10 10 20 20 30 30
Transformer Quantity 1 1 1 1 1 1 1 1 1 1 1 1 1
Running Distance(m) 70 70 70 70 70 70 70 60 50 50 50 50 50
Max Wheel Load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100


Heavy Load Cargo Electric Rail Transfer Cart for Factory Transportation

FAQ


How can Transfer Carts be customized?
Please tell us:
What load or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.

Our Advantages

---- Low noise It causes low noise level.
---- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.

---- Easy for operation These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---- Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
---- Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.

Packaging & Shipping

Heavy Load Cargo Electric Rail Transfer Cart for Factory Transportation


Certifications

Heavy Load Cargo Electric Rail Transfer Cart for Factory Transportation
