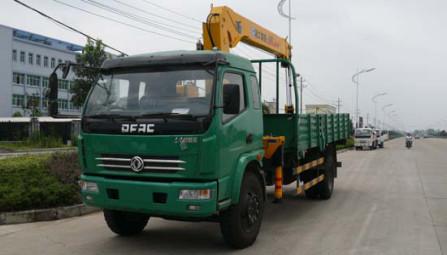

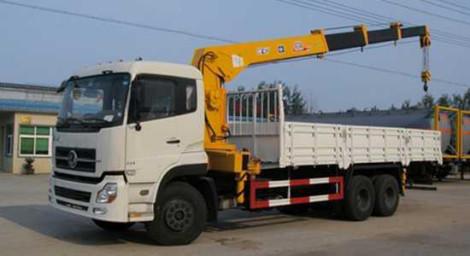

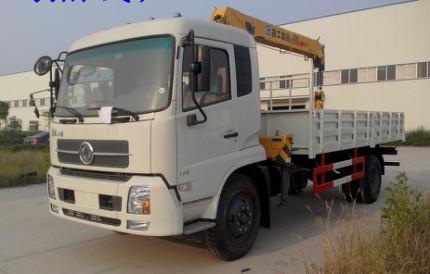

Dongfeng Truck-mounted Crane
Dongfeng Truck-mounted Crane
Dongfeng Truck-mounted Crane
Dongfeng Truck-mounted Crane
Dongfeng Truck-mounted Crane
Dongfeng Truck-mounted Crane
Specifications
Brand Name :
DONGFENG
Model Number :
DFL1120B
Place of Origin :
China
MOQ :
1 unit
Price :
USD 23,000 ~125,000 /Unit
Delivery Time :
25-30 days
Lifting Capacity :
2-25ton
Drive mode :
4X2, 6X4, 8X4
Description
Specification
Truck Drive mode 4×2
Chassis DFL1120B
Engine Model CumminsISDe180 30
Type 4-cylinder in line, turbocharging, electrical control common-rail engine
Max. power(Kw/rpm) 136/2500
Max. torque(N.m/rpm) 650/1200-1700
Bore /Stroke(mm) 107×124
Displacement(ml) 4500
Type of fuel Diesel
Compression ratio 17.3:1
Dimensions Overall dimension (mm) 8600×2500×3200
Wheel base (mm) 4700
Front/Rear tread(mm) 1880/1860
Mass Payload (Kg) 5930
Curb weight(Kg) 5880
G.V.W (Kg) 12005
Crane Crane Weight (Kg) 1500
Max. Lifting Capacity (Kg) 4000
Max. Lifting Moment (T.M) 20(Folding)
Lifting Capacity/Working Radius (Kg/m) 2375/7.815
3270/6.050
4285/4.670
6750/3.000
Max. Working Radius (m) 7.815
Max. Working Height (m) 10
