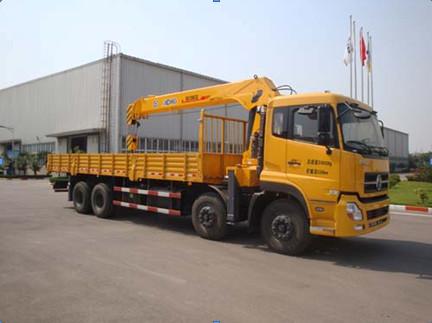

25ton truck mounted crane/ boom truck/ crane truck/ 8X4
25ton truck mounted crane/ boom truck/ crane truck/ 8X4
Specifications
Brand Name :
DONGFENG
Model Number :
DFL1311A3
Place of Origin :
China
MOQ :
1 unit
Price :
FOB Shanghai: USD125,000 to 128,000
Supply Ability :
200 unit/year
Delivery Time :
25 work days
Lifting weight :
25 ton
Drive mode :
8x4
Engine :
Cummins
Description
Drive mode8×4
EngineModelCummins C260 33
Type6-cylinder in line, turbocharging and inter cooling, mechanical injection bump, built-in EGR
Max. power(Kw/rpm)191/2200
Max. torque(N.m/rpm)1025/1400
Cylinder bore ×Stroke(mm)114×135
Displacement(ml)8300
Type of fuelDiesel
Compression ratio18:1
CabD310-H1high roof, double sleeper
Capacity3 persons
GearboxTypeFast 9JS119T-B
Max. torque(N.m)1190
ClutchΦ430mmpush-type diaphragm spring clutch
Frame H×W× T(mm)300×80×(8+4)
AxlesFront axle(Kg)5000×2
Rear axle(Kg)10000×2
No. of spring leaves8/8/10
TyreSize11.00R20
Air conditionerA/C
DimensionsOverall dimension(mm)11980×2500×3200
Inner dimension(mm)9400×2294×800
Wheel base(mm)1950+4500+1300
Front/Rear tread(mm)1940/1860
App./Dep. angel (°)28/12
Min. ground clearance(mm)240
PerformanceMax. speed(Km/h)90
MassPayload(Kg)26,000
Curb weight(Kg)12,505
G.V.W(Kg)38,505
Max. Lifting capacity25000kgRated hydraulic pressure---28MPa
Max. Lifting moment45T.mOil tank capacity--250L
Recommended power50KWrotation angle--360°
Lifting height14MWorking radius---11.4m
Dead weight6800KGInstallation space--1.6m
Recommended hydraulic flow50L/min
