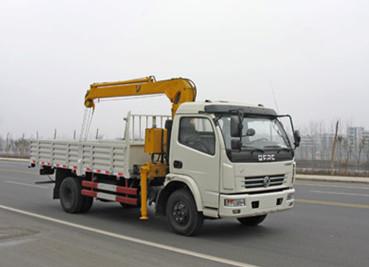

3 ton truck mounted crane-straight arm crane
3 ton truck mounted crane-straight arm crane
Specifications
Brand Name :
Dongfeng
Model Number :
E31-534
Place of Origin :
China
MOQ :
1 unit
Price :
FOB Shanghai: 22800
Supply Ability :
300units/year
Delivery Time :
20 working days
Lifting weight :
3.2ton
Wheel base :
3300mm
Crane brand :
XCMG
Description

Model

 E31-534
Wheelbase(mm) 3300
Engine model Chaochai CY4102-C3D
Engine power(Kw) 80
Engine displacement(ml) 3756
Gearbox A100
Frame(mm) 188
Front/Rear axle(T) 2.5/3.5
Tyre 7.00-16
Payload(Kg) 4500
Curb weight(Kg) 2800
G.V.W.(Kg) 7300
Overall dimensions(mm) 5995×2090×2260
Cab one row
Power supply(V) 24
Braking system air brake without spring
Steering system mechanical
A/C optional
Aluminum alloy rim optional
Central lock optional
Crane 3.2T Max. Lifting Capacity (Kg) 3200
Max.Lifting Moment(T·M) 6.7
Recommended Power (kw) 10
Max.Lifting range(m) 5.2
Max.Lifting height(m) 6.8
Max.Outrigger span (m) 3.3
Max.Hydraulic system flow (L/min) 25
Rated pressure of hydraulic system (MPa) 20
Fule tank Capacity (L) 60
Rotation angle (°) 370
Crane weight(kg) 1160
Installation space (mm) 850
