120 Hp 4*2 Tipper Dump Truck Color Customized With Famous Engine / Gearbox
120 Hp 4*2 Tipper Dump Truck Color Customized With Famous Engine / Gearbox
120 Hp 4*2 Tipper Dump Truck Color Customized With Famous Engine / Gearbox
120 Hp 4*2 Tipper Dump Truck Color Customized With Famous Engine / Gearbox
Specifications
Brand Name :
Dongfeng
Model Number :
4*2 light dump truck
Certification :
ISO / CCC
Place of Origin :
China
MOQ :
1 UNIT
Price :
11000$-2000$
Payment Terms :
L/C, T/T
Supply Ability :
1000 UNIT PER MONTH
Delivery Time :
30 workdays
Packaging Details :
no packaging
color :
customer request
Engine :
cummins
horspower :
120hp
overall length :
6000mm
overall width :
2300mm
Overall height :
2800mm
Wheel Track (front/rear) :
1810 / 1800mm
Driving Type :
4×2
Pay Load Capacity (kg) :
5,000-10,000
Cabin: :
B07
Displacement :
4212ml
Description

4*2 dump truck 120hp equip with famous engine and famous gearbox

Model: 4*2
Manufacture year 2018
Engine Model YC4D120-33
Type Diesel, Vertical, inline, water cooled, four stroke, direct injection
Max. Engine Output (HP or KW/rpm) 90KW(120 HP)
Max. Tourque (N.m/rpm): 350 Nm @ 1400-1800 rpm
Cylinder Displacement L/cc 4212ml
Emission: Euro III
Gear Box DONGFENG 4150 Gear, F:L5+H5 & R:L1+H1; 10 forward gears (5 fast + 5 slow speeds) 2 reverse gears)
Suspension Strengthen spring
Brakes Front&Rear drum,dual-circult service brakding system
Clutch
Type: Single,dry,diaphragm spring clutch⊙330
Overall Dimensions (LxWxH) mm: 6160×2300×2850mm 40.4CBM
Cargobox L*W*H (MM) 4200*2150*1200 10.8CBM (side: 2mm, floor: 3mm, Middle Lifting)
Wheel Track (front/rear) mm: 1810 / 1800mm
Overhang (Front/Rear) mm: 1180 / 1270mm
Driving Type: 4×2
Wheel Base (mm): 3550
Min ground clearence (mm): 226
Vehicle Weight
Curb weight (kg): 6500kg
Pay Load Capacity (kg): 5,000-10,000
Gross vehicle weight (kg): 16500kg
Front Axle Meite 2.7T Steering Axle
Rear Axle Meite 8T Drive Axle

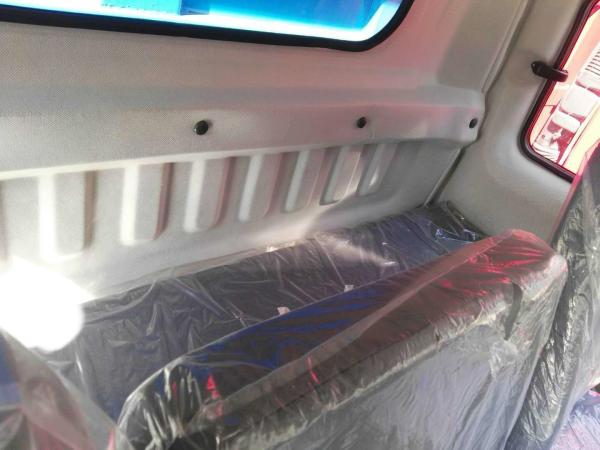

Cabin: B07 New vertical headlights, LHD, three-seater + one-seater cab with air conditioning.
Steering power steering gear
Wheels & Tyres 8.25-20R Nylon tire, 6+1 units
Max speed (km/h): 90
