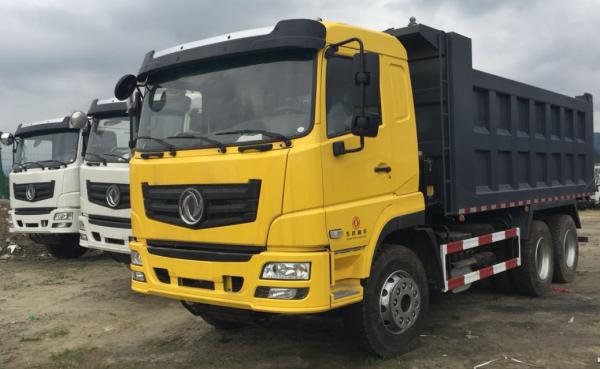

10 Wheel Mining Dump Truck 6*4 Drive Mode 375 Hp Euro 4 Emission Standard
10 Wheel Mining Dump Truck 6*4 Drive Mode 375 Hp Euro 4 Emission Standard
Specifications
Brand Name :
DF
Model Number :
DFS3258GL1
Certification :
CCC/ISO
Place of Origin :
China
MOQ :
1
Price :
US$ 40000-US$50000
Delivery Time :
20 WORK DAYS
Packaging Details :
NUDE PACKAGING
Name :
10 wheels 6*4 dump truck
Color :
withe/yellow/red
Engine :
Cummins L375 40
Type of Fuel :
Diesel
Cab :
D310-S1
Gearbox :
12JS160T
Description

Dongfeng Dump Truck 6*4 drive mode 375hp Euro 4 Emission standard

Drive mode 6×4
Engine Model Cummins L375 40
Type 6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, bulit-in EGR
Max. power(Kw/rpm) 275/2200
Max. torque(N.m/rpm) 1550/1400
Displacement(ml) 8900
Type of Fuel Diesel
Compression ratio (16.6±0.5):1
Cab D310-S1 Single berth
Capacity 3 persons
Gearbox Type 12JS160T
Max. torque / Rated speed (N.m/rpm) 1600/2600
Gear ratio 12 forward & 2reverse 15.53 12.08 9.39 7.33 5.73 4.46 3.48 2.71 2.10 1.64 1.28 1.00 /14.86 3.33
Clutch Φ430mm diaphragm spring clutch
Frame Height×Width× Thickness(mm) 300×90×(8+8)
Frame width 940 (front ), Frame width 860 ( rear )
No of Spring leaves 10/12
Tyre Size 12.00R20
Air conditioner A/C
Dimensions Overall dimension (mm) 8350×2500×3500 (73CBM)
Inner dimension (mm) 5500x2450x1500 (Bottom: 8mm; Side: 6mm) (20 m3)
Wheel base (mm) 3800+1450
Front/Rear tread(mm) 2040/1850
App./Dep. angel (°) 30/26
Performance Max. speed (km/h) 85
Max. gradeability(%) 30
Min. turning diameter (m) 16.5
hydraulic cylinder front
Alex Front Alex Loading Weight(Kg) 7000
Front Alex Loading Weight(Kg) 13000x2
Mass Payload (Kg) 33,800
Curb weight (Kg) 13,910
G.V.W. (Kg) 47,710
