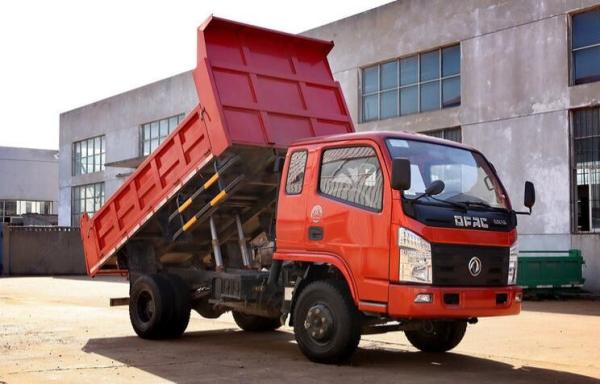

Light Duty Mining Dump Truck Dongfeng EQ3040GLN 3.5 T Loading Capacity
Light Duty Mining Dump Truck Dongfeng EQ3040GLN 3.5 T Loading Capacity
Specifications
Brand Name :
Dongfeng
Model Number :
EQ3040GLN
Certification :
ccc
Place of Origin :
China
MOQ :
1 unit
Supply Ability :
1000 unit per month
Delivery Time :
20 workdays
Packaging Details :
no packaging
name :
dongfeng dump truck
Description

Dongfeng 3.5T light dump truck right hand drive/ left hand drive

Model: EQ3040GLN
Engine
Model CY4102-C3F
Type Diesel, Direct Injection,N/B with water Intercooler
Max. Engine Output (HP or KW/rpm) 66 KW(90 HP)
Max. Tourque (N.m/rpm): 230 Nm @ 1400-1800 rpm
Cylinder Displacement L/cc 3707ml
Emission: Euro 2
Gear Box MT / Forward 5 & Reverse 1
Model LG5S300
Suspension Strengthen spring
Type Spring leaf tablet: 10/10+8
Brakes Front&Rear drum,dual-circult service brakding system
Clutch
Type: Single,dry,diaphragm spring clutch⊙330
Overall Dimensions (LxWxH) mm: 5500×2100×2460
Wheel Track (front/rear) mm: 1506 / 1466
Overhang (Front/Rear) mm: 1090 / 1110
Driving Type: 4×2
Wheel Base (mm): 3300
Min ground clearence (mm): 226
Vehicle Weight
Curb weight (kg): 2580
Pay Load Capacity (kg): 3500
Gross vehicle weight (kg): 6080
Volume 3700×2000×600 4.44 CUM
Tipping Angle 45~56°
Cabin: 1+2 seats / 2 doors
Steering Type: power steering gear
Wheels & Tyres Front: Tire Number: 2, Tire Size: 7.00R16
Wheels & Tyres Rear: Tire Number: 4, Tire Size: 7.00R16
Max speed (km/h): 95
