200 Tons Four Axle Trailer , Girder Bridge Trailer For Transport Bridge
200 Tons Four Axle Trailer , Girder Bridge Trailer For Transport Bridge
200 Tons Four Axle Trailer , Girder Bridge Trailer For Transport Bridge
200 Tons Four Axle Trailer , Girder Bridge Trailer For Transport Bridge
200 Tons Four Axle Trailer , Girder Bridge Trailer For Transport Bridge
200 Tons Four Axle Trailer , Girder Bridge Trailer For Transport Bridge
Specifications
Brand Name :
TARZAN
Model Number :
TA2521C1
Certification :
ISO, CCC
Place of Origin :
China
MOQ :
1
Price :
$48000-$56000
Delivery Time :
30 days after receipt of down payment
Packaging Details :
Nude packing
Product name :
Girder transporter trailer
Loading capacity :
200 Tons
Axles :
4 axles for main and aux
Color :
Yellow
Description

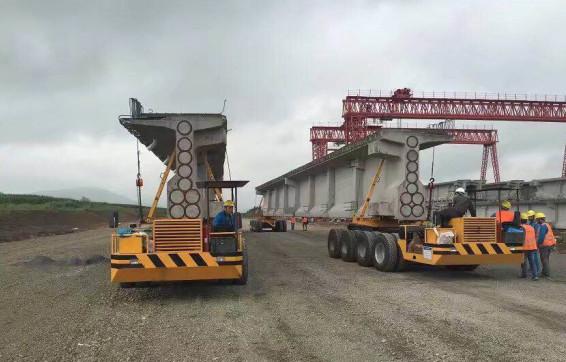

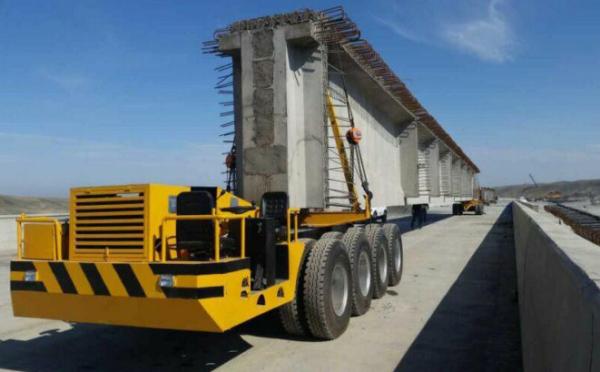

200T 4 axles tire girder transporter trailer for transport bridge

Parameters Unit Description
Loading capacity ≦ 200T
t
Axles / 4 axles for main and aux
Quantity 32 PCS
Tire SIZE 1200R20
Tire steering angle 22°
Main engine Power kW 132kW
Rotational Speed RPM 2200-2400
Aux-cart engine Power kW 7.7kW
Driving direction (Single/Double) Double direction
Shock absorption system

(Yes/No)

 No

Feed beam 1 gear 4.8m/min
1 gear 4.8m/min=0.288km/h
2 gear 17m/min=1.02km/h
3 gear 38m/min=2.28km/h
transport bean
4 gear 46m/min=2.76km/h
5 gear 53m/min=3.18km/h
6 gear 83m/min=4.98km/h
Driving speed R gear 7.55m/min=4.53km/h
1 gear 48.21m/min=2.89km/h
Empty vehicle
2 gear 76.2m/min=4.57km/h
3 gear 128.97m/min=7.74km/h
4 4 gear 324.17m/min=19.45km/h
5 gear 471.67m/min=28.3km/h
6 gear 583.33m/min=35km/h
R gear 60.78m/min=3.65km/h
Main cart dimension (L*W*H)mm 7200×2800×1300
Aux cart dimension (L*W*H mm 5800×2800×1300

Curb weight t 18t
Gearbox Grade 5
Model
Min. Height from the ground / 40cm
Max.Lengthways Grade ability % 7%
Max.Crosswise Grade ability % 3%
Min.Turning radius m 15-20(m)
Steering control / Hydraulic
Brake steering / Air brake
Steering

Main Cart: 2WD DRIVE, 2 AXLES STEERING

Aux Cart: 2 axles capacity, 2 axles steering
