Specifications
Brand Name :
dongfeng
Model Number :
DFA9401JPBLS
Certification :
ISO
Place of Origin :
China
MOQ :
i unit
Price :
11000-14000
Supply Ability :
350 units/month
Delivery Time :
15days after payment
Packaging Details :
nude
Use :
For contianer use
Payload :
50T
Outside dimension L*W*H :
12400*2500*1550 mm
name :
3 axle dump truck
Suspension :
Mechanical/ Air Bag
Axle number & Brand: :
2-4/13T-16T/ FUWA/ BPW
Stain Proofing: :
Sand Blasting with twice
Main beam :
Opting for high strength Q345B steel
Axle :
3 axles *square axle with 13 tons capacity, FUWA brand

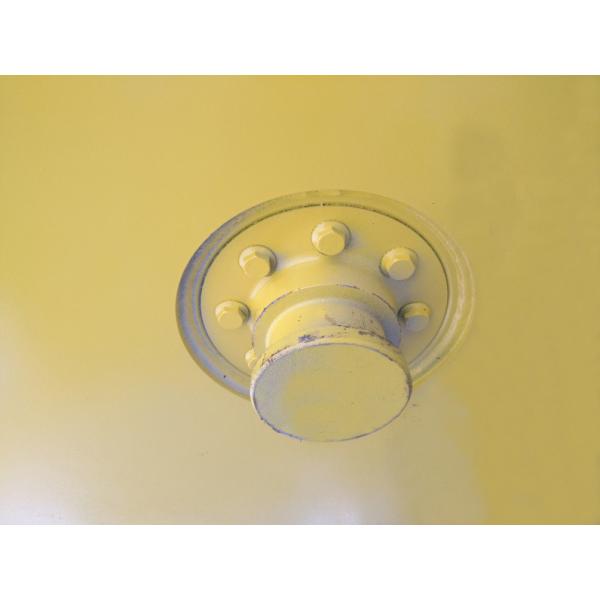

King Pin :
3.5’’(90#) bolting king pin, JOST brand

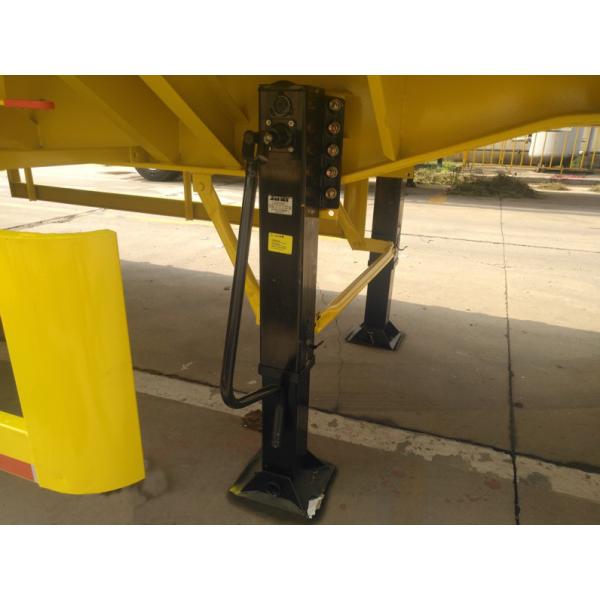

Landing legs :
FUWA manual operation landing legs, one side operation
Tire :
Triangle brand 10.00R20 tire, 13pcs
Function :
Transport 20ft 40ft container
Description
CHINA heavy duty 3 axles 50 ton flat bed tyre exposed semi truck tralier / flat bed truck semi trailer
Product The flat bed semi trailer with twist locks
Curbe weight 7T 　
Dimension(exact size can be depends on the final design) Length 12600mm
Width 2500mm
Height 1000mm
Loading capacity 50T
The Frame The Main beam Material Carbon steel
Upper plate 14mm
Middele Plate 8mm
Down Plate 16mm
Type Q345
The side beam Material 16# channal steel
Type Q235
The anti-skidding bottom plateform Twist lock 8pcs
Pattern Diamond Plate
Thickness 3mm
Running machanism Axle Brand FUWA
Number 3 pcs
Type 13T
Rim Brand 9.0-22.5
Number 13 pcs
Tire Brand Triangle
Number 13 pcs
Type 12.00R22.5-16
Suspension Type Mechanical
Brand heavy duty mechanical suspension
Spring leaf Brand Standard configration
Width 90mm
Thickness 13mm
Layer 10 Layer/set
King pin Brand JOST
Diameter 2 inch
Brake system Air Tank 45L
Brake chamber Four double
Emergence Brake Valve WABCO
ABS Without
Landing Gear Brand Standard
Type 28T
Electrical Voltage 24V
Light LED Light
Receptacal 7 ways (7 wires harness)
Light color Side marker lamp Red
Rear lamp Red
Turn single lamp Red

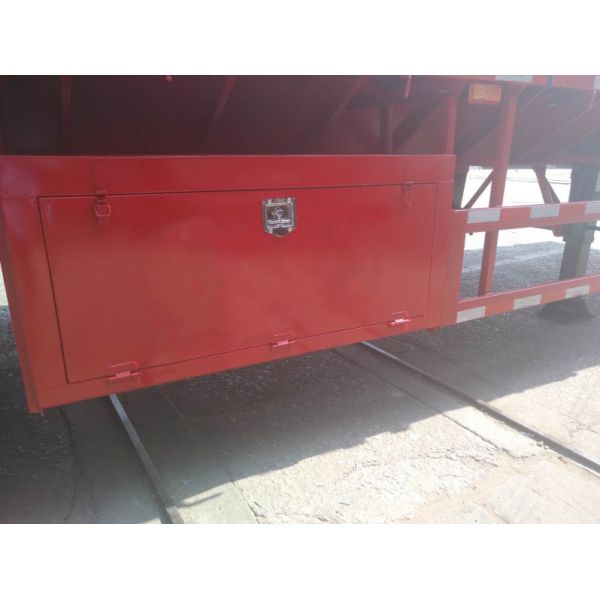

Accessories Tool box One piece, 1m×0.5m×0.5m (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

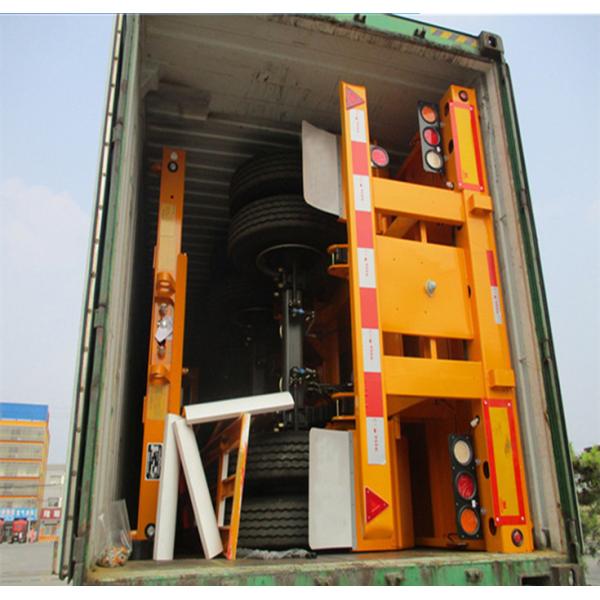

Shipping Term By container 　
