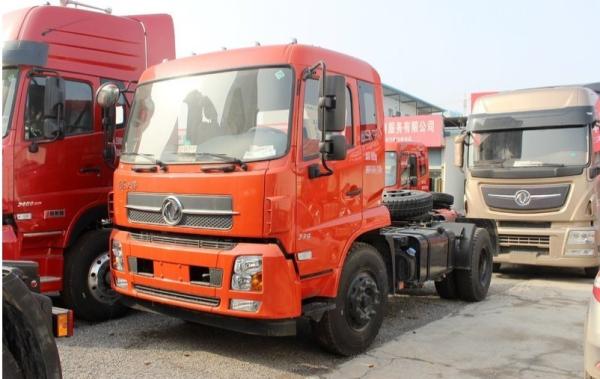

Red 4X2 Tractor Head Truck Horsepower DFL4180A5 With EURO V Emission Standard
Red 4X2 Tractor Head Truck Horsepower DFL4180A5 With EURO V Emission Standard
Red 4X2 Tractor Head Truck Horsepower DFL4180A5 With EURO V Emission Standard
Red 4X2 Tractor Head Truck Horsepower DFL4180A5 With EURO V Emission Standard
Specifications
Brand Name :
Dongfeng
Model Number :
DFL4180A5
Place of Origin :
China
MOQ :
1 unit
Price :
FOB Shanghai: USD33,700 to 34, 700
Supply Ability :
300 units/year
Delivery Time :
20 work days
Drive mode :
4X2
Engine brand :
Cummins
Horse power :
260hp
name :
trailer head truck
Description

Drive mode 4×2
Engine Model Cummins C260 20
Type 6-cylinder in line, turbocharging, air cooling, inter cooling, electrical control diesel engine
Max. power(Kw/rpm) 191/2200
Max. torque(N.m/rpm) 1125/1400
Cylinder bore ×Stroke(mm) 114×135
Displacement(ml) 8300
Type of fuel Diesel
Compression ratio 18:01
No. of valves 2
Cab D310-L1 Single berth, lengthen
Capacity 3 persons
Gearbox Type Fast RT-11509C
Max. torque(N.m) 1490
Gear ratio 12.42 8.62 6.08 4.53 3.36 2.47 1.81 1.35 1.00
Clutch Φ430mm push-type diaphragm spring clutch
Frame Height×Width× Thickness(mm) 300×90×(8+6)
Frame width 940 (front ), Frame width 810 ( rear )
No. of spring leaves 8/11+3
Tyre Size 11.00R20
Air conditioner A/C
Dimensions Overall dimension (mm) 5990 ×2490×3700
Wheel base (mm) 3500
Front/Rear tread(mm) 1986/1860
App./Dep. angel (°) 20/40
Performance Max. speed(Km/h) 90
Max. gradeability(%) 30
Min. turning diameter(m) 15
Fuel consumption(L/100Km) 35
Mass Curb weight(Kg) 7100
G.V.W (Kg) 18000
Trailer G.V.W(Kg) 34500
