Dongfeng Suction Sewage Truck/ 4X2 chassis/ 10 cubic meter tank volume/180hp
Dongfeng Suction Sewage Truck/ 4X2 chassis/ 10 cubic meter tank volume/180hp
Specifications
Brand Name :
DONGFENG
Model Number :
DFL1120B
Place of Origin :
China
MOQ :
1 unit
Price :
FOB Shanghai: USD20,000 ~ 40,000 / unit
Supply Ability :
1000 units/year
Delivery Time :
15 work days
Drive mode :
4X2
Engine model :
CumminsISDe180 30
Horse power :
180hp
Emission standard :
Euro III
sewage tank volume :
10m3
Description

DONGFENG 10m3 Suction Sewage Truck

Advantages:


1. Enough sewage volume degree.
2. Protecting device to prevent the sewage from seeping into the pump body.
3. Volume pump is driven by hand, easy to operate.
4. Hydraulic pump is working synchronously with the volume pump ,very reliable.
5. Discharging by hydraulic system.
6. Beautiful appearance, easy operation and good performance.

Specification:

Drive mode 4×2
Chassis DFL1120B
Engine Model CumminsISDe180 30
Type 136/2500
Power/Displacement(Kw/ml) 4500
Type of fuel Diesel
Tyre Size 9.00-20
Air conditioner A/C
Dimensions Overall dimension (mm) 8600×2500×2830
Wheel base (mm) 4700
Front/Rear tread(mm) 1880/1860
Performance Max. speed(Km/h) 90
App./Dep. angel (°) 20/11
Max. gradability (%) 30
Min.turning diameter(m) 19
Min.ground clearance(mm) 240
Mass Payload (Kg) 5930
Curb weight(Kg) 5880
G.V.W (Kg) 12005
Specifications Tank Volume (m³) 10
Tank overall dimension (mm) 4500×1500
Vacuum Pump Model XD-44
Suitable turning speed(r/m) 500-600
Suitable revolution(min/rpm) 1400
Max.Vacuum Degree(kPa) 93-96
Effictive Suction Length(m) ≥7-20
Fulling time(min) ≤3
Tank lifting time(s) ≤10
Alarm method Electronic alarm

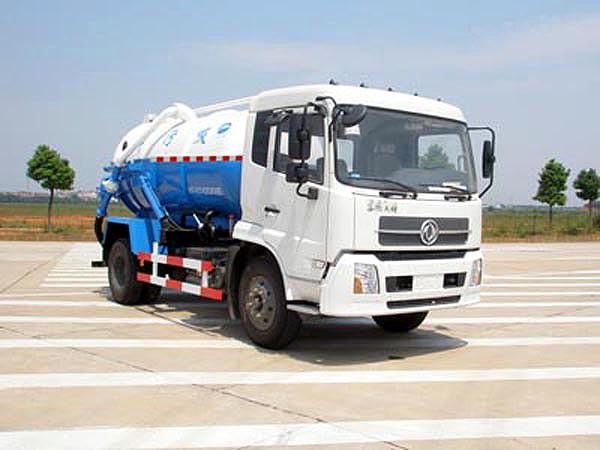

Photos:

Dongfeng Suction Sewage Truck/ 4X2 chassis/ 10 cubic meter tank volume/180hp
