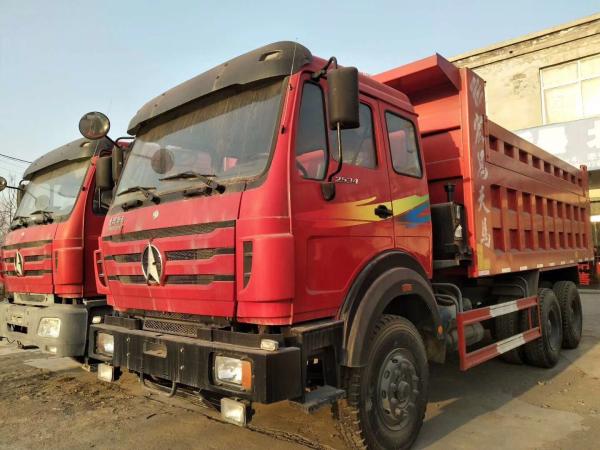

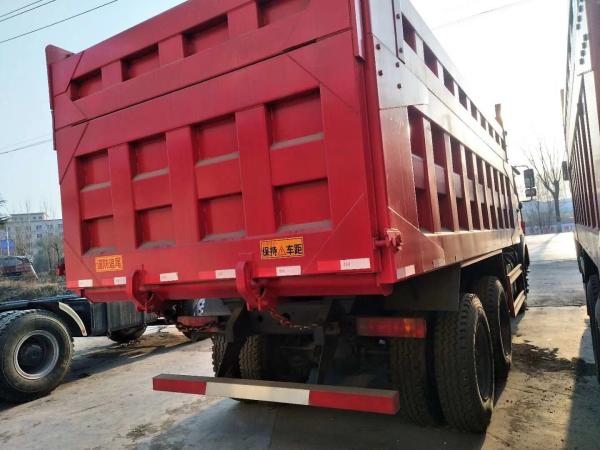

stocked Mining Dump Truck, 6x4 Dump truck,Tipper truck
stocked Mining Dump Truck, 6x4 Dump truck,Tipper truck
stocked Mining Dump Truck, 6x4 Dump truck,Tipper truck
stocked Mining Dump Truck, 6x4 Dump truck,Tipper truck
Specifications
Brand Name :
Beiben
Place of Origin :
China
MOQ :
1
Price :
US$36500-US$39900
Delivery Time :
10 days
Packaging Details :
nude
Truck type :
Tipper Truck
Drive type :
6x4
Wheel number :
10 wheels
Horsepower :
340hp
tipper bucket :
5800*2300*1500 mm
Wheel base :
3800+1450 mm
Lifting system :
HYVA Lifting system
Tire :
11.00R20,
Description

stocked Mining Dump Truck, 6x4 Dump truck,Tipper truck

stocked Mining Dump Truck, 6x4 Dump truck,Tipper truck

Wheel base (mm) 3800+1450
Curb weight (kg) 12200
Max Speed:(Km/h) ≥80
Dimension for Upper body: 5800*2300*1500,Sand body
HYVA Lifting system,Bottom 10 mm,side 8 mm,Front Lifting

Engine

 Model WP10.340E32,water-cooled,four strokes,6 cylinders straight in line,turbocharged,
Fuel type Diesel
Horse Power 340HP
Emission EUROIII
Fuel tanker capacity (L) 400
Clutch Model #430, Single dry frictional disc,Hydraulic boosting
Gearbox Model 9JS150A, mechanical type,Based on Fuller Eaton technology ,9Forward speed gear.
Brake system Service brake Brake gap can be adjusted automatically, double circulation air brake system
Assistant brake Engine exhaust brake
Park brake Potential springs pressing on middle and rear wheels
Steering system Model ZF8098, whole circulation in ball type, hydraulic boosting
Suspension system Front Suspension Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension,
Rear Suspension Non-free standing stabilization spring, stabilization suspension,
Frame Fish belly shape, variable width, variable sections
Front axle (Mercedes Benz Technology) Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13T double reduction driving axle

Ratio:5.263
Tire 11.00R20, radial Tire
Qty of tire 10
Electrical system Battery 2X12V/135Ah
Generator 28V-35A
Starter 5.4Kw/24V
Cab

NG80B,Short Cab without sleeper

Full steel skeleton structure, covered with double layer steel plate;

Can be tipped forwardly;

With Tropical thermostat

Interior trimming:

Integral interior trimming, Integral instrument, digital instrument, radio (with USB interface), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted.
stocked Mining Dump Truck, 6x4 Dump truck,Tipper truck
stocked Mining Dump Truck, 6x4 Dump truck,Tipper truck
stocked Mining Dump Truck, 6x4 Dump truck,Tipper truck
