3 axle 40ft skeleton semi trailers40ft container chassis trailer
3 axle 40ft skeleton semi trailers40ft container chassis trailer
3 axle 40ft skeleton semi trailers40ft container chassis trailer
3 axle 40ft skeleton semi trailers40ft container chassis trailer
3 axle 40ft skeleton semi trailers40ft container chassis trailer
3 axle 40ft skeleton semi trailers40ft container chassis trailer
Specifications
Brand Name :
DongFeng
Model Number :
skeleton semi trailer
Certification :
ISO
Place of Origin :
ShanDong
MOQ :
2 units
Price :
11110USD each unit
Payment Terms :
T/T, Western Union
Supply Ability :
500 unit each month.
Delivery Time :
3-5 days
Packaging Details :
nude
Color :
Red
axle :
3 *13 tons capacity, YORK brand
Dimention :
12400*2490*1400 mm
King Pin :
2.00’’(50#) bolting king pin
Suspension :
tri-axle suspension with equalizers, American design
Steel Spring :
Six sets of 10pcs leaf spring
Rim :
8.25-22.5
Description

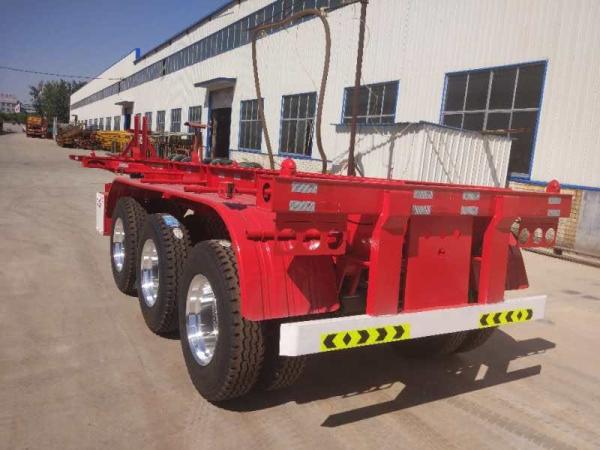

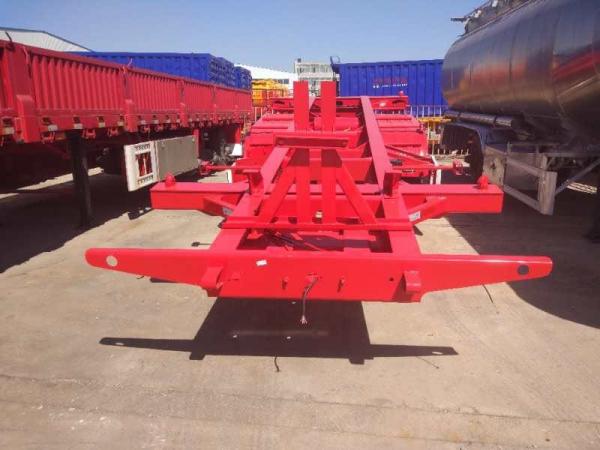

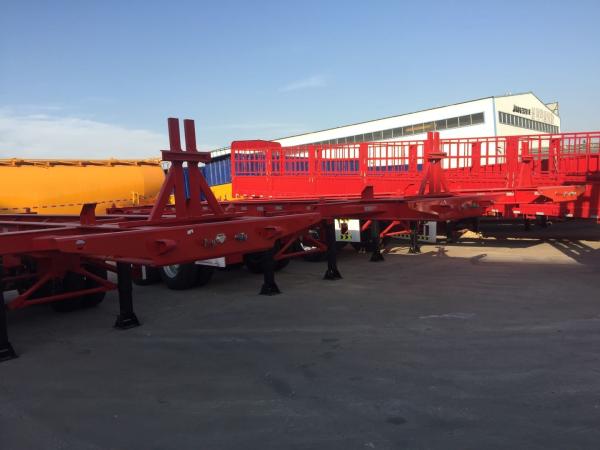

40ft Skeleton semi trailer
Dimensions: Outside dimension

12400*2490*1400 mm

(The final dimensions depend on the final design drawings)

Frame:

Design/welding technology

Heavy duty and extra durability designed;

welding by automatic Submerged-Arc processes.

Main beam

Opting for high strength Q345B steel,

500mm deep welded I-section main beams

Top Flange thickness 14mm

Bottom Flange thickness 16mm

Middle Flange thickness 8mm;

OEM parts:

　

　

 Axle 3 *13 tons capacity, YORK brand
King Pin 2.00’’(50#) bolting king pin
Suspension tri-axle suspension with equalizers, American design
Steel Spring Six sets of 10pcs leaf spring
Twist Locks 8 units ISO twist locks
Landing legs 28 Tons manual operation landing legs with sand shoe
Tire specs 11R22.5, Aeolus brand
Rim 8.25-22.5
Number of wheel 12 pieces

Brake system

Four double and two single brake chamber;

Two units of reliable local brand standard coppery air-connector.　
Electrical: One unit of 24V 7-pin ISO socket; LED light

　

　

　

Miscellaneous:

Painting

 Sand blasting before painting;
one coats of primer, anti-corrosion;
two coat of finish painting;
color advised by client
Marking Standard
Side Guard Standard
Spare Tire Carriers Standard
Tools box Standard
