UL20952 Electric Vehicle Spring Cable
UL20952 Electric Vehicle Spring Cable
Specifications
Brand Name :
WCH Cable
Model Number :
UL20952
Certification :
UL, Cul, AWM
Place of Origin :
Dongguan, China
MOQ :
200 pcs
Price :
USD0.355 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
100,000pcs per week
Delivery Time :
9 days for ready goods
Packaging Details :
200 pcs per box
Conductor :
High purity copper wire
Rated Temperature :
105°C
Insulation :
Thermoplastic Polyurethane TPU
Rated Voltage :
600V
Jacket Material :
Thermoplastic Polyurethane TPU
Executed Standard :
UL758, UL20952
Application :
Electric Vehicle Connection
Description

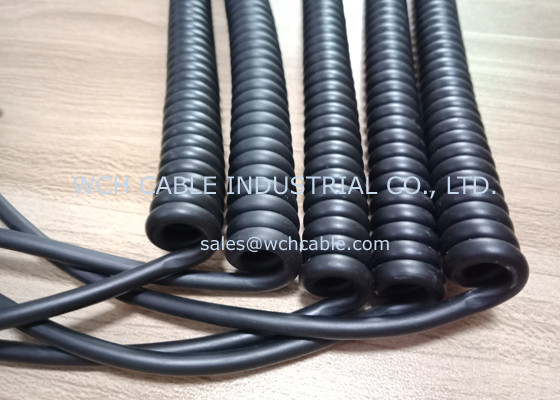

UL20952 Electric Vehicle Spring Cable

Conductor: High purity tin-plate copper wire strands.
Insulation: Thermoplastic Polyurethane TPU.
Screen Shield: Foil, spiral shield, copper braiding, optional.
Jacket Material: Thermoplastic Polyurethane TPU.

Rated Temperature: 105 deg C.
Rated Voltage: 600V.
Uniform insulation thickness for smooth stripping.

Standard: Appliance Wiring Material UL758.
Other approvals: Cul, CSA / Canadian Standards Association.
Origin: Dongguan, China.

Application: Electric vehicle dedicated use purpose.

Style Number Core Quantity Copper Conductor Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL20952 2C 30 7/0.100 0.76 1.90 1.15 6.70 381.00
2C 28 7/0.127 0.76 2.00 1.15 7.00 239.00
2C 26 7/0.16 0.76 2.10 1.15 7.10 150.00
2C 24 11/0.16 0.76 2.20 1.15 7.30 94.20
2C 22 17/0.16 0.76 2.40 1.15 7.70 59.40
2C 20 21/0.178 0.76 2.50 1.15 8.10 36.70
2C 18 34/0.178 0.76 2.80 1.15 8.70 23.20
2C 16 26/0.25 0.76 3.10 1.15 10.90 14.60
3C 30 7/0.100 0.76 1.90 1.15 8.60 381.00
3C 28 7/0.127 0.76 2.00 1.15 8.80 239.00
3C 26 7/0.16 0.76 2.10 1.15 9.00 150.00
3C 24 11/0.16 0.76 2.20 1.15 9.20 94.20
3C 22 17/0.16 0.76 2.40 1.15 9.60 59.40
3C 20 21/0.178 0.76 2.50 1.15 10.10 36.70
3C 18 34/0.178 0.76 2.80 1.15 10.70 23.20
4C 30 7/0.100 0.76 1.90 1.15 8.80 381.00
4C 28 7/0.127 0.76 2.00 1.15 9.00 239.00
4C 26 7/0.16 0.76 2.10 1.15 9.30 150.00
4C 24 11/0.16 0.76 2.20 1.15 9.60 94.20
4C 22 17/0.16 0.76 2.40 1.15 10.00 59.40
4C 20 21/0.178 0.76 2.50 1.15 10.50 36.70
5C 30 7/0.100 0.76 1.90 1.15 9.10 381.00
5C 28 7/0.127 0.76 2.00 1.15 9.40 239.00
5C 26 7/0.16 0.76 2.10 1.15 9.50 150.00
5C 24 11/0.16 0.76 2.20 1.15 9.90 94.20
5C 22 17/0.16 0.76 2.40 1.15 10.60 59.40
6C 30 7/0.100 0.76 1.90 1.15 9.50 381.00
6C 28 7/0.127 0.76 2.00 1.15 9.80 239.00
6C 26 7/0.16 0.76 2.10 1.15 10.10 150.00
6C 24 11/0.16 0.76 2.20 1.15 10.40 94.20


UL20952 Electric Vehicle Spring Cable

UL20952 Electric Vehicle Spring Cable

UL20952 Electric Vehicle Spring Cable
UL20952 Electric Vehicle Spring Cable
UL20952 Electric Vehicle Spring Cable

Tag: UL20952, spring cable, tpu cable
