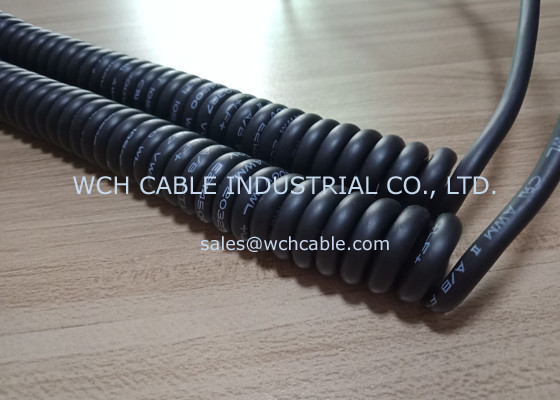

UL21923 Massage Chair Spring Cable
UL21923 Massage Chair Spring Cable
Specifications
Brand Name :
WCH Cable
Model Number :
UL21923
Certification :
UL, CUL, AWM
Place of Origin :
Dongguan, China
MOQ :
200pcs
Price :
USD 0.251 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
1000000 pcs per month
Delivery Time :
9 days for ready goods
Packaging Details :
200pcs per carton
Conductor :
Pure coper wire strands
Insulation Material :
Thermoplastic TPU
Rated Temperature :
105 Cels Degree
Jacket Material :
Thermoplastic TPU
Rated Voltage :
30V
Standard :
UL758, UL1581
Style Number :
UL21923
Application :
Massage Chair Connection
Description

UL21923 Massage Chair Spring Cable

Cable style: UL21923;

Rated: 105°C, 30V;

Feature: easy operation, excellent rebound performance;

Conductor material: high pure copper wires strands;

Insulation material: quality thermoplastic TPU;

Sheath material: quality thermoplastic TPU.

Curly cable extendable length: spiral length x 3.5;

Curly cable coil diameter: cable overall diameter x 3.5;

Ends treatment: stripped, terminal crimpped, connector molded, optional per request.

Application: Massage chair interconnection.

Style Number Core Quantity Conductor Size Conductor Strands Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL21923 2C 30 7/0.100 0.23 0.80 0.38 3.00 381.00
2C 28 7/0.127 0.23 0.90 0.38 3.30 239.00
2C 26 7/0.16 0.23 1.00 0.38 3.50 150.00
2C 24 11/0.16 0.23 1.10 0.38 3.70 94.20
2C 22 17/0.16 0.23 1.30 0.38 4.10 59.40
2C 20 21/0.178 0.23 1.50 0.38 4.50 36.70
2C 18 34/0.178 0.23 1.80 0.38 5.20 23.20
2C 16 26/0.25 0.23 2.00 0.38 5.60 14.60
3C 30 7/0.100 0.23 0.80 0.38 3.30 381.00
3C 28 7/0.127 0.23 0.90 0.38 3.50 239.00
3C 26 7/0.16 0.23 1.00 0.38 3.70 150.00
3C 24 11/0.16 0.23 1.10 0.38 3.90 94.20
3C 22 17/0.16 0.23 1.30 0.38 4.30 59.40
3C 20 21/0.178 0.23 1.50 0.38 4.80 36.70
3C 18 34/0.178 0.23 1.80 0.38 5.20 23.20
4C 30 7/0.100 0.23 0.80 0.38 3.50 381.00
4C 28 7/0.127 0.23 0.90 0.38 3.80 239.00
4C 26 7/0.16 0.23 1.00 0.38 4.00 150.00
4C 24 11/0.16 0.23 1.10 0.38 4.20 94.20
4C 22 17/0.16 0.23 1.30 0.38 4.70 59.40
4C 20 21/0.178 0.23 1.50 0.38 5.20 36.70
5C 30 7/0.100 0.23 0.80 0.38 3.80 381.00
5C 28 7/0.127 0.23 0.90 0.38 4.20 239.00
5C 26 7/0.16 0.23 1.00 0.38 4.40 150.00
5C 24 11/0.16 0.23 1.10 0.38 4.70 94.20
5C 22 17/0.16 0.23 1.30 0.38 5.30 59.40
6C 30 7/0.100 0.23 0.80 0.38 4.20 381.00
6C 28 7/0.127 0.23 0.90 0.38 4.40 239.00
6C 26 7/0.16 0.23 1.00 0.38 4.70 150.00
6C 24 11/0.16 0.23 1.10 0.38 5.00 94.20

UL21923 Massage Chair Spring Cable

UL21923 Massage Chair Spring Cable

UL21923 Massage Chair Spring Cable

UL21923 Massage Chair Spring Cable

Tag: tpu cable, curly cable
