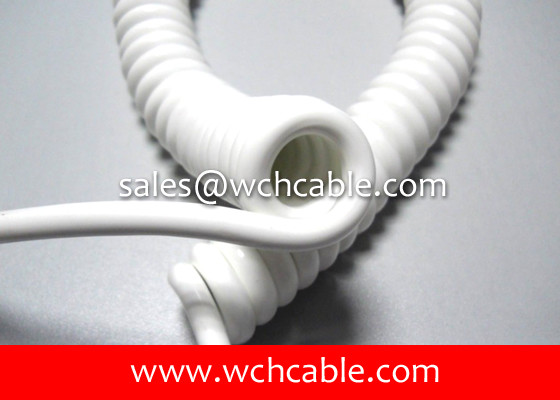

UL21316 Class 2 External Connection Spring Cable 60C 1000V
UL21316 Class 2 External Connection Spring Cable 60C 1000V
Specifications
Brand Name :
WCH Cable
Model Number :
UL21316
Certification :
UL, Cul, AWM
Place of Origin :
Dongguan, China
MOQ :
200 pieces
Price :
USD0.22 per piece
Payment Terms :
L/C, D/P, D/A, T/T, Western Union,
Supply Ability :
200,000 pieces per month
Delivery Time :
9 days for ready goods
Packaging Details :
200 pieces per carton
Style Number :
UL21316
Conductor Material :
Highly pure copper wire strands
Rated Temperature :
60°C
Insulation Material :
AWM verified materials
Rated Voltage :
1000V
Jacket Material :
Quality Thermoplastic TPU
Screened :
Optional
Jacket Thickness :
30 Mils minimum
Description

UL21316 Class 2 External Connection Spring Cable 60C 1000V

Spring cable style number: UL21316;

Spring cable application: Class 1 internal wiring and Class 2 external connection;

Spring cable applied standard: Appliance Wiring Material UL758, UL1581;

Spring cable dimensions to be determined per request.

Ends stripping, tinning, connector mounting, strain relief injection available.

Style Number Core Quantity Conductor Gauge Conductor Strands Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL21316 2C 30 11/0.08 0.76 1.90 0.76 6.00 381.00
2C 28 16/0.08 0.76 2.00 0.76 6.30 239.00
2C 26 26/0.08 0.76 2.10 0.76 6.40 150.00
2C 24 41/0.08 0.76 2.20 0.76 6.60 94.20
2C 22 65/0.08 0.76 2.40 0.76 7.00 59.40
2C 20 104/0.08 0.76 2.50 0.76 7.40 36.70
2C 18 164/0.08 0.76 2.80 0.76 8.00 23.20
2C 16 265/0.08 0.76 3.10 0.76 10.20 14.60
3C 30 11/0.08 0.76 1.90 0.76 7.90 381.00
3C 28 16/0.08 0.76 2.00 0.76 8.10 239.00
3C 26 26/0.08 0.76 2.10 0.76 8.30 150.00
3C 24 41/0.08 0.76 2.20 0.76 8.50 94.20
3C 22 65/0.08 0.76 2.40 0.76 8.90 59.40
3C 20 104/0.08 0.76 2.50 0.76 9.40 36.70
3C 18 164/0.08 0.76 2.80 0.76 10.00 23.20
4C 30 11/0.08 0.76 1.90 0.76 8.10 381.00
4C 28 16/0.08 0.76 2.00 0.76 8.30 239.00
4C 26 26/0.08 0.76 2.10 0.76 8.60 150.00
4C 24 41/0.08 0.76 2.20 0.76 8.90 94.20
4C 22 65/0.08 0.76 2.40 0.76 9.30 59.40
4C 20 104/0.08 0.76 2.50 0.76 9.80 36.70
5C 30 11/0.08 0.76 1.90 0.76 8.40 381.00
5C 28 16/0.08 0.76 2.00 0.76 8.70 239.00
5C 26 26/0.08 0.76 2.10 0.76 8.80 150.00
5C 24 41/0.08 0.76 2.20 0.76 9.20 94.20
5C 22 65/0.08 0.76 2.40 0.76 9.80 59.40
6C 30 11/0.08 0.76 1.90 0.76 8.80 381.00
6C 28 16/0.08 0.76 2.00 0.76 9.10 239.00
6C 26 26/0.08 0.76 2.10 0.76 9.40 150.00
6C 24 41/0.08 0.76 2.20 0.76 9.70 94.20

UL21316 Class 2 External Connection Spring Cable 60C 1000V

Tag: UL21316, cable, spring cable
