Fleece Backed 1.5mm Strong Malleability High Plasticity TPO Roofing Membrane For Propylene-Alpha-Olefin Copolymer Resins
Fleece Backed 1.5mm Strong Malleability High Plasticity TPO Roofing Membrane For Propylene-Alpha-Olefin Copolymer Resins
Fleece Backed 1.5mm Strong Malleability High Plasticity TPO Roofing Membrane For Propylene-Alpha-Olefin Copolymer Resins
Fleece Backed 1.5mm Strong Malleability High Plasticity TPO Roofing Membrane For Propylene-Alpha-Olefin Copolymer Resins
Fleece Backed 1.5mm Strong Malleability High Plasticity TPO Roofing Membrane For Propylene-Alpha-Olefin Copolymer Resins
Fleece Backed 1.5mm Strong Malleability High Plasticity TPO Roofing Membrane For Propylene-Alpha-Olefin Copolymer Resins
Specifications
Brand Name :
HAOBANG
Model Number :
1.5mm TPO waterproof membrane
Certification :
ISO
Place of Origin :
Shandong,China
MOQ :
1,000 square meters
Price :
Price negotiable
Payment Terms :
T/T,L/C
Supply Ability :
680000 square meters per year
Delivery Time :
6-7 work days
Packaging Details :
Packed in Roll and on Pallet
Water Absorption Rate :
4%
Supply Capacity :
10000m²/day
Width :
1.2m/2.0m
Sample Request :
free
Elongation At Rapture :
500%
Roll Length :
15.24m
Thickness :
1.2mm/1.5mm/2.0mm
Trademark :
HAOBANG
Tear Resistance :
≥ 250N
Installation Method :
Loose-laid
Description

Fleece Backed 1.5mm Strong malleability High plasticity

Product Description



Product Name 1.5mm TPO Roofing Membrane (Smooth Version)
Material TPO
Color White


Haobang TPO-H represents a homogenous multi-layer composite thermoplastic polyolefin polymer

waterproof membrane, constructed from thermoplastic polyolefin (TPO) material. It merges the

weldability of propylene-alpha-olefin copolymer resins created by advanced polymerization processes

with the durability of polypropylene resins. By means of sophisticated processing technology, this

membrane is specifically applied to the detailed treatment of exposed roofs.

Fleece Backed 1.5mm Strong Malleability High Plasticity TPO Roofing Membrane For Propylene-Alpha-Olefin Copolymer ResinsFleece Backed 1.5mm Strong Malleability High Plasticity TPO Roofing Membrane For Propylene-Alpha-Olefin Copolymer Resins


Technical Data Sheet



GB27789-2011 TPO Waterproofing Membrane(Type H)
Tensile Properties

Value
Tensile strength ≥ MPa 12
Elongation at rapture
% 500
Dimensional change rate on heating
% 2
Low temperature bending
- -40℃No Cracks
Watertightness
- 0.3 MPa,2h Watertight
Impact resistance - - 0.5 kg ·m, No water leakage
Peel strength at joints
N/mm 4.0 or damaged
Right angle tear strength
N/mm 60
Water Absorption Rate(70℃168h)
% 4
Heat aging (115℃)


Time - h 672
Appearance - - No blistering,cracks,delamination,sticking or voids
Tensile strength retention ≥ % 90
Elongation retention at rapture ≥ % 90
Low temperature bendability - - -40, No Cracks
Chemical resistance


Appearance - - No blistering,cracksdelaminationsticking or voids
Tensile strength retention ≥ % 90
Elongation retention at rapture ≥ % 90
Low temperature bendability - - -40℃,No Cracks
Artificial climate accelerates aging


Time - h 2500
Appearance - - No blisteringcracks,delamination,sticking or voids
Tensile strength retention
% 90
Elongation retention at break ≥ % 90
Low temperature bendability

-40℃, No Cracks
Wind uplift resistance
4.3Kpa 90



Application


  • Transportation hubs: aviation terminals, high-speed rail stations, intercity bus stations...


    Public buildings: exhibition centers, exhibition halls, gymnasiums...


    New-type infrastructure: big data hubs, smart logistics centers...


    Industrial workshops: automobile factories, electronic component plants, mechanical equipment workshops, tobacco processing plants...


Advantages


  • Excellent fusion welding performance;
    Outstanding low-temperature flexibility;
    Superior dimensional stability;
    High tensile elongation property;
    Strong impact resistance;
    High solar reflectivity;
    Eco-friendly design with recyclable materials;
    Long-term UV resistance


Specification

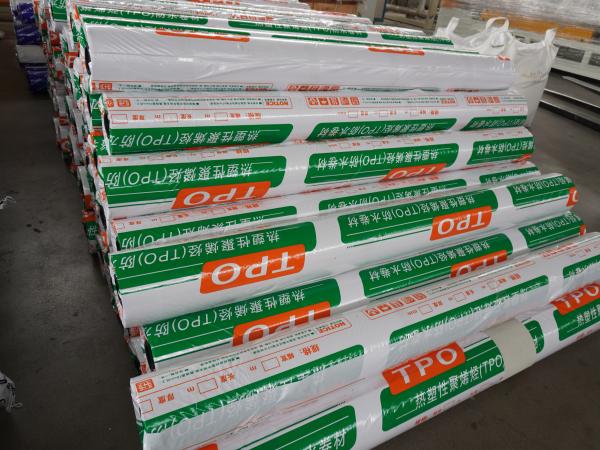

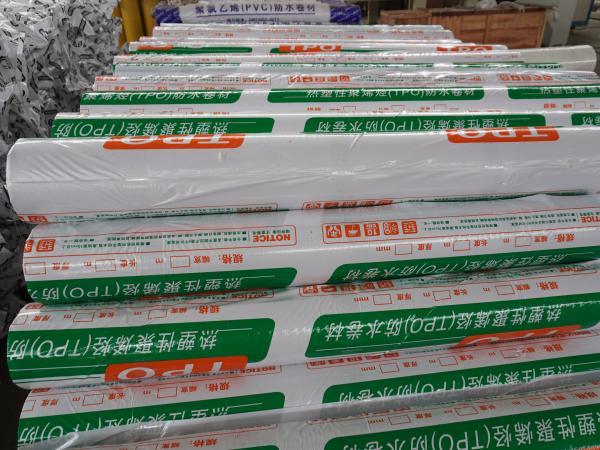

Each standard roll is individually sealed in polyethylene film. The width is fixed at 2.0 meters, while the length varies according to the membrane thickness.

  • 0.8mm × 30m (Approx. per roll weight: 48-50 kg)
  • 1.2mm × 25m (Approx. per roll weight: 62-64 kg)
  • 1.5mm × 20m (Approx. per roll weight: 62-64 kg)
  • 1.8mm × 15m (Approx. per roll weight: 56-58 kg)
  • 2.0mm × 15m (Approx. per roll weight: 62-64 kg)

Fleece Backed 1.5mm Strong Malleability High Plasticity TPO Roofing Membrane For Propylene-Alpha-Olefin Copolymer Resins


Fleece Backed 1.5mm Strong Malleability High Plasticity TPO Roofing Membrane For Propylene-Alpha-Olefin Copolymer Resins


Fleece Backed 1.5mm Strong Malleability High Plasticity TPO Roofing Membrane For Propylene-Alpha-Olefin Copolymer Resins

FAQ



Q: Are samples provided free of charge?
A: Yes. Samples within 1 square meter or below 1 kilogram are complimentary, but the buyer should cover the shipping expenses.

Q: May I use my own shipping agent?
A: Sure. We welcome cooperation with your designated freight forwarder.

Q: Is there a possibility for price negotiation?
A: Yes. Considerable orders will be eligible for favorable discounts.
