TPO Roofing Membrane for Green Roofs - High Solar Reflectivity
TPO Roofing Membrane for Green Roofs - High Solar Reflectivity
TPO Roofing Membrane for Green Roofs - High Solar Reflectivity
TPO Roofing Membrane for Green Roofs - High Solar Reflectivity
TPO Roofing Membrane for Green Roofs - High Solar Reflectivity
TPO Roofing Membrane for Green Roofs - High Solar Reflectivity
Specifications
Brand Name :
HAOBANG
Model Number :
1.2mm TPO waterproof membrane
Certification :
ISO
Place of Origin :
Shandong,China
MOQ :
1,000 square meters
Price :
Price negotiable
Payment Terms :
T/T,L/C
Supply Ability :
680000 square meters per year
Delivery Time :
6-7 work days
Packaging Details :
Packed in Roll and on Pallet
Width :
1m/2m
Length :
20m/roll
Roofing Application :
Planted Roofs
Wind Uplift Resistance :
4.3 Kpa
Uv Resistance :
≥1500h
Port :
qingdao
Low Temperature Flexibility :
-40℃
Sample Request :
free
Transport Packages :
Tray Packaging
Surface :
Embossed
Texture Of Material :
TPO material
Impermeability :
0.3Mpa, 2-hour impermeable
Installation Method :
Hot-air Welding
Description

Superior Temp-Resistant TPO Membrane: High Solar Reflectivity for Green Roofs

Product Description

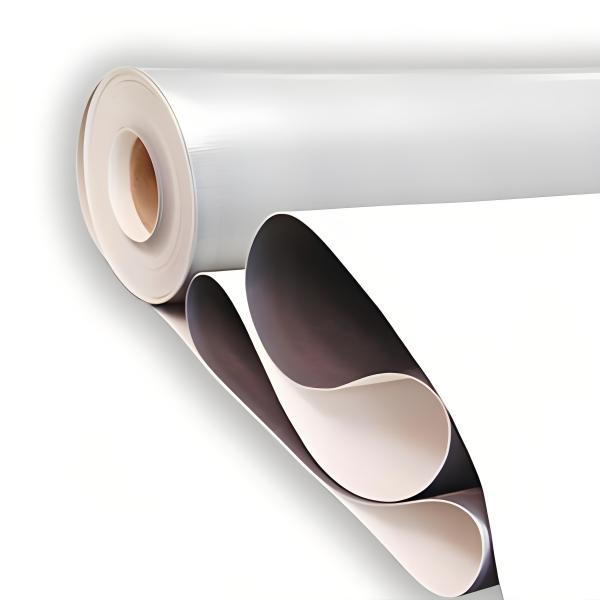

Product Name 1.2mm TPO Roofing Membrane (Smooth Version)
Material TPO
Color White


This superior temp-resistant TPO membrane is specially designed for green roofs, combining exceptional temperature resistance with high solar reflectivity. Its ability to withstand extreme temperature fluctuations ensures stable performance in the unique environment of green roofs, while the high solar reflectivity helps reduce heat absorption, contributing to energy efficiency. Ideal for green roof systems, it provides reliable protection and functional support for sustainable roofing solutions.

TPO Roofing Membrane for Green Roofs - High Solar ReflectivityTPO Roofing Membrane for Green Roofs - High Solar Reflectivity


Technical Data Sheet



GB27789-2011 TPO Waterproofing Membrane(Type H)
Tensile Properties

Value
Tensile strength ≥ MPa 12
Elongation at rapture
% 500
Dimensional change rate on heating
% 2
Low temperature bending
- -40℃No Cracks
Watertightness
- 0.3 MPa,2h Watertight
Impact resistance - - 0.5 kg ·m, No water leakage
Peel strength at joints
N/mm 4.0 or damaged
Right angle tear strength
N/mm 60
Water Absorption Rate(70℃168h)
% 4
Heat aging (115℃)


Time - h 672
Appearance - - No blistering,cracks,delamination,sticking or voids
Tensile strength retention ≥ % 90
Elongation retention at rapture ≥ % 90
Low temperature bendability - - -40, No Cracks
Chemical resistance


Appearance - - No blistering,cracksdelaminationsticking or voids
Tensile strength retention ≥ % 90
Elongation retention at rapture ≥ % 90
Low temperature bendability - - -40℃,No Cracks
Artificial climate accelerates aging


Time - h 2500
Appearance - - No blisteringcracks,delamination,sticking or voids
Tensile strength retention
% 90
Elongation retention at break ≥ % 90
Low temperature bendability

-40℃, No Cracks
Wind uplift resistance
4.3Kpa 90



Application


  • Transportation hubs: airport terminals, high-speed rail stations, coach depots...​

    Institutional buildings: convention complexes, exhibition centers, sports stadiums...​


    Contemporary infrastructure: big data hubs, logistics depots...​

    Industrial plants: automobile, microelectronics, machinery, tobacco manufacturing facilities...​
    ​

Advantages


  • Excellent weather resistance;​
    Superior weldability;​
    Outstanding high and low temperature resistance;​
    Excellent dimensional stability;​
    Good tensile and tear strength;​
    Good impact resistance;​
    High solar reflectivity;​
    Energy-saving, environmentally friendly and recyclable;​
    Strong plasticity.

Specification



Every single standard roll is separately wrapped in polyethylene film. The width measures 2.0 meters, and the length is determined by the membrane's thickness.​
  • 0.8mm 30m (Approximate weight per roll: 48 - 50 kilograms)​
  • 1.2mm 25m (Approximate weight per roll: 62 - 64 kilograms)​
  • 1.5mm 20m (Approximate weight per roll: 62 - 64 kilograms)​
  • 1.8mm 15m (Approximate weight per roll: 56 - 58 kilograms)​
  • 2.0mm 15m (Approximate weight per roll: 62 - 64 kilograms)

TPO Roofing Membrane for Green Roofs - High Solar Reflectivity


TPO Roofing Membrane for Green Roofs - High Solar Reflectivity


TPO Roofing Membrane for Green Roofs - High Solar Reflectivity

FAQ



Q: Are free samples available?​
A: Yes, samples with an area under 1 square meter or a weight of 1 kilogram or less are offered free of charge, though the shipping costs shall be borne by the buyer.​
Q: May I use my own logistics company?​
A: Definitely, we welcome cooperation with your appointed shipping provider.​
Q: Is the price open to negotiation?​
A: Of course, large - scale orders will be eligible for a substantial discount.
