Specifications
Delivery Time :
30 work days
Model Number :
TFSL03
ABS Anti-lock Braking System :
With
Payment Terms :
L/C,T/T
Condition :
New
Supply Ability :
3000 Per Month
Painting :
Customization
Certification :
CCC, ISO/TS16949
Axle Brand :
Fuwa,Zy,BPW,Aq
Price :
Negotiable
Packaging Details :
Nude Packing
Brand Name :
Tourfine
Suspension Systems :
Leaf Spring Suspension
MOQ :
1
Place of Origin :
China
Specification :
Carbon steel
Description

3 Axle Super Link Flatbed Semi Trailer for 20FT and 40FT Container Transportation

Product Description


The 3 Axle Super Link Flatbed Semi Trailer is designed for efficient transportation of 20FT and 40FT shipping containers across ports, logistics centers, and international freight corridors. Its super link configuration provides increased payload flexibility and improved transport efficiency, making it suitable for long-distance and cross-border operations.


Constructed from high-strength steel, the trailer offers excellent durability, load capacity, and resistance to demanding road conditions. Equipped with reliable container locking systems, it ensures secure container positioning and safe transportation throughout the journey. The reinforced chassis, dependable axle arrangement, and robust suspension system contribute to stable performance and reduced maintenance requirements.


Widely used in container logistics, freight forwarding, and commercial transportation industries, this flatbed super link trailer provides a practical solution for operators seeking high productivity, operational reliability, and cost-effective container hauling services.



Hot-selling market

North Africa: Egypt, Libya, and Sudan.
East Africa: Ethiopia, Eritrea, Somalia, Djibouti, Kenya, Tanzania, Uganda, Rwanda, and Burundi.
Central Africa: Chad, Gabon, Republic of the Congo (Congo-Brazzaville), Democratic Republic of the Congo (Congo-Kinshasa), and São Tomé and Príncipe.
West Africa: Mauritania, Senegal, The Gambia, Mali, Burkina Faso, Cape Verde, Sierra Leone, Liberia, Côte d'Ivoire, Ghana, and Guinea.
South Africa: Angola, Botswana, South Africa, Lesotho, Madagascar, Malawi, Comoros, Mauritius, Mozambique, and Zambia.


Product Parameters
Loading capacity 50T/60T
Size Front :6150/6200*2500*1600mm
Rear: 12250/12500*2500*1600mm




Chassis (I beam)
Top flange plate Material and thickness 12mm/14mm
Bottom flange plate Material and thickness 14mm/16mm
Middle flange plate Height 500mm
Thickness 8mm/10mm
Side beam height Type U steel
Height 16# U steel

Floor
Material Carbon steel Q235
Thickness 3mm
Floor type Checkered plate




Running mechanism









Running mechanism



Container twist lock 16 pcs in all
Axle Brand FUWA/AQ/BPW/ZY
Type 13t
Number 4pcs
Rim Type 9.0-22.5
Number 16 pcs

Tire
Brand Triangle brand
Type 12R22.5/12.00R20/315/80R22.5
Number 16pcs
Suspension Mechanical suspension
Spring leaf Leaf width 90mm
Leaf thickness 13mm
Layer/set 10 Layer
King pin Type Bolts type
Diameter 2 inch
Brake system Air tank 40L air tanks
Brake chamber 6 double spring brake chamber
ABS Without
Landing gear Brand JOST
Type Two speed 24t


Accessories


Spare tire carrier 2sets
Light LED light
Voltage 24v
Receptacle 7 ways
Tool box One piece,1000x500x500mm
Paiting Polyurethane paint&anti-rust primer&sand blasting
Tools for trailer Head wrench ;spare wheel crank ; one fire extinguisher; Operation Manual
Detailed Photos

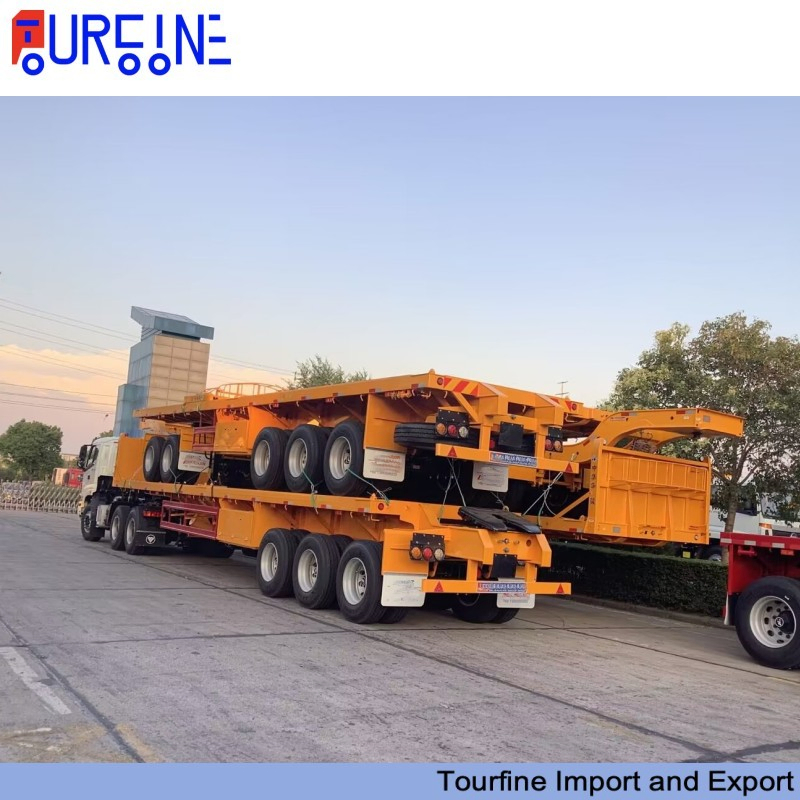

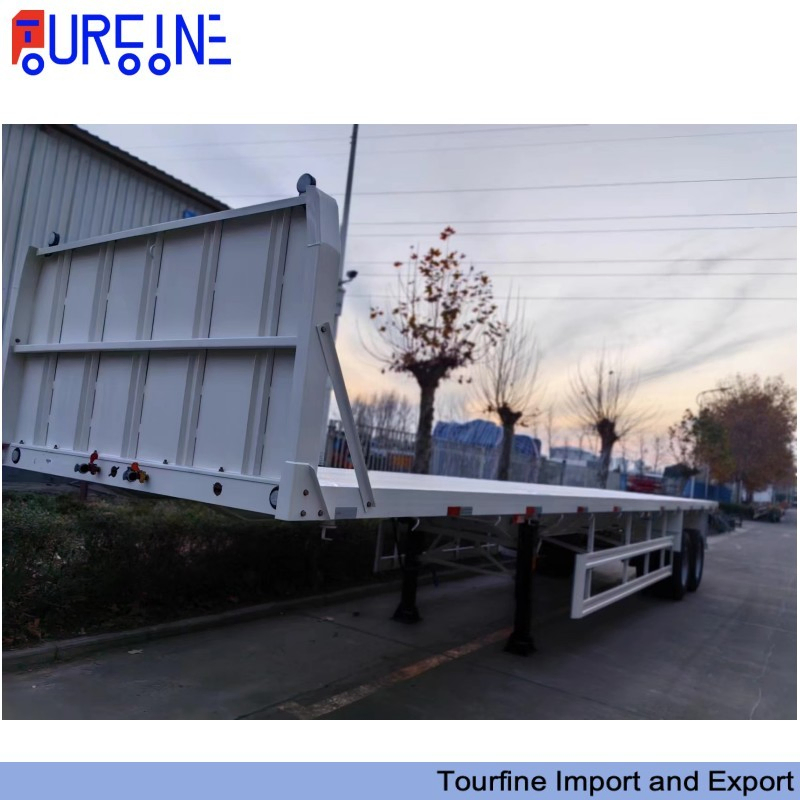

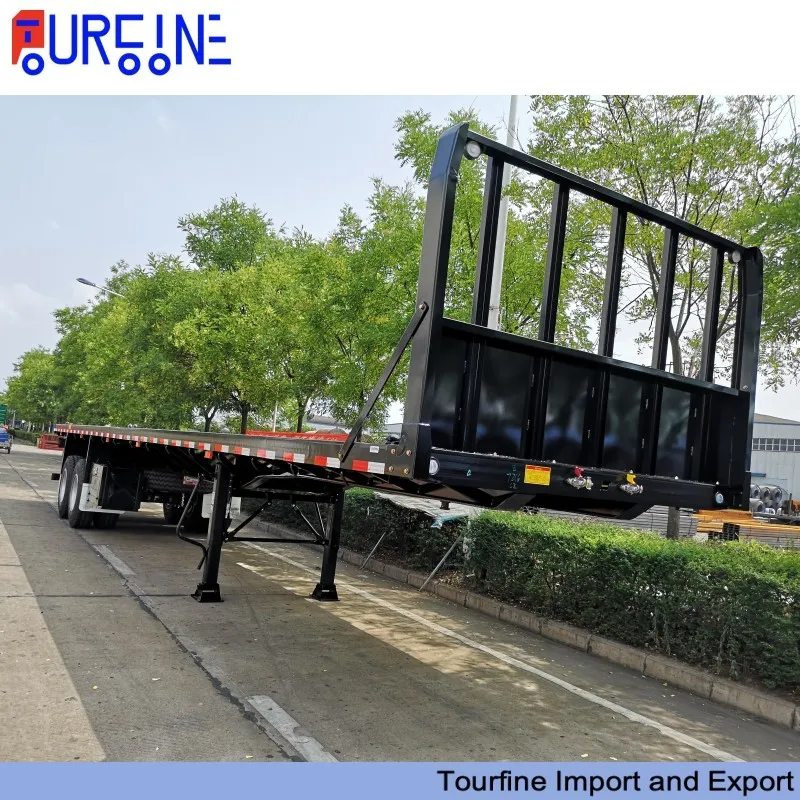

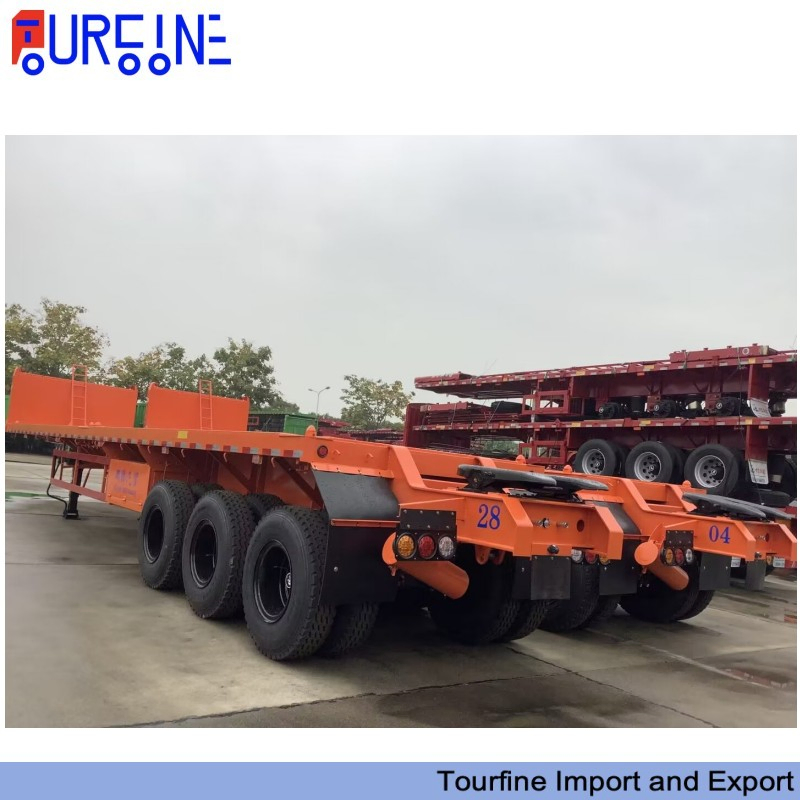

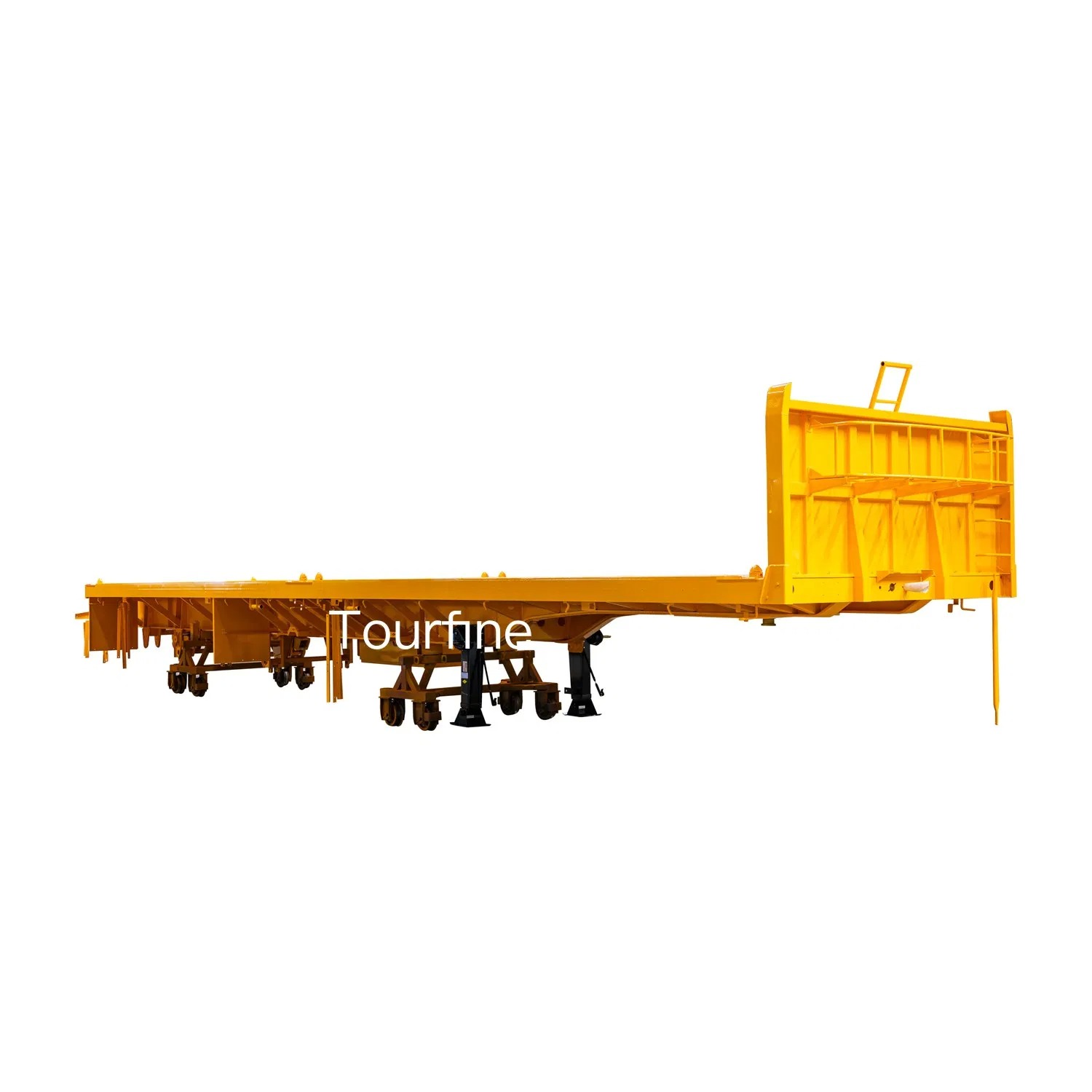

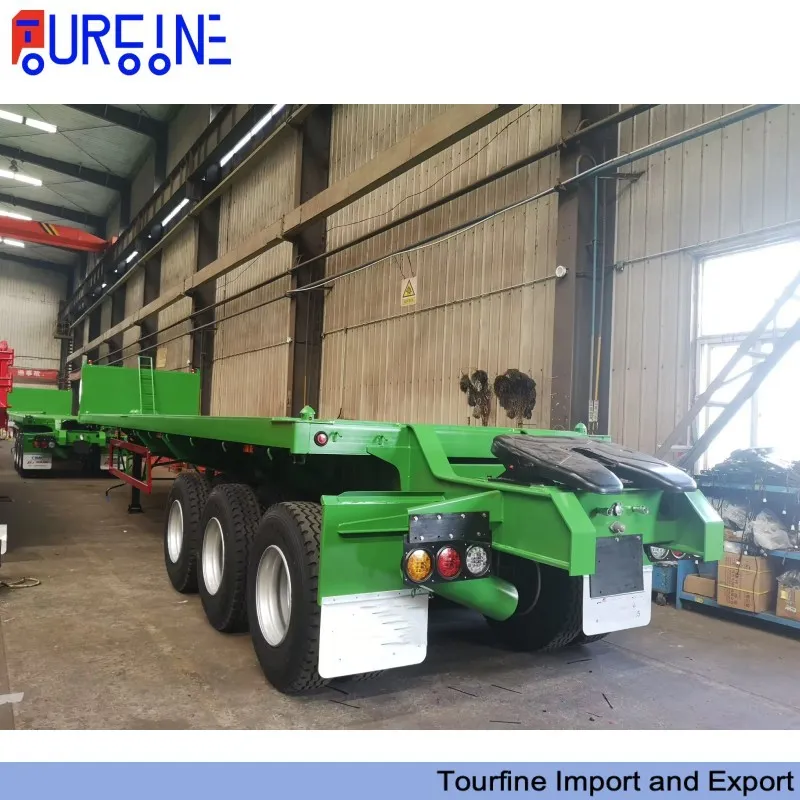

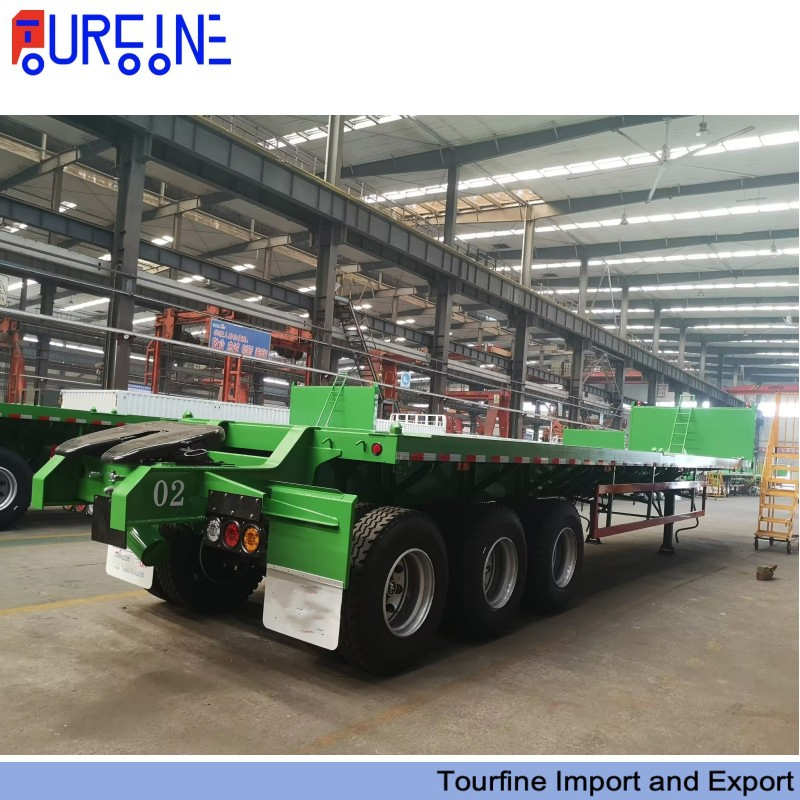

Super Link Flatbed Semi Trailer 3 Axle for 20FT and 40FT Container Transportation

Super Link Flatbed Semi Trailer 3 Axle for 20FT and 40FT Container Transportation

Super Link Flatbed Semi Trailer 3 Axle for 20FT and 40FT Container Transportation

Super Link Flatbed Semi Trailer 3 Axle for 20FT and 40FT Container Transportation
Export Support

We guarantee smooth and worry-free export procedures for every order. Our experienced team provides all essential shipping documents-Certificate of Origin (CO), Bill of Lading (B/L), Commercial Invoice, and Packing List-to meet your customs clearance needs and keep your business moving forward with confidence.
Super Link Flatbed Semi Trailer 3 Axle for 20FT and 40FT Container Transportation
Super Link Flatbed Semi Trailer 3 Axle for 20FT and 40FT Container Transportation
Super Link Flatbed Semi Trailer 3 Axle for 20FT and 40FT Container Transportation
Super Link Flatbed Semi Trailer 3 Axle for 20FT and 40FT Container Transportation
FAQ

Q1: What's your MOQ?
A: One unit.


Q2: What's your payment terms?

A: T/T or LC


Q3: How about the after sales service?
A: We provide technical support and spare parts for long life time of our products.Provide spare parts for the parts BY DHL,TNT,UPS OR FEDEX.


Q4: What is your shipping method?
A: Container, Flat rack container, Roro vessel, Bulk vessel


Q5: What is your delivery time?
A: It takes around 7 days to 60 days after receive the deposit


Q6.Can you satisfy my special requirement?
Sure! We can manufacture the trailers and trucks according to your requirement.


Q7: Do you offer good quality spare parts?
A:Yes.

Packaging & Shipping
Super Link Flatbed Semi Trailer 3 Axle for 20FT and 40FT Container Transportation

Super Link Flatbed Semi Trailer 3 Axle for 20FT and 40FT Container Transportation

Successful Case

Super Link Flatbed Semi Trailer 3 Axle for 20FT and 40FT Container Transportation
