3 Axle Log Timber Semi Trailer with Side Stakes for Long Wood Transportation
3 Axle Log Timber Semi Trailer with Side Stakes for Long Wood Transportation
3 Axle Log Timber Semi Trailer with Side Stakes for Long Wood Transportation
3 Axle Log Timber Semi Trailer with Side Stakes for Long Wood Transportation
3 Axle Log Timber Semi Trailer with Side Stakes for Long Wood Transportation
3 Axle Log Timber Semi Trailer with Side Stakes for Long Wood Transportation
3 Axle Log Timber Semi Trailer with Side Stakes for Long Wood Transportation
3 Axle Log Timber Semi Trailer with Side Stakes for Long Wood Transportation
3 Axle Log Timber Semi Trailer with Side Stakes for Long Wood Transportation
3 Axle Log Timber Semi Trailer with Side Stakes for Long Wood Transportation
Specifications
Packaging Details :
Nude Packing
Axle :
Fuwa Brand/Zy/BPW/Aq
Model Number :
TFSC03
Self-dumping :
Not Self-dumping
Delivery Time :
30 work days
Relay Valve :
Wabco
Place of Origin :
China
ABS Anti-lock Braking System :
ABS Anti-lock Braking System
Supply Ability :
3000 Per Month
Condition :
New
Payment Terms :
L/C,T/T
Material :
Steel
Color :
White, Yellow,Organg,Red,Blue
Brand Name :
Tourfine
Types of Suspension Systems :
Leaf Spring Suspension
MOQ :
1
Price :
Negotiable
Certification :
ISO9001, CCC, ISO/TS16949
Description
3 Axle Log Timber Semi Trailer with Side Stakes for Long Wood Transportation
Product Description


Designed for forestry and timber transportation, the 3 Axle Log Timber Semi Trailer provides a reliable and efficient solution for hauling long logs, round timber, poles, and processed lumber. The trailer is equipped with reinforced side stakes that securely hold timber loads during transportation, improving safety on highways and rough forest roads.


Its heavy-duty high-strength steel chassis offers excellent structural strength and durability under demanding working conditions. The optimized frame design ensures balanced weight distribution, while the robust axle configuration and suspension system deliver stable performance with heavy payloads. Optional stake layouts and trailer dimensions are available to meet different timber lengths and transportation requirements.


Suitable for forestry companies, logging contractors, sawmills, and timber logistics providers, this trailer combines high loading efficiency, dependable performance, and low maintenance costs, making it an ideal choice for professional wood transportation operations.

Product Parameters
Item Unit Quantity Notice
overall size

12440length*2500width,height will be adjusted according,detail according to the drawing
axle piece 3 13T FUWA braking pad 220mm width
tyre piece 13 12.00R20, with a spare tire
rim piece 13 8.5-20
leaf spring piece 6 160mm width*8pieces*13mm thiness
braking system set
2 line air braking system with air tank ,emergency relay valve,braking chambers and mechanical slack adjusters.
electrical system set 1 24 volt electrical system. LED lights, 7 pin electrical connector.parking .stop,reverse,number plate and indicator lights.rear lights conform to European standard,rear front and side reflectors
suspension set 3 reincorced
relay valve

WABCO
landing gear pair 1 JOSTC200, one side operation
kingpin piece 1 JOST 90# WELDING TYPE
tie-in piece 2 Haldex
chamber piece 2 T 30/30 4pcs
twist lock piece 12 it can load 1*40', 2*20' and 1*20' in the middle
floor

3mm checkered
upper and lower wing plates

14/16mm,using the highly quality Q345 steel,
main beam

500mm,webplate:6mm using the highly quality Q345 steel
side beam

18# channel steel 16#
cross beam

10cm
Shotblasting and paint

Chassis is comletely shor blasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns DFT),THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat.total 80-100 microns.whole trailer waxed, sea water proofed paint
spare tyre carrier
2 standard
tool box piece 1 standard
color

according to your required color code

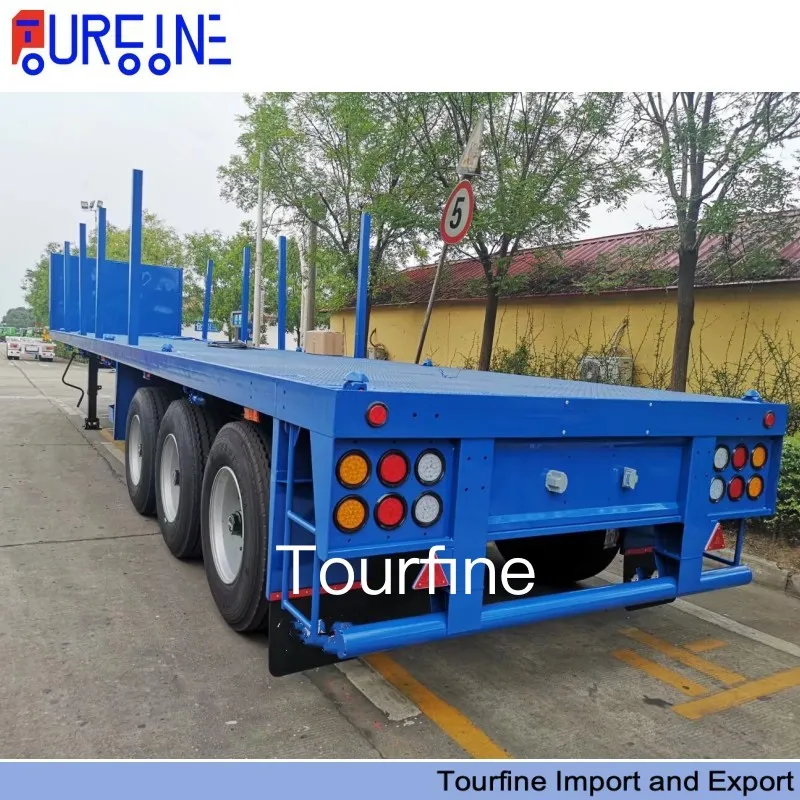

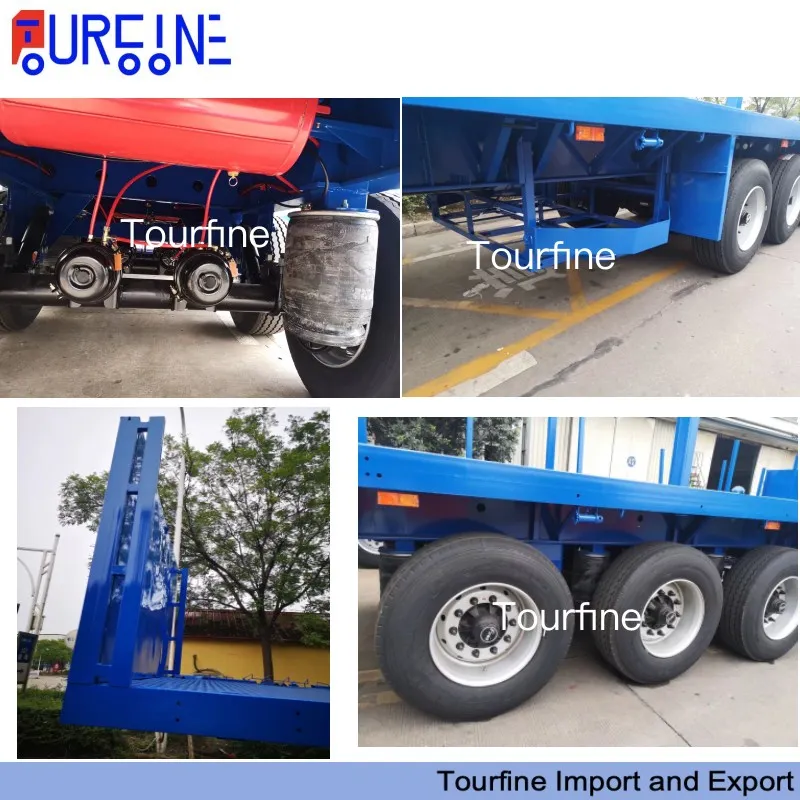

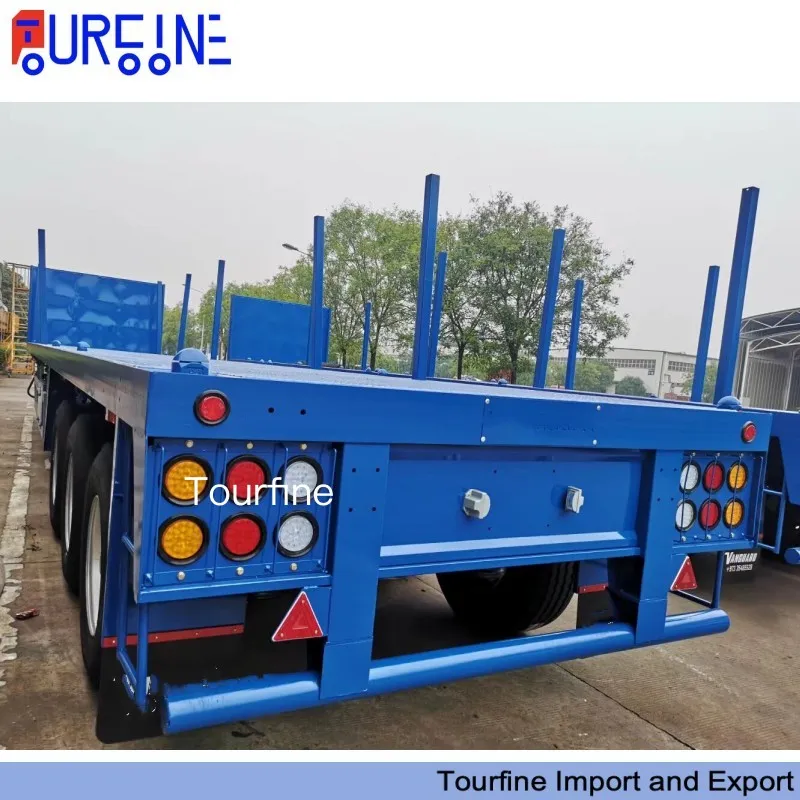

Detailed Photos

3 Axle Log Timber Semi Trailer with Side Stakes for Long Wood Transportation3 Axle Log Timber Semi Trailer with Side Stakes for Long Wood Transportation3 Axle Log Timber Semi Trailer with Side Stakes for Long Wood Transportation3 Axle Log Timber Semi Trailer with Side Stakes for Long Wood Transportation

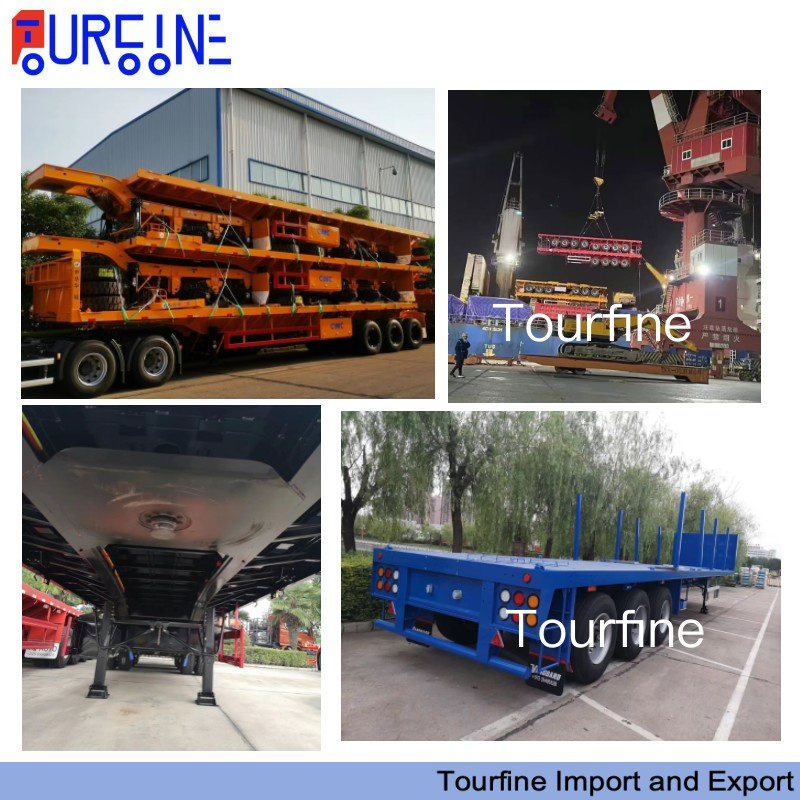

Successful Case

3 Axle Log Timber Semi Trailer with Side Stakes for Long Wood Transportation

FAQ

Q1: What's your MOQ?
A: One unit.


Q2: What's your payment terms?
A: T/T or LC.


Q3: How about the after sales service?
A: We provide technical support and spare parts for long life time of our products.Provide spare parts for the parts BY DHL,TNT,UPS OR FEDEX.


Q4: What is your shipping method?

A: Container, Flat rack container, Roro vessel, Bulk vessel


Q5: What is your delivery time?

A: It takes around 7 days to 60 days after receive the deposit


Q6.Can you satisfy my special requirement?

Sure! We can manufacture the trailers and trucks according to your requirement.


Q7: Do you offer good quality spare parts?
A:Yes.
