XCMG XC760K Skid Steer Loader with 4-in-1 Bucket for Material Handling
XCMG XC760K Skid Steer Loader with 4-in-1 Bucket for Material Handling
XCMG XC760K Skid Steer Loader with 4-in-1 Bucket for Material Handling
XCMG XC760K Skid Steer Loader with 4-in-1 Bucket for Material Handling
XCMG XC760K Skid Steer Loader with 4-in-1 Bucket for Material Handling
XCMG XC760K Skid Steer Loader with 4-in-1 Bucket for Material Handling
XCMG XC760K Skid Steer Loader with 4-in-1 Bucket for Material Handling
XCMG XC760K Skid Steer Loader with 4-in-1 Bucket for Material Handling
Specifications
Packaging Details :
by Container
Model Number :
XC760K
Delivery Time :
30 work days
Place of Origin :
China
Certification :
TUV, ISO
Price :
Negotiable
Supply Ability :
1000 Per Month
Bucket Capacity :
0.6
Load and Unload Mode :
Front Discharge
Tipping Load :
2160kg
Brand Name :
XCMG
MOQ :
1
Engine :
Weichai
Payment Terms :
L/C,T/T
Description

XCMG XC760K Skid Steer Loader with 4-in-1 Bucket for Material Handling

Product Description


The XCMG XC760K Skid Steer Loader is a compact and powerful machine designed for construction, agriculture, landscaping, and material handling applications. Equipped with a 4-in-1 bucket, it combines loading, grading, grabbing, and dozing functions into one versatile attachment, helping improve productivity across different job sites.


Featuring a high-performance hydraulic system and a reliable powertrain, the XC760K skid steer loader delivers smooth operation, strong lifting capability, and excellent maneuverability in confined spaces. Its quick coupler allows fast attachment changes, making it compatible with buckets, pallet forks, augers, sweepers, and many other implements. Built with a reinforced frame, ergonomic operator cab, and simplified maintenance access, this compact skid steer loader offers dependable performance and lower operating costs for contractors, farms, and municipal projects.


Product Parameters

Main Parameters Unit XC740K XC750K XC760K XC770K
Rated Load kg 750 900 1080 1250
Tipping Load kg 1500 1800 2160 2500
Operating Weight kg 3080 3400 3450 3600/3700
Maximum Breakout Force kN ≥18 ≥20 22 22
Maximum Traction kN ≥20 ≥24 ≥26 ≥32
Hydraulic Flow Rate L/min 62.5 75.9 95 91.2
Optional High Flow L/min — 119.6 142.5 158.4
Hydraulic Pressure bar 200 210 210 210
Engine Model — Xinchai 4D27G31 Yanmar 4TNV98 Yanmar 4TNV98T Weichai WP4.1
Engine Power kW (HP) 36.8 (49.3) 50.2 (67.3) 61.3 (82.2) 74.9 (100.4)
Rated Speed rpm 2500 2400 2500 2400
Cooling Type — Liquid Liquid Liquid Liquid
Emission Standard — Stage III Stage III Stage III Stage III
Control System — Pilot Hydraulic + Electronic Pilot Hydraulic + Electronic Pilot Hydraulic + Electronic Pilot Hydraulic + Electronic
Tire Size — 10-16.5 10-16.5 12-16.5 12-16.5
Maximum Travel Speed km/h 14.3 13.5 12.5 11
Maximum Operating Height mm 3878 3878 4180 4180
Bucket Hinge Pin Height mm 3057 3057 3205 3205
Cabin Height mm 1950 1950 1960 1960
Maximum Bucket Bottom Height mm 2851 2851 2997 2997
Length Without Bucket mm 2533 2533 2660 3050
Length With Bucket mm 3320 3320 3610 3750
Maximum Dumping Height mm 2375 2375 2450 2450
Dumping Reach mm 575 575 570 570
Wheelbase mm 1027 1027 1188 1320
Ground Clearance mm 185 185 205 205
Turning Radius (Without Bucket) mm 1183 1183 1320 1370
Turning Radius (With Bucket) mm 2066 2066 2230 2230
Rear Turning Radius mm 1564 1564 1715 1840
Wheel Track mm 1380 1380 1500 1500
Bucket Width mm 1800 1800 2000 2000
Bucket Capacity m³ 0.45 0.45 0.6 0.6
Fuel Tank Capacity L 80 80 95 108
Hydraulic Oil Tank L 60 60 70 80

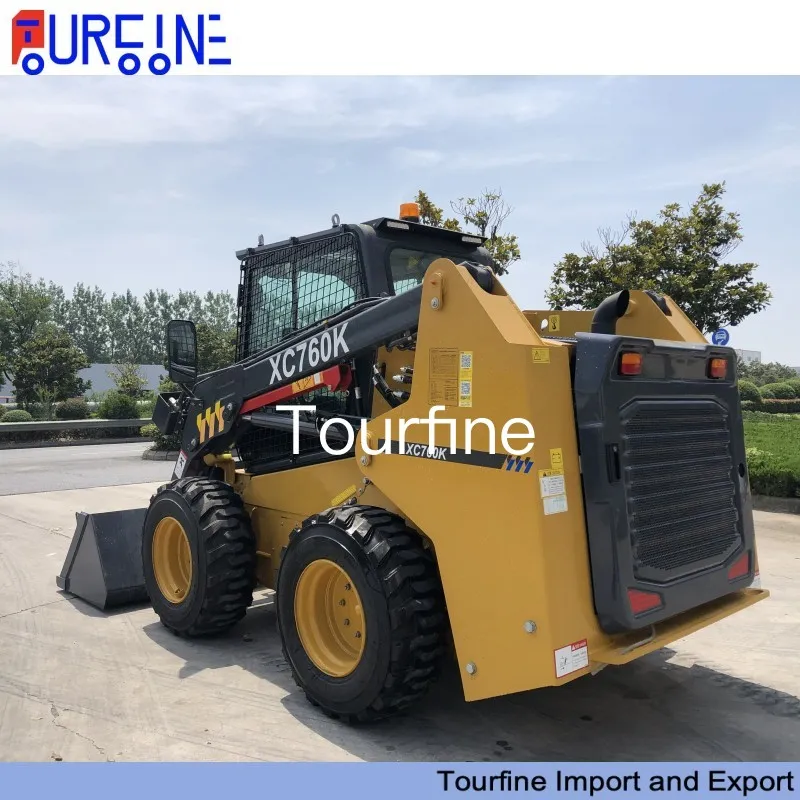

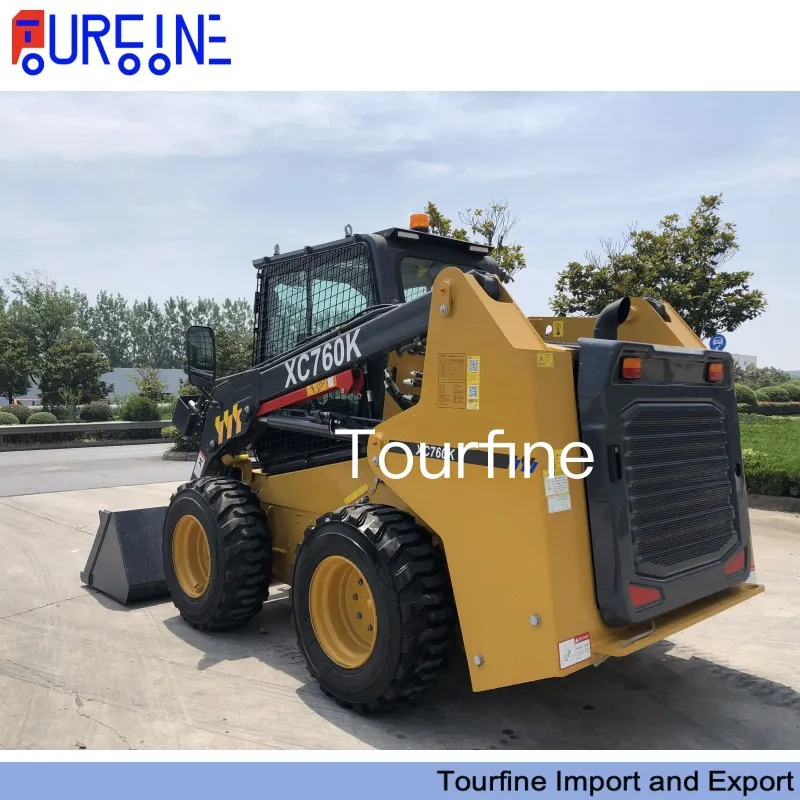

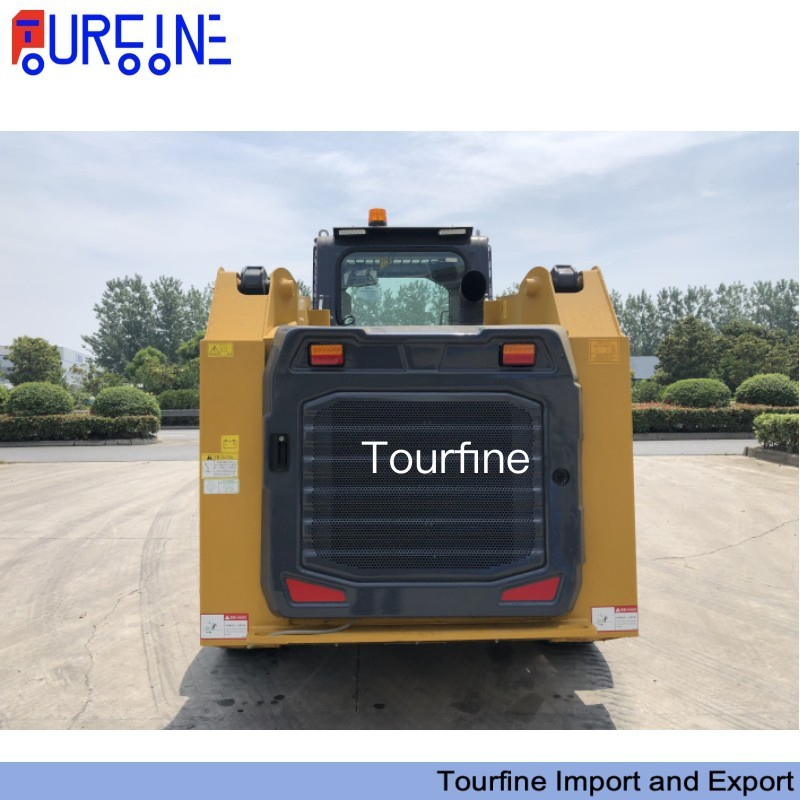

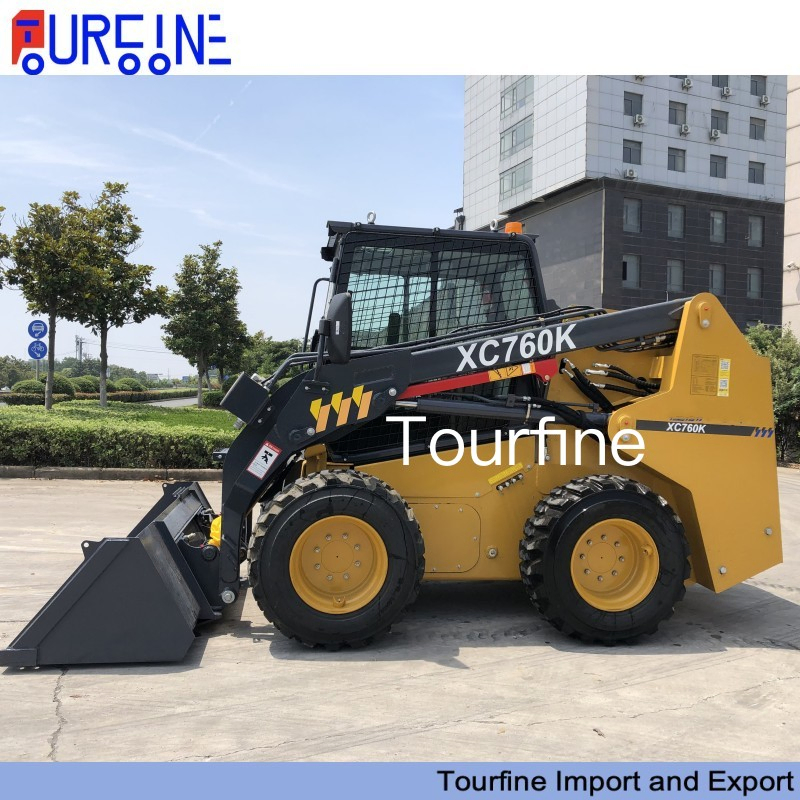

Detailed Photos

XCMG XC760K Skid Steer Loader with 4-in-1 Bucket for Material Handling


XCMG XC760K Skid Steer Loader with 4-in-1 Bucket for Material HandlingXCMG XC760K Skid Steer Loader with 4-in-1 Bucket for Material HandlingXCMG XC760K Skid Steer Loader with 4-in-1 Bucket for Material Handling
  1. Q: What is the minimum order quantity (MOQ)?
    A: Our MOQ is one unit.
  2. Q: What are your payment terms?
    A: We accept payment through T/T or LC.
  3. Q: What after-sales services do you provide?
    A: We offer technical support and provide spare parts to ensure the long lifespan of our products. Spare parts can be delivered via DHL, ***, UPS, or FedEx.
  4. Q: What shipping methods do you use?
    A: We use container, flat rack container, Roro vessel, and bulk vessel for shipping.
  5. Q: How long does delivery take?
    A: Delivery time ranges from 7 to 30 days after receiving the deposit.
  6. Q: Can you accommodate special requirements?
    A: Absolutely! We can manufacture trailers and trucks according to your specific requirements.
  7. Q: Do you offer high-quality spare parts?
    A: Yes, we provide good quality spare parts.


Packaging & Shipping

XCMG XC760K Skid Steer Loader with 4-in-1 Bucket for Material Handling
Successful Case

XCMG XC760K Skid Steer Loader with 4-in-1 Bucket for Material Handling
