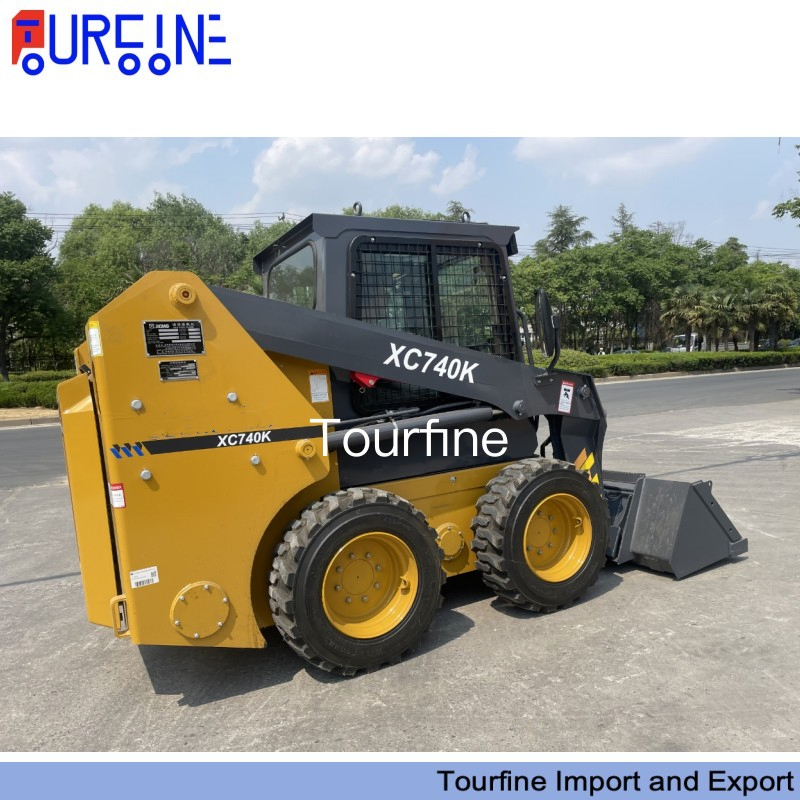

XCMG XC740K Skid Steer Loader with 0.75 Ton Rated Load
The XCMG XC740K Skid Steer Loader is a compact and versatile machine designed for construction, agriculture, landscaping, and material handling applications. With a 0.75 ton rated operating capacity, it delivers excellent performance in confined working environments while maintaining high productivity.
Powered by a reliable engine and equipped with a durable hydraulic system, the XC740K skid steer loader offers efficient lifting, loading, digging, and material transport. Its compact design provides outstanding maneuverability, while the quick coupler allows fast attachment changes for buckets, forks, sweepers, augers, and other implements. Built with a reinforced frame, comfortable operator cab, and advanced safety features, this compact skid steer loader helps improve operational efficiency and reduce maintenance costs across a wide range of industries.
| Description | Unit | Parameter value | |
| Rated load | kg | 750 | |
| Tipping load | kg | 1500 | |
| Operating weight | kg | 3140 | |
| Maximum breakout force | kN | 18 | |
| Engine | Manufacturer | Xinchai | |
| Model | 4D27G31 | ||
| Rated power | Hp/kw | 49.3/36.8 | |
| Rated speed | rpm | 2500 | |
| Cooling mode | Water-cooling | ||
| Performance parameter | Operation mode | Mechanical & multi-function electronic control | |
| Tire standard | 10-16.5 | ||
| Maximum speed | Km/h | 14 | |
| Hydraulic system | Hydraulic flow rate | L/min | 62.5 |
| Optional large flow | -- | ||
| Hydraulic pressure | bar | 200 | |
| Maximum operating height | mm | 3878 | |
| Bucket hinge pin height | mm | 3057 | |
| Cabin top height | mm | 1960 | |
| Maximum horizontal height of bucket bottom | mm | 2851 | |
| Length without bucket | mm | 2533 | |
| Length with bucket | mm | 3310 | |
| Toppling angle | ° | 40 | |
| Maximum unloading height | mm | 2375 | |
| Ground-bucket angle | ° | 30 | |
| Rotating angle of bucket at highest point | ° | 83 | |
| Unloading distance | mm | 575 | |
| Wheel base | mm | 1027 | |
| Departure angle | ° | 25 | |
| Ground clearance | mm | 183 | |
| Front radius of turning circle (without bucket ) | mm | 1183 | |
| Front radius of turning circle (with bucket) | mm | 2066 | |
| Rear radius of turning circle | mm | 1564 | |
| Length of tail | mm | 1005 | |
| Wheel track | mm | 1380 | |
| Tire edge width | mm | 1640 | |
| Bucket edge width | mm | 1800 | |
| Bucket capacity (stacking height) | m³ | 0.45 | |
| Bucket capacity (tiling) | m³ | 0.35 | |
| Diesel tank capacity | L | 80 | |
| Capacity of hydraulic oil tank | L | 60 | |



For more information, please contact Beijing Tourfine Import and Export Co. Ltd.
