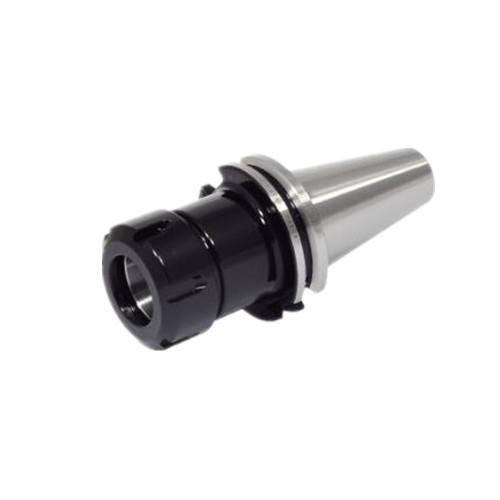

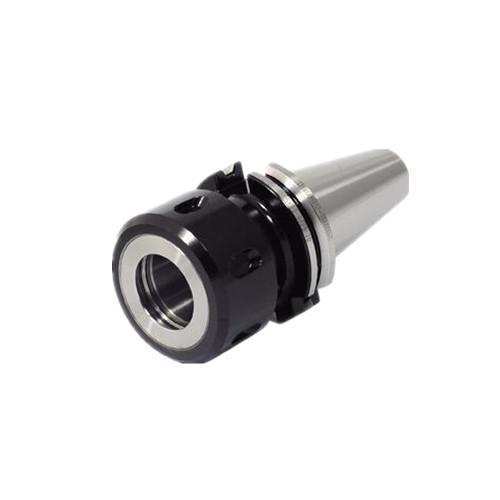

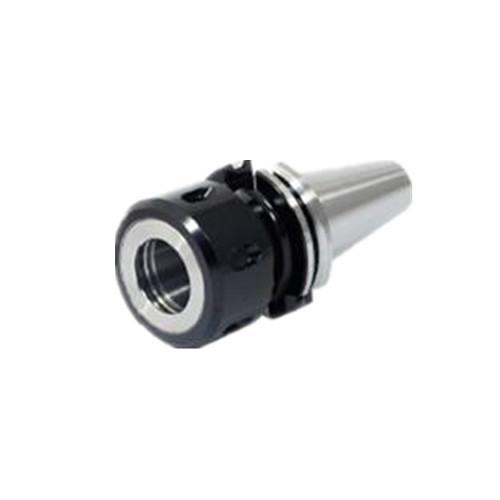

CATEE50 High Precision Collet Chuck OZ25 3/8-1-1/2 4.76'' DIN2080

Brief introduction

DIN6391 CATEE OZ Collet Chuck, DIN6388 OZ collet clamping straight shank tools of various sizes, high speed and high precision machining.Mechanical spindle and cutting tools and other accessories.High Precision CATEE shank Tool Holder ,balanced G6.3 or G2.5 For choose.

CATEE Tool Holders for mechanical spindle and cutting tool and other accessory tool connection. Is a simple, popular spindle shank connection standard, mainly CT30 CT40 CT50... Etc.. Mold industry, and high-speed engraving machine, used more.

SpecifiCATEEions

Materail: 20CrMnTi

Hardness: HRC 56-58
Max run out: <0.005mm
Taper tolerance:<AT3
Carbon depth: 0.8mm±0.2mm
Surface Roughness: Ra<0.005mmThe effective length of the handle (Length): 2.76 "
The maximum speed (RPM): 24000-30000 rpm.
The handle body precision (T.I.R.): 0.005mm
Fit spring chuck (Collet Adapter): ER16
Clamp range (Range): 1-10mm
Spring collet precision (T.I.R.): 0.015 / 0.01 /0.008 mm optional
Fit shaft connecting rod (PULL STUD): CATEE40
And the main point of agreement (Angle): 30 degrees / 45 degrees /90 degrees optional
The surface hardness (HRC): the surface carburizing hardening (52HRC) or conventional treatment (44-48 HRC) optional

When Order, please specify balancing G6.3 or G2.5
Shank body standard: DIN2080

CATEE OZ collet chuck is a type of tool holder used in machining operations. It is designed to securely hold cutting tools, such as drills or end mills, in place during the machining process. The CATEE OZ collet chuck is specifically designed to fit the CATEE (V-Flange) spindle taper, which is commonly found on CNC milling machines. It utilizes a collet system to clamp the cutting tool in place, providing a rigid and accurate connection between the tool and the machine spindle. The OZ designation refers to the type of collet used, with OZ collets being a popular choice for high precision machining appliCATEEions.

Products advantages

1. The unique design of nut: high speed cutting, reduce drag and cutting noise and improve work efficiency,Balance for G2.5 30000rpm. G6.3 12000rpm.
2. General purpose high speed, high precision machining, cutting effect is good.
3. special coating surface treatment,improve the hardness and endurance of the surface,cleaness better,accuracy stable,surface
4. higher system accuracy.
5. High hardness, toughness and wear resisance, High thermo stability and high heat resistance
